When Ignition Key Is Turned On (Engine Off), the ABS Warning Lamp Does Not Light Up

5. WHEN IGNITION KEY IS TURNED ON (ENGINE OFF), THE ABS WARNING LAMP DOES NOT LIGHT UP

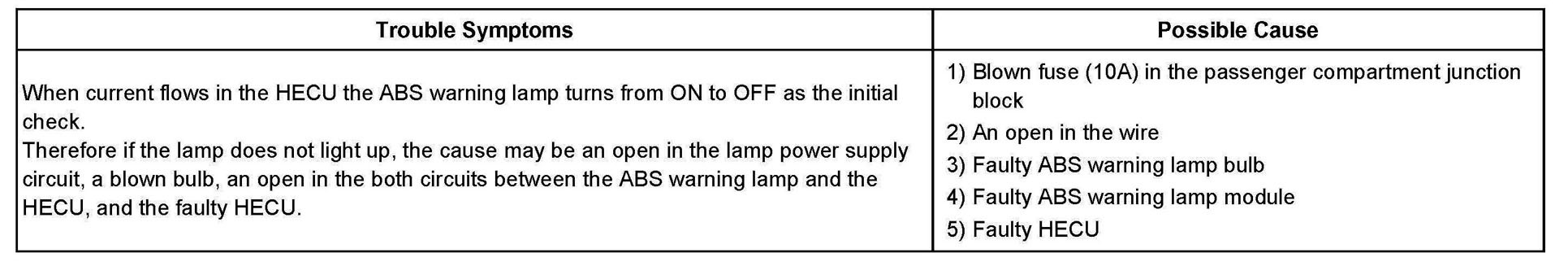

DETECTING CONDITION:

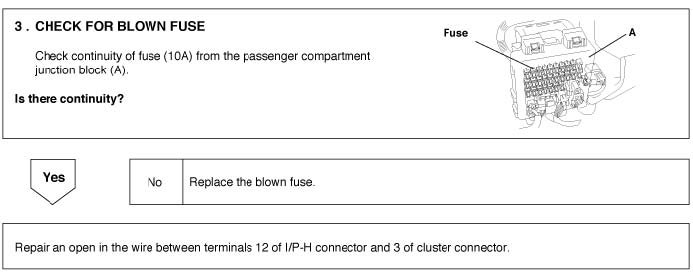

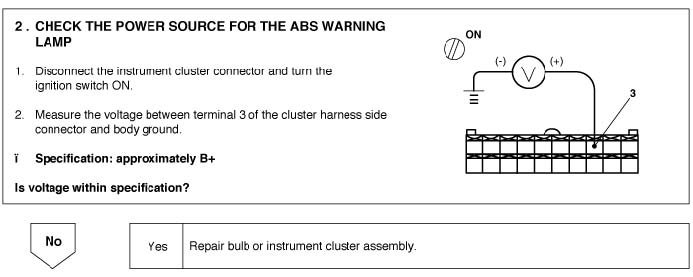

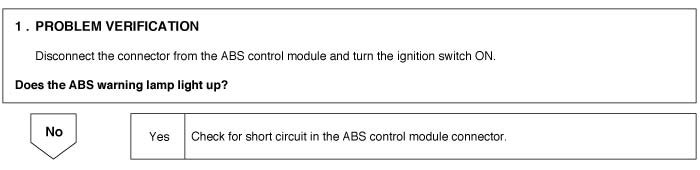

INSPECTION PROCEDURES
