Power Mirror Switch: Testing and Inspection
Power Outside Mirror SwitchINSPECTION

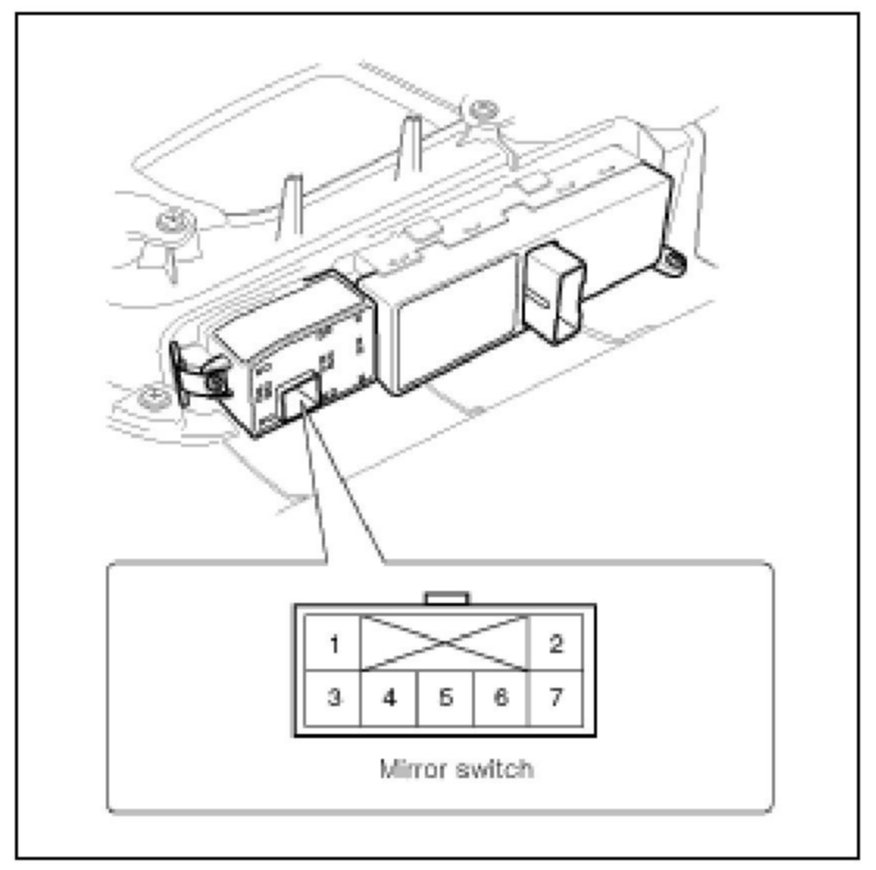

1. Remove the power door mirror switch from the door trim panel.

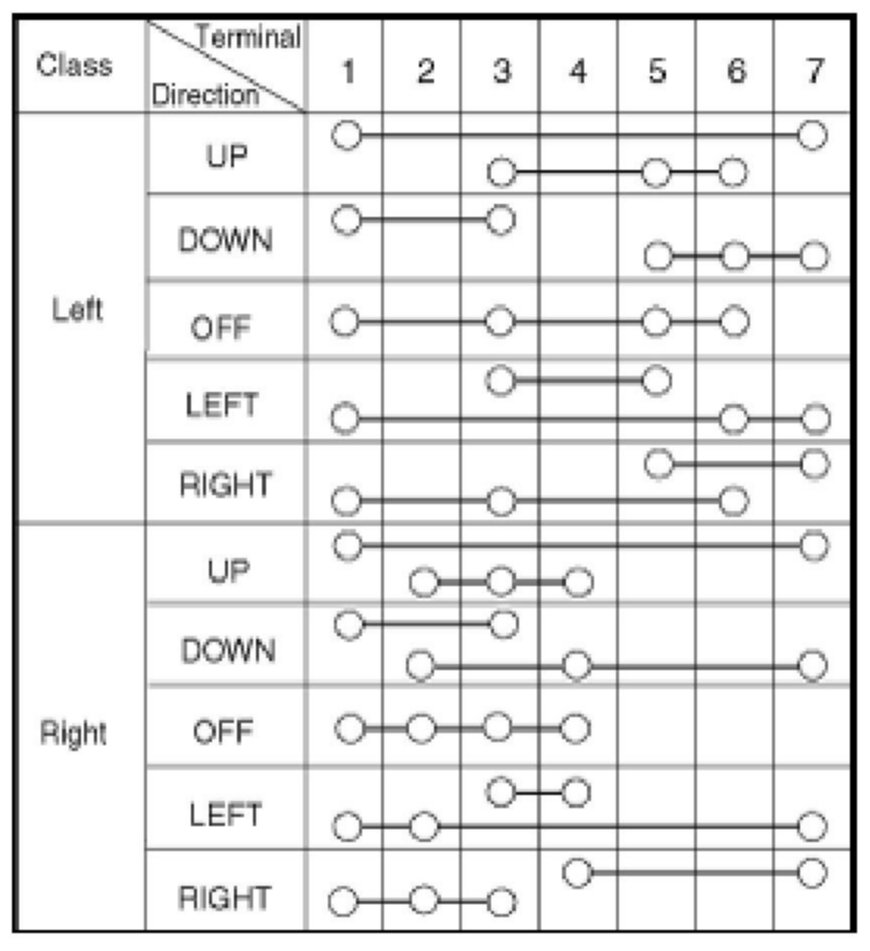

2. Check for continuity between the terminals in each switch position according to the table.
INSPECTION
1. Remove the power door mirror switch from the door trim panel.
2. Check for continuity between the terminals in each switch position according to the table.
