Removal and Replacement

REMOVAL AND INSTALLATION




1. Remove door quadrant inner cover from door frame.
2. Remove outside rear view mirror.

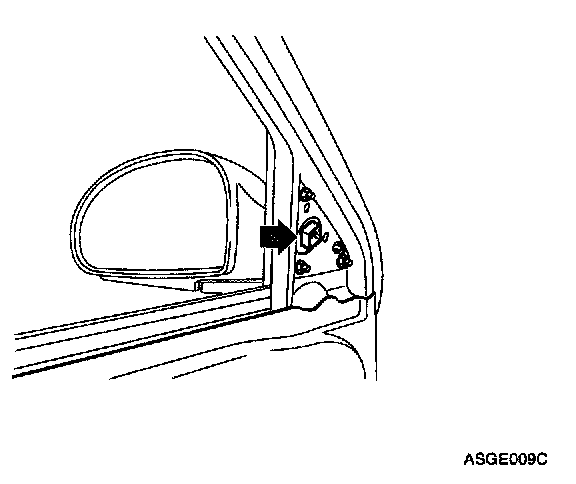

1. Disconnect actuator connector.

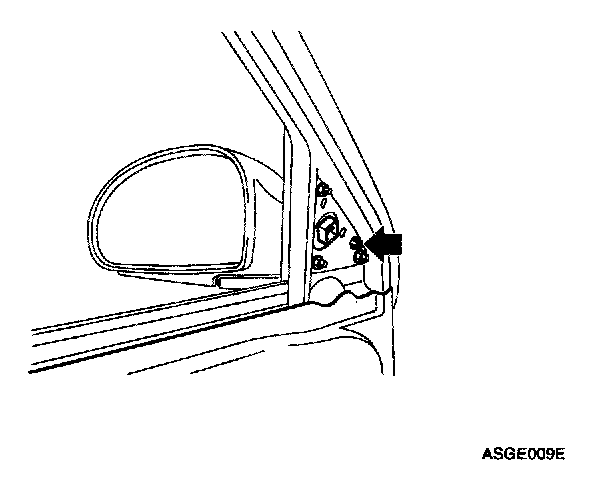

2. Remove nuts(3).

Tightening torque : 7 - 11 Nm (0.7 - 1.1 kg.m, 5 - 8 lb - ft)




3. Push the both sides of the clip and remove outside rearview mirror from door frame.

3. Install in reverse order of removal.
