Home >> Kia >> 2006 >> Spectra L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Tweeter Speaker

Tweeter Speaker

REMOVAL

TWEETER SPEAKER
1. Remove the front door trim panel.

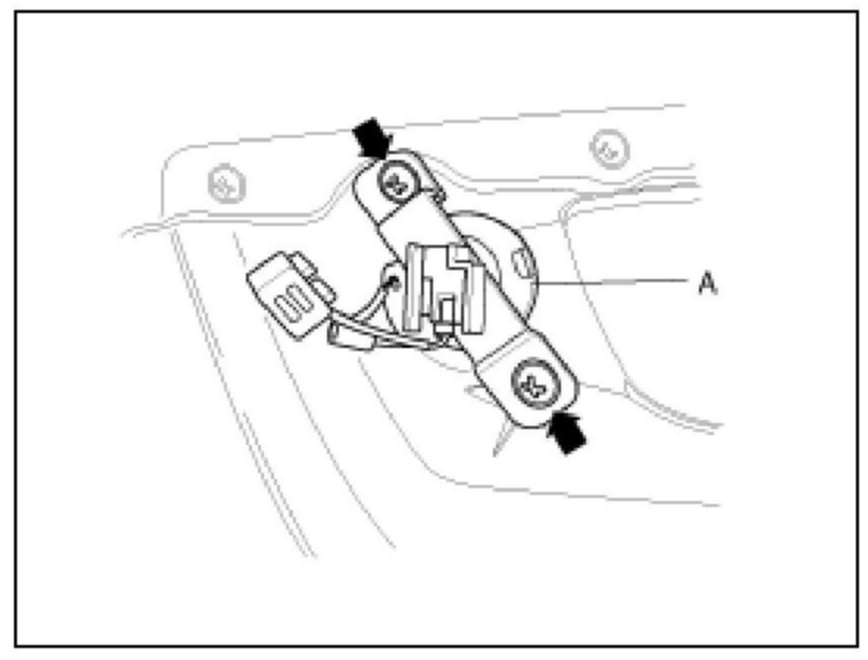

2. Remove the tweeter speaker (A) after removing 2 screws.
3. Installation is the reverse of removal.
