Home >> Kia >> 2006 >> Spectra L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Front Speaker

Front Speaker

REMOVAL

FRONT SPEAKER
1. Remove the front door trim panel.

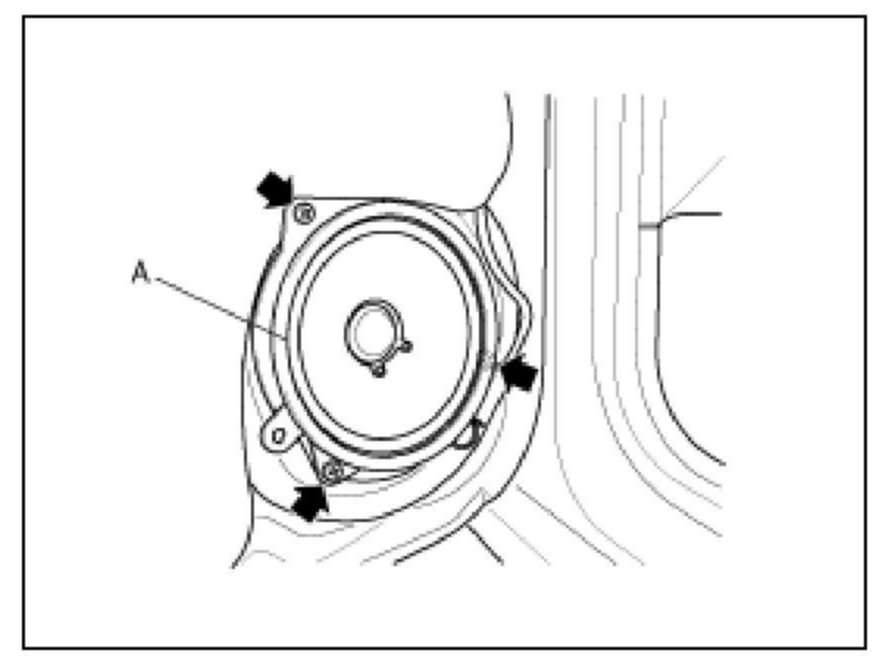

2. Remove the front speaker (A) after removing 3 screws.
3. Installation is the reverse of removal.
