Door Warning Switch

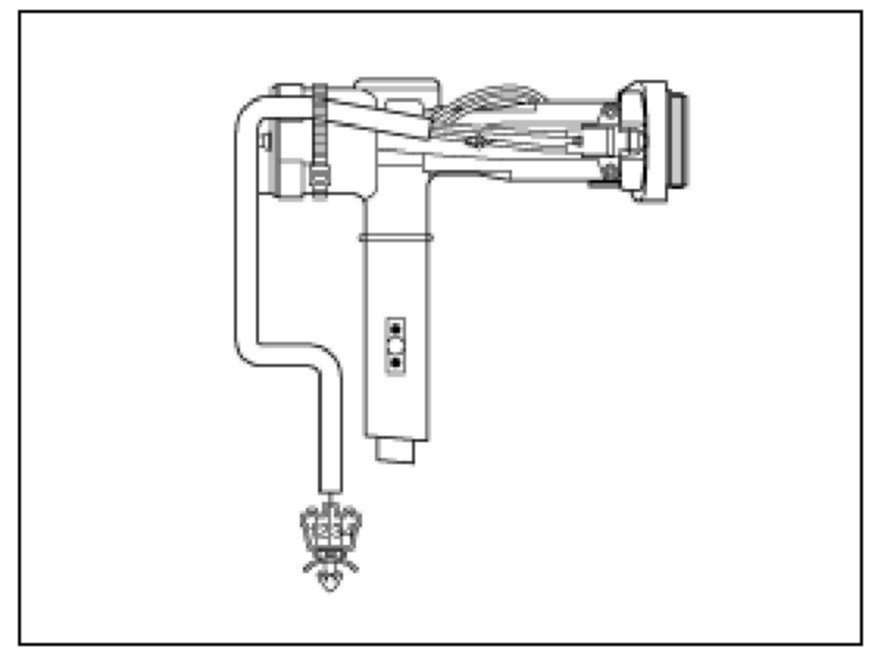

DOOR WARNING SWITCH INSPECTION
1. Remove the driver's crash pad lower panel.
2. Disconnect the 4P connector from the door warning switch

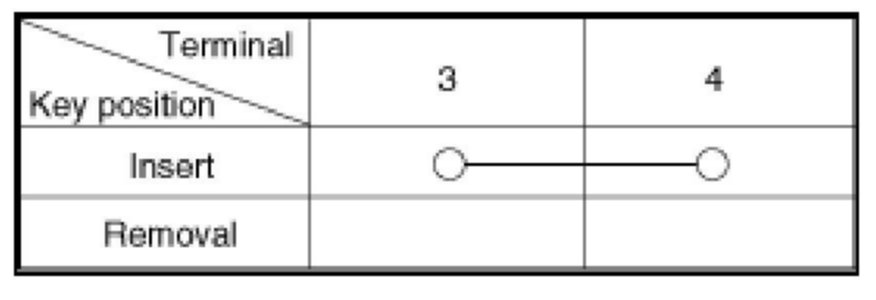

3. Check continuity between the terminals in each position according to the table.
1. Remove the driver's crash pad lower panel.
2. Disconnect the 4P connector from the door warning switch
3. Check continuity between the terminals in each position according to the table.
