B1479

B1475 Curtain Airbag [Driver] Circuit Short to Ground
B1479 Curtain Airbag [Passenger] Circuit Short to Ground

DESCRIPTION
The Curtain Airbag circuit consists of the SRSCM and two Curtain Airbag (CAB). The SRSCM sets above DTC(s) if it detects short to ground on the CAB circuit.

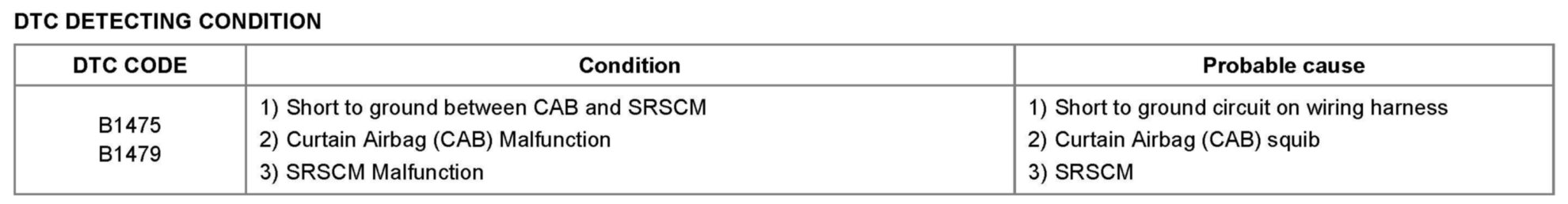

DTC Detecting Condition:

DTC DETECTING CONDITION

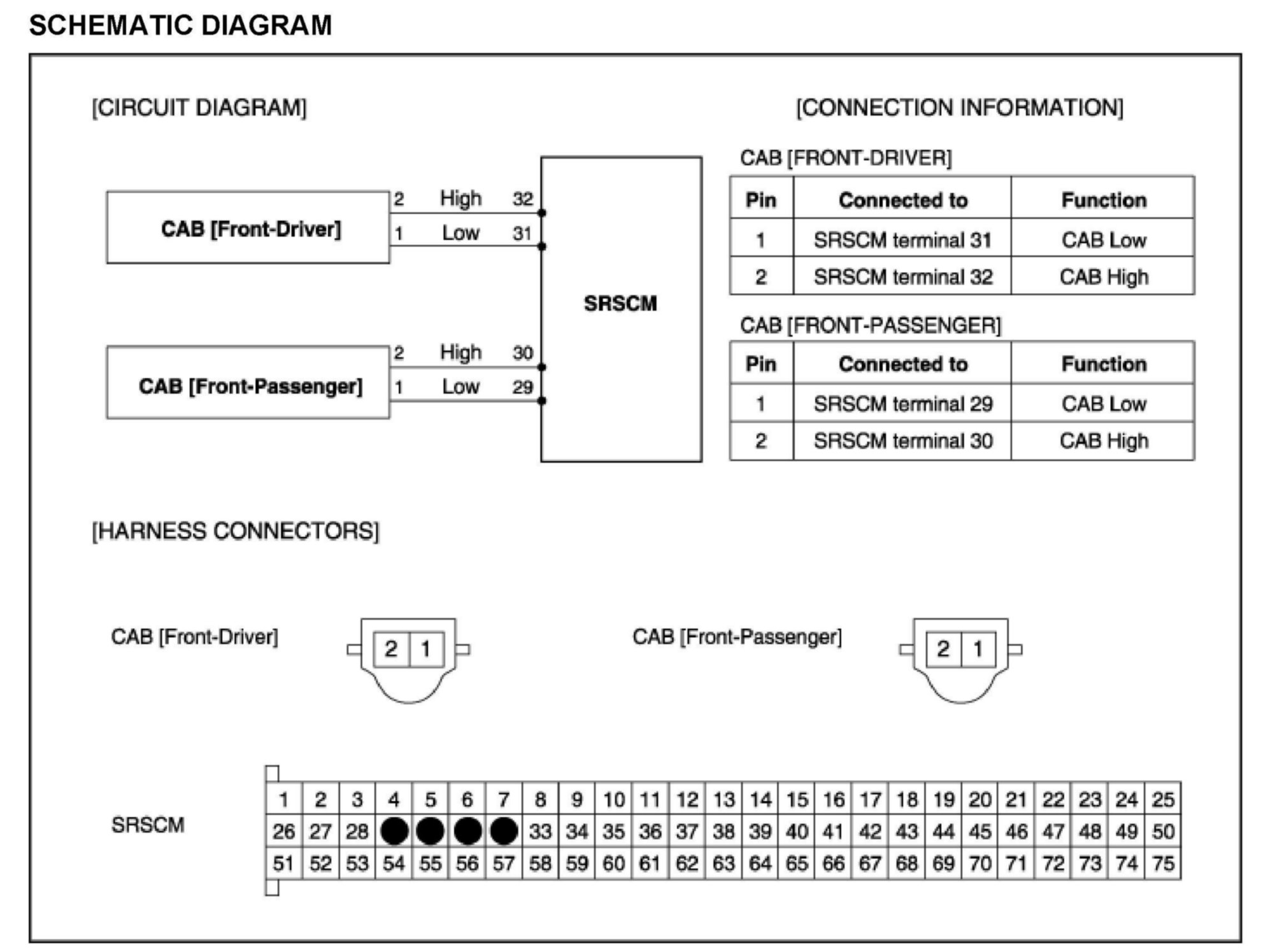

Schematic Diagram:

SCHEMATIC DIAGRAM

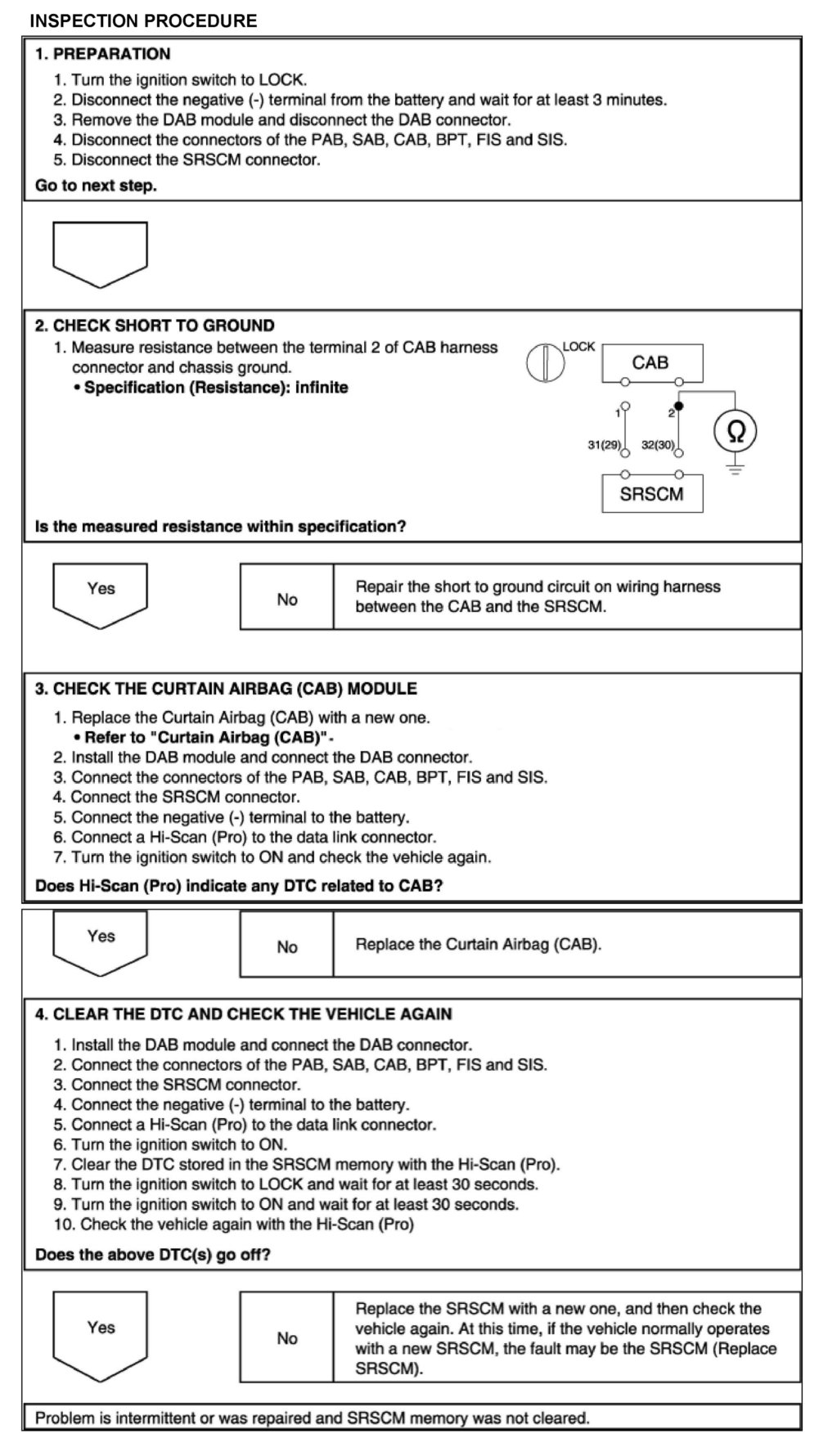

Inspection Procedure:

INSPECTION PROCEDURE
