B1363

B1363 Seat Belt Pretensioner [Front-Driver] Circuit Short to Ground
B1369 Seat Belt Pretensioner [Front-Passenger] Circuit Short to Ground

DESCRIPTION
The Side Airbag circuit consists of the SRSCM and two Seat Belt Pretensioner (BPT). The SRSCM sets above DTC(s) if it detects short to ground on the BPT circuit.

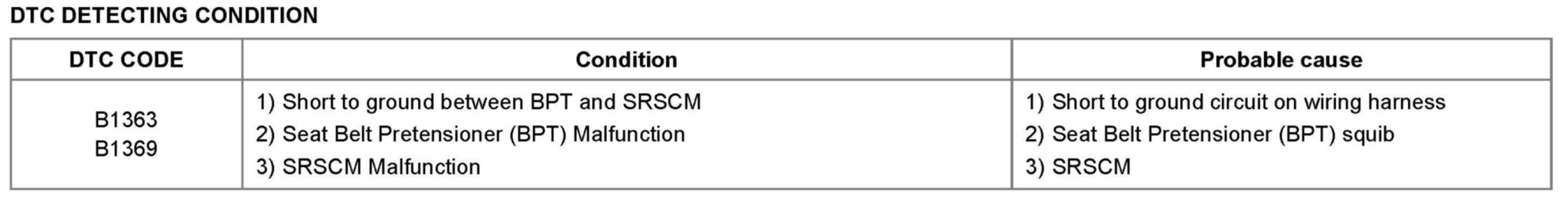

DTC Detecting Condition:

DTC DETECTING CONDITION

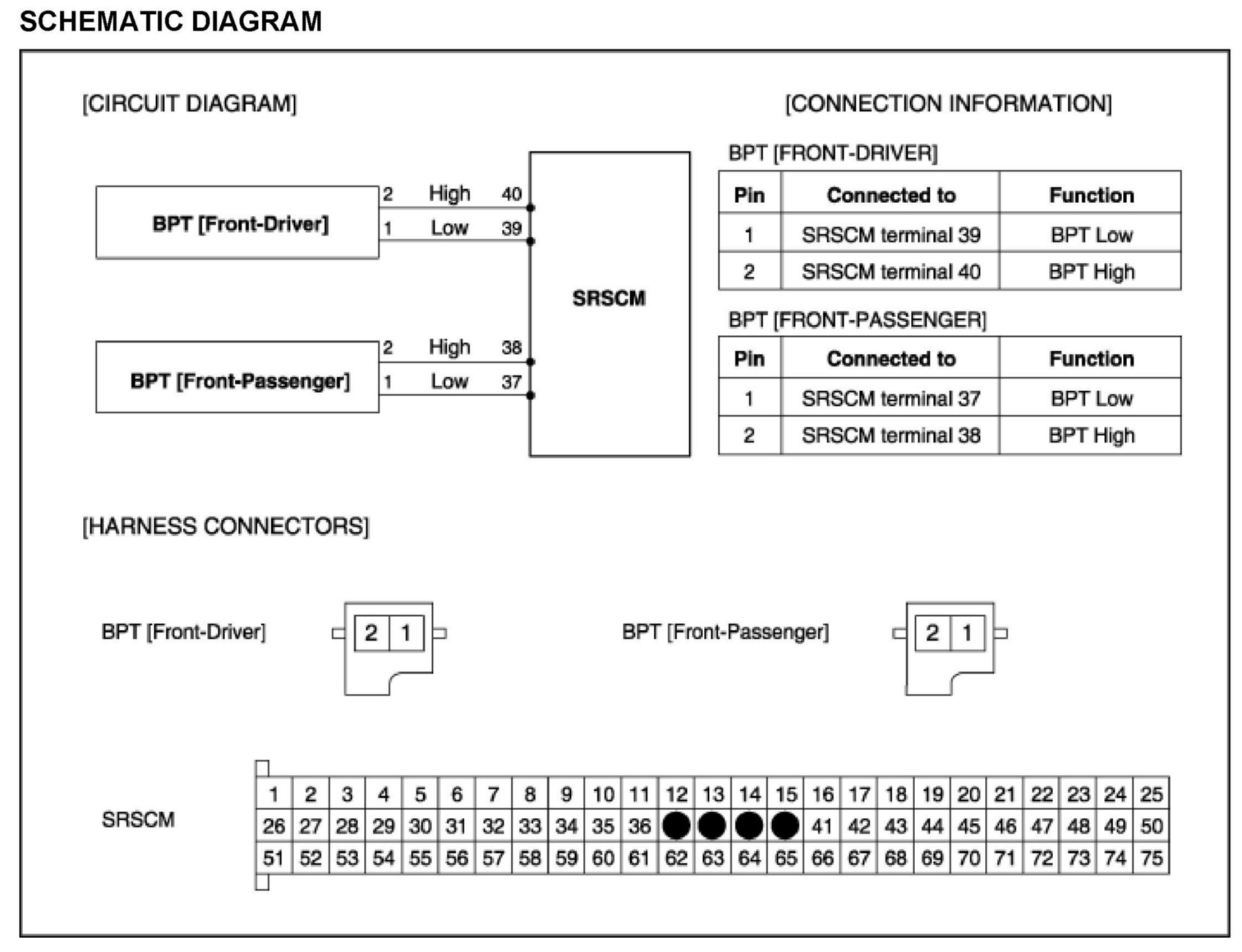

Schematic Diagram:

SCHEMATIC DIAGRAM

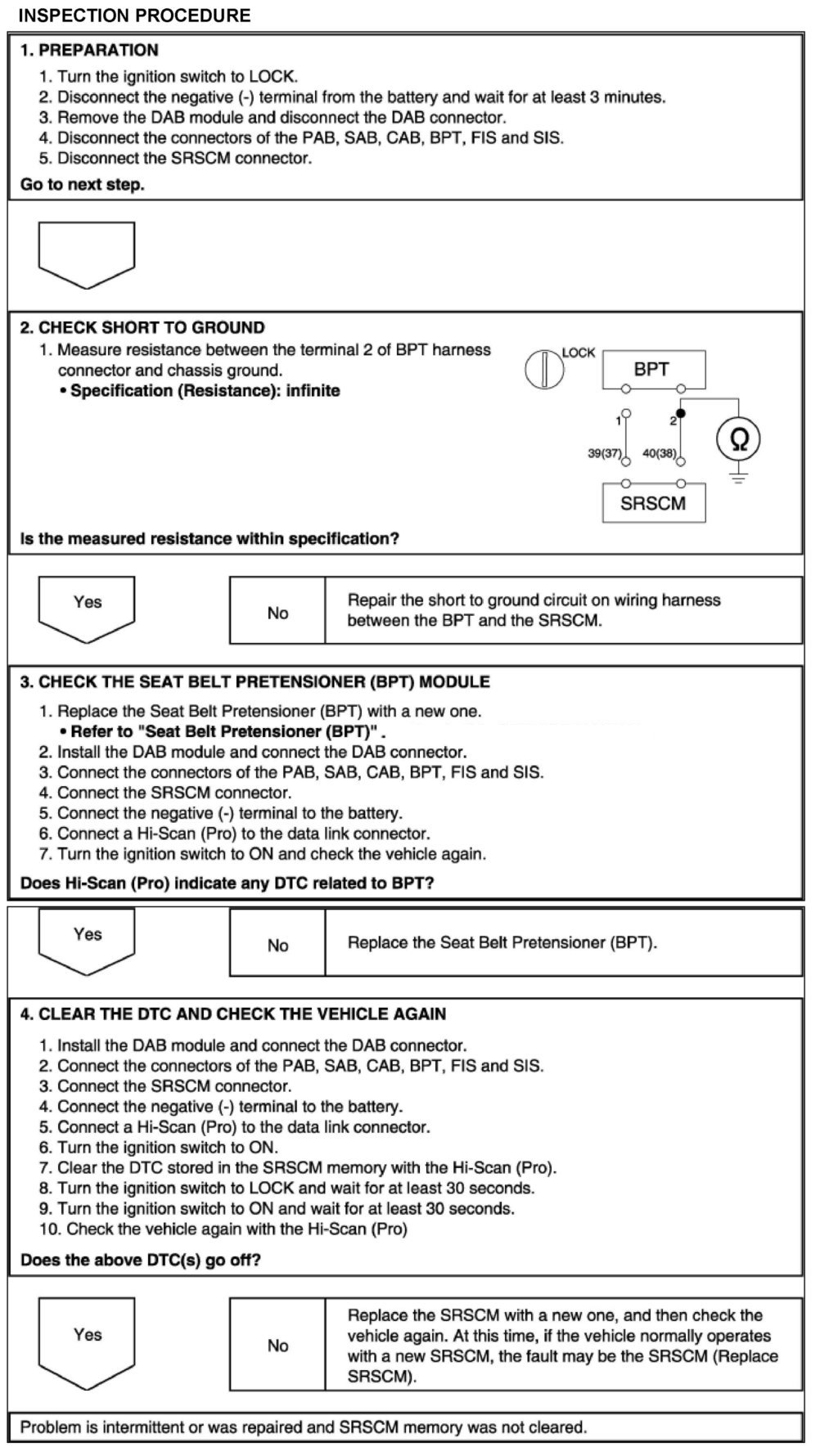

Inspection Procedure:

INSPECTION PROCEDURE
