Window Track: Service and Repair

FRONT DOOR

REAR CHANNEL REPLACEMENT
1. Remove front door trim.

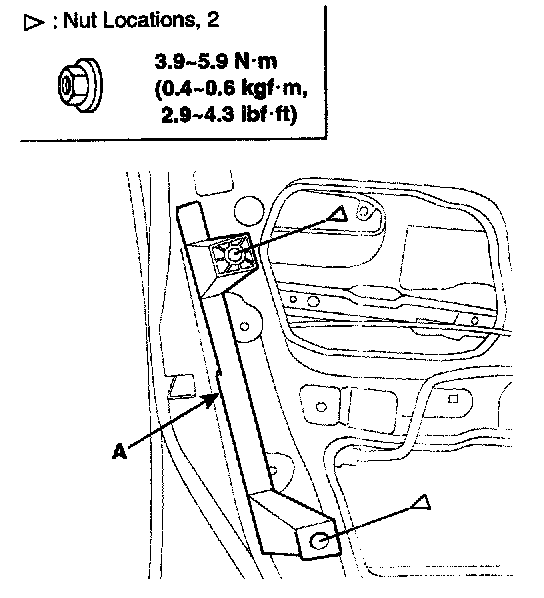

2. Remove the rear channel (A).
3. Installation is the reverse of removal.
