Hood Latch Release Cable: Service and Repair

HOOD LATCH RELEASE CABLE REPLACEMENT
1. Remove the following items.
- Hood latch.
- Hood latch release handle.
- Wheel guard.

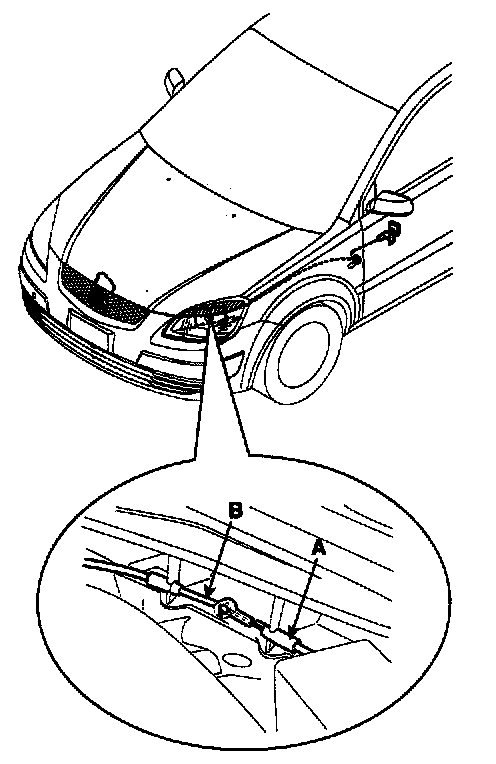

2. Remove the clip, latch cable (A) and then remove the release cable (B).

NOTE: Make sure the hood latch cable is connected.

3. Installation is the reverse of removal.

NOTE
- Make sure the hood latch cable is connected properly.
- Replace any damaged clips.
