Hydraulic Pressure Test
HYDRAULIC PRESSURE TEST1. Warm up the engine until the automatic transaxle fluid temperature is 80 - 100°C (176 - 212°F).
2. Jack up the vehicle so that the wheels are free to turn.
3. Connect the engine tachometer.

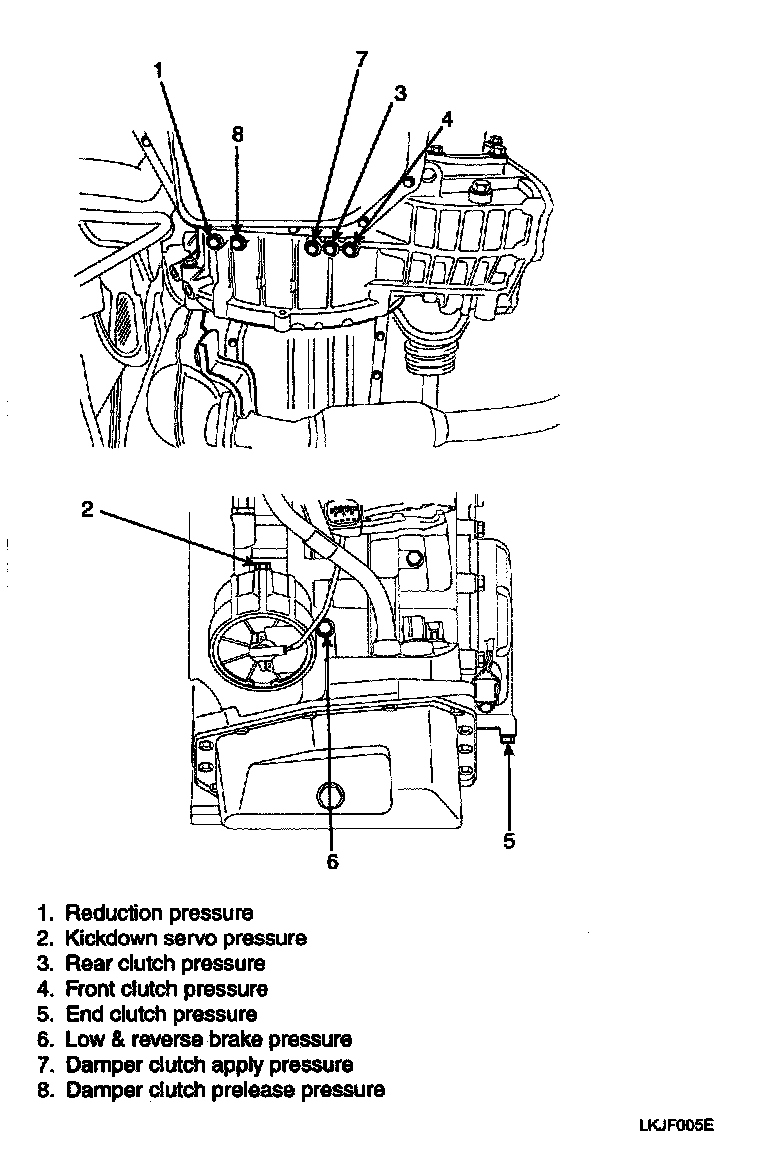

4. Connect the oil pressure gauge (09452-21500) and the oil pressure gauge adapter (09452-21002, 09452-21001) to each pressure discharge port. But use the gauge (30 kg/cm2) when measuring the reverse pres sure, front clutch pressure and low & reverse brake pressure.
5. If a value is outside the standard range, correct the problem while referring to the hydraulic pressure test diagnosis table. Standard Hydraulic Pressure Test
