Rear Wheel Alignment
REAR WHEEL ALIGNMENTTOE-IN
Standard value
Toe-in mm (inch): 2 - 6 (0.078 - 0.236)
CAMBER
Standard value: -1° ± 30'

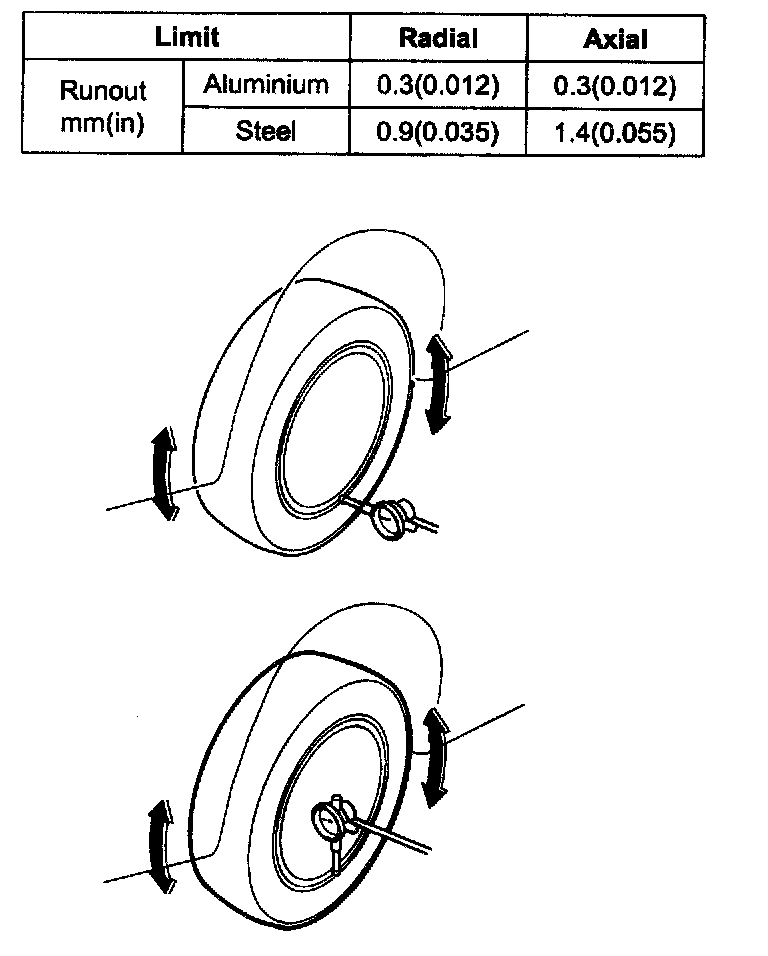

WHEEL RUNOUT
1. Jack up the vehicle and support it with jack stands.
2. Measure the wheel runout with a dial indicator as illustrated.
3. Replace the wheel if the wheel runout exceeds the limit.
WHEEL NUT TIGHTENING
1. Tightening torque.
Tightening torque: 90 - 110 Nm (9 - 11 kgf-m, 65 - 79 ft. lbs.)
CAUTION: When using an impact gun, final tightening torque should be chocked using a torque wrench.

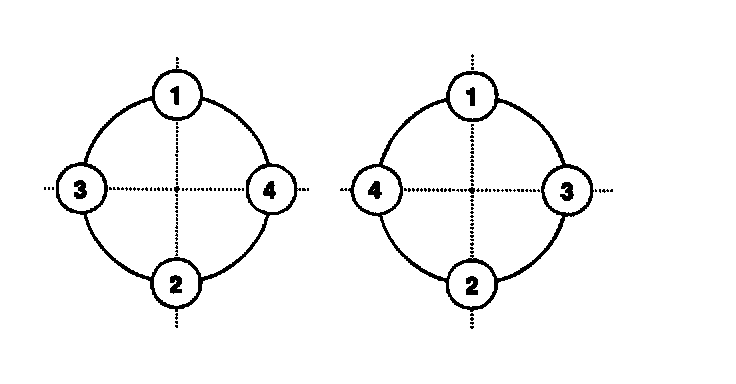

2. Tightening order.
Check the torque again after tightening the wheel nuts diagonally.
