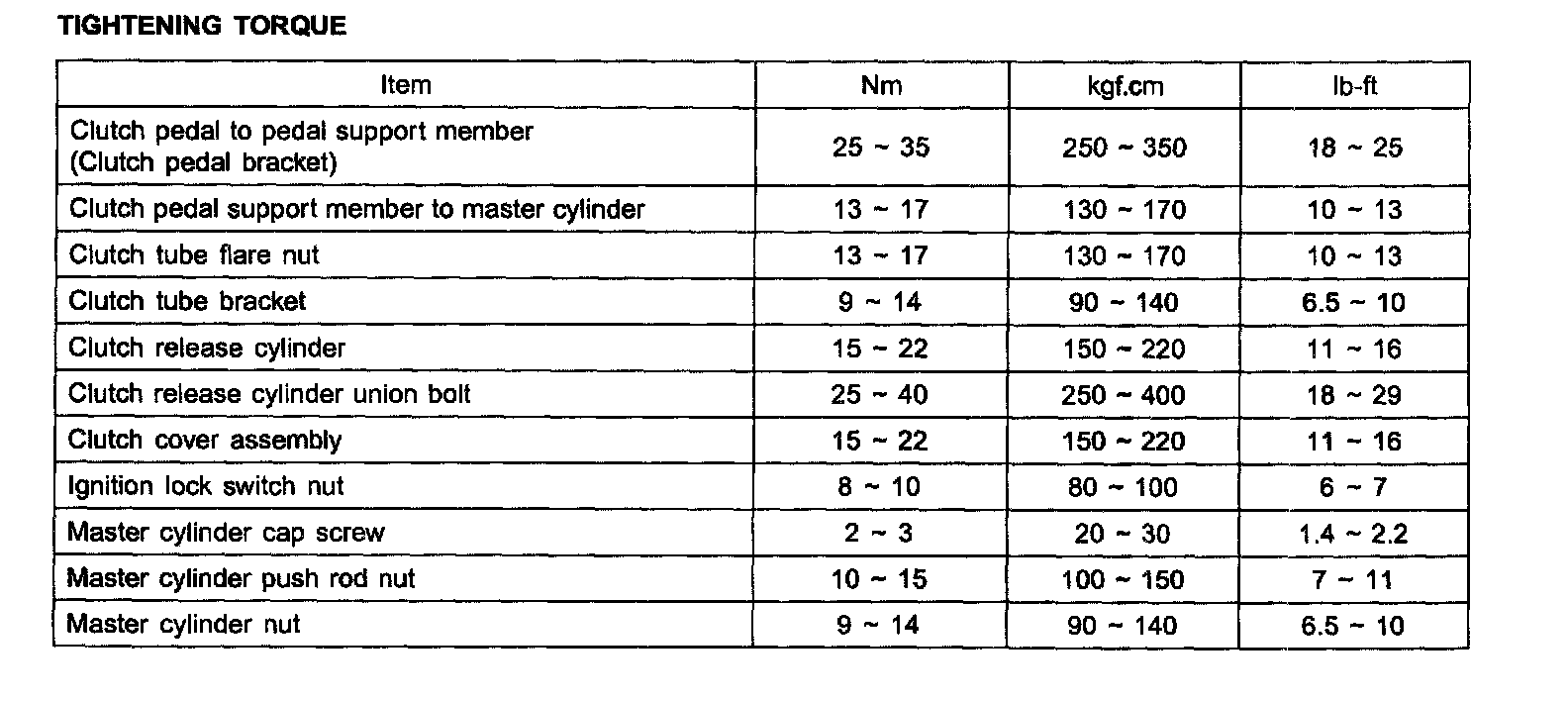

Tightening Torque

Tightening Torque

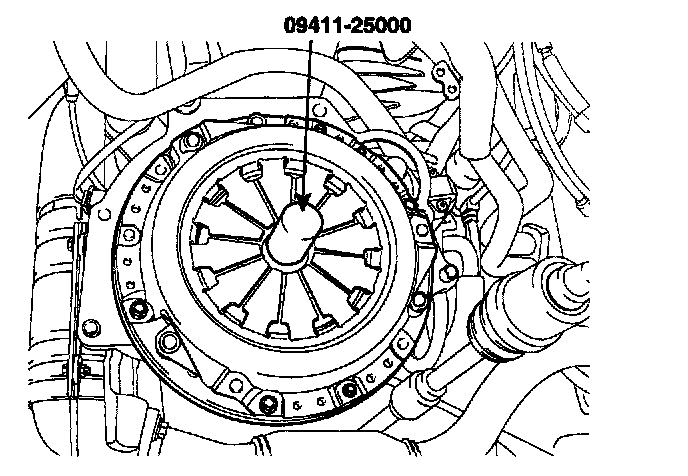

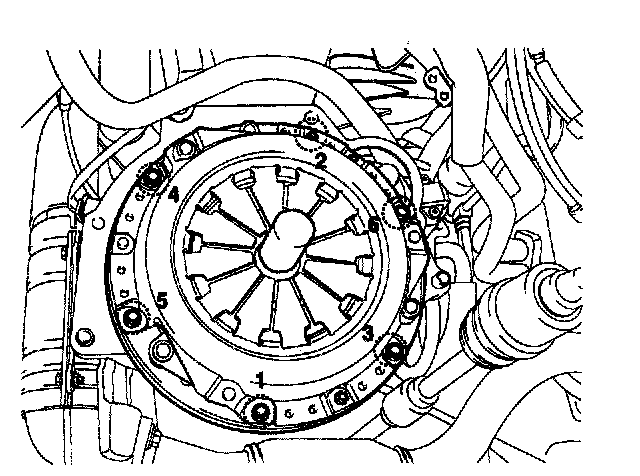

Install the clutch cover assembly to the flywheel and temporarily tighten the bolts one or two steps at a time in a star pattern.
TORQUE
Clutch cover bolt 15 - 22 Nm (150 - 220 kgf-cm, 11 - 16 ft. lbs.)





Install the transaxle assembly to the engine.
