Home >> Kia >> 2006 >> Rio L4-1.6L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams >> Circuit Diagram 2

Circuit Diagram 2

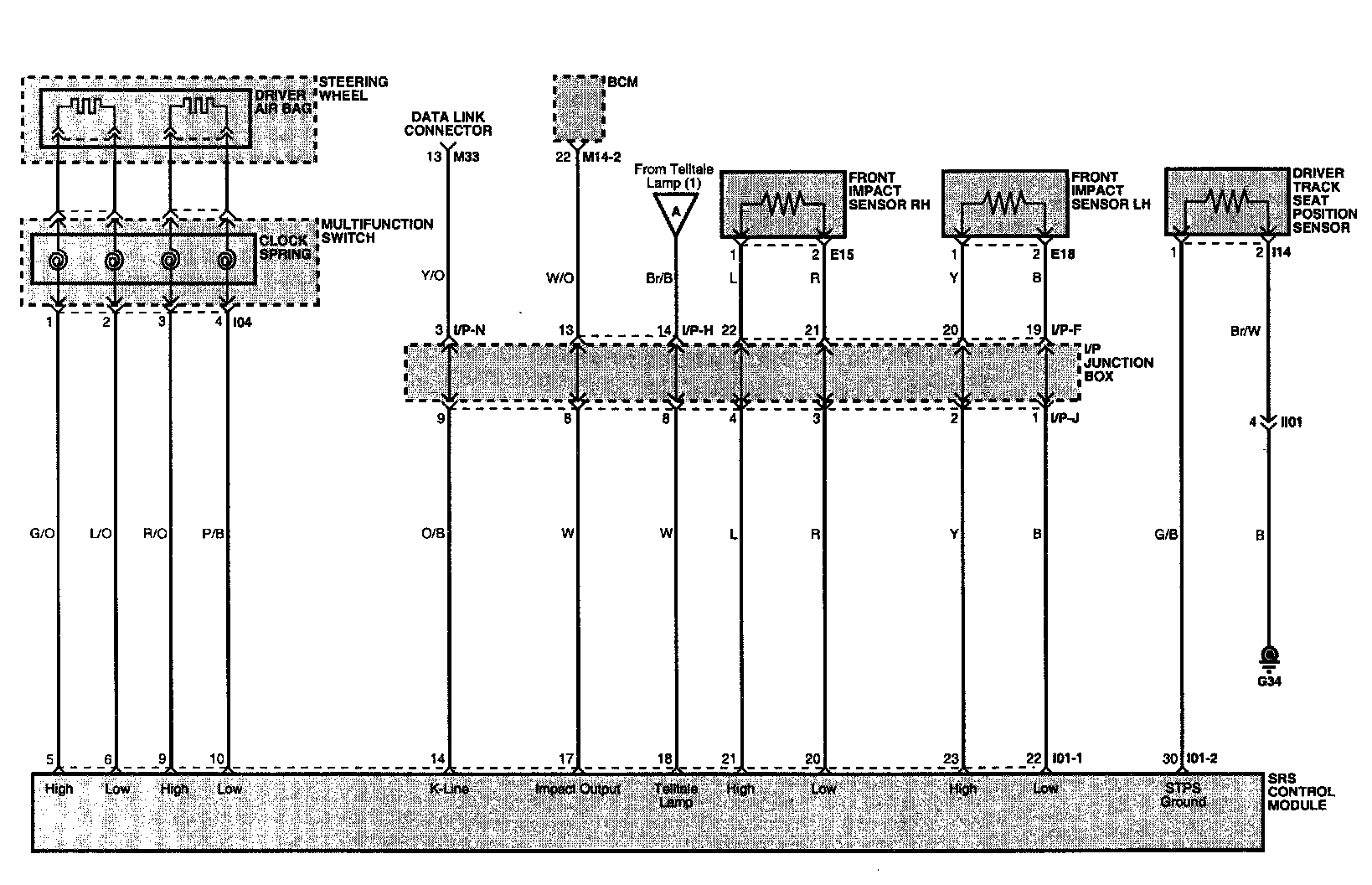

Circuit Diagram (2):
