Horn Relay: Testing and Inspection

HORN RELAY INSPECTION

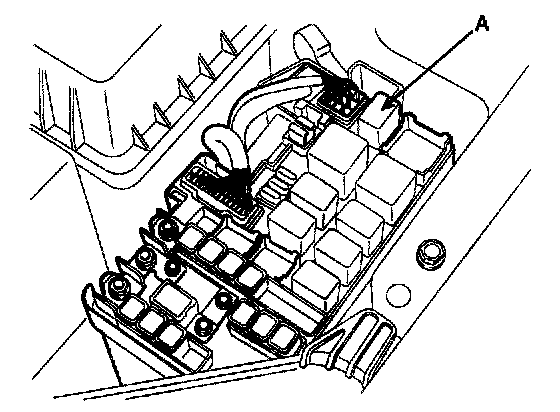

1. Remove the horn relay (A) from the engine room relay box.

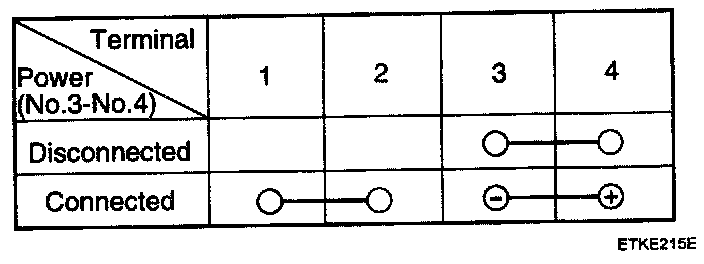

2. There should be continuity between the No. 1 and No. 2 terminals when power and ground are connected to the No. 3 and No. 4 terminals.










3. There should be no continuity between the No. 1 and No. 2 terminals when power is disconnected.
