Home >> Kia >> 2006 >> Rio L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Fuel Pressure >> Testing and Inspection

Fuel Pressure: Testing and Inspection

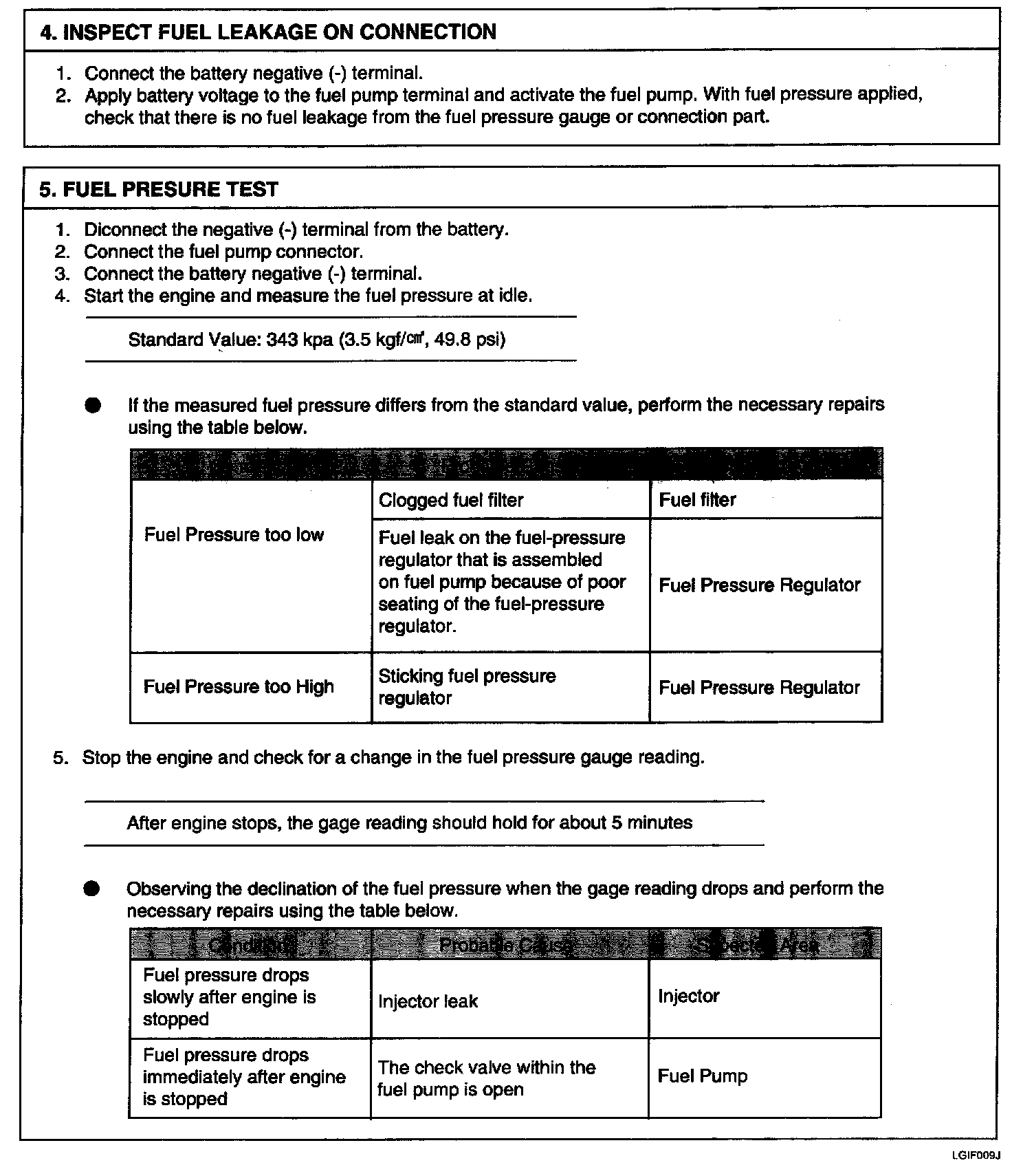

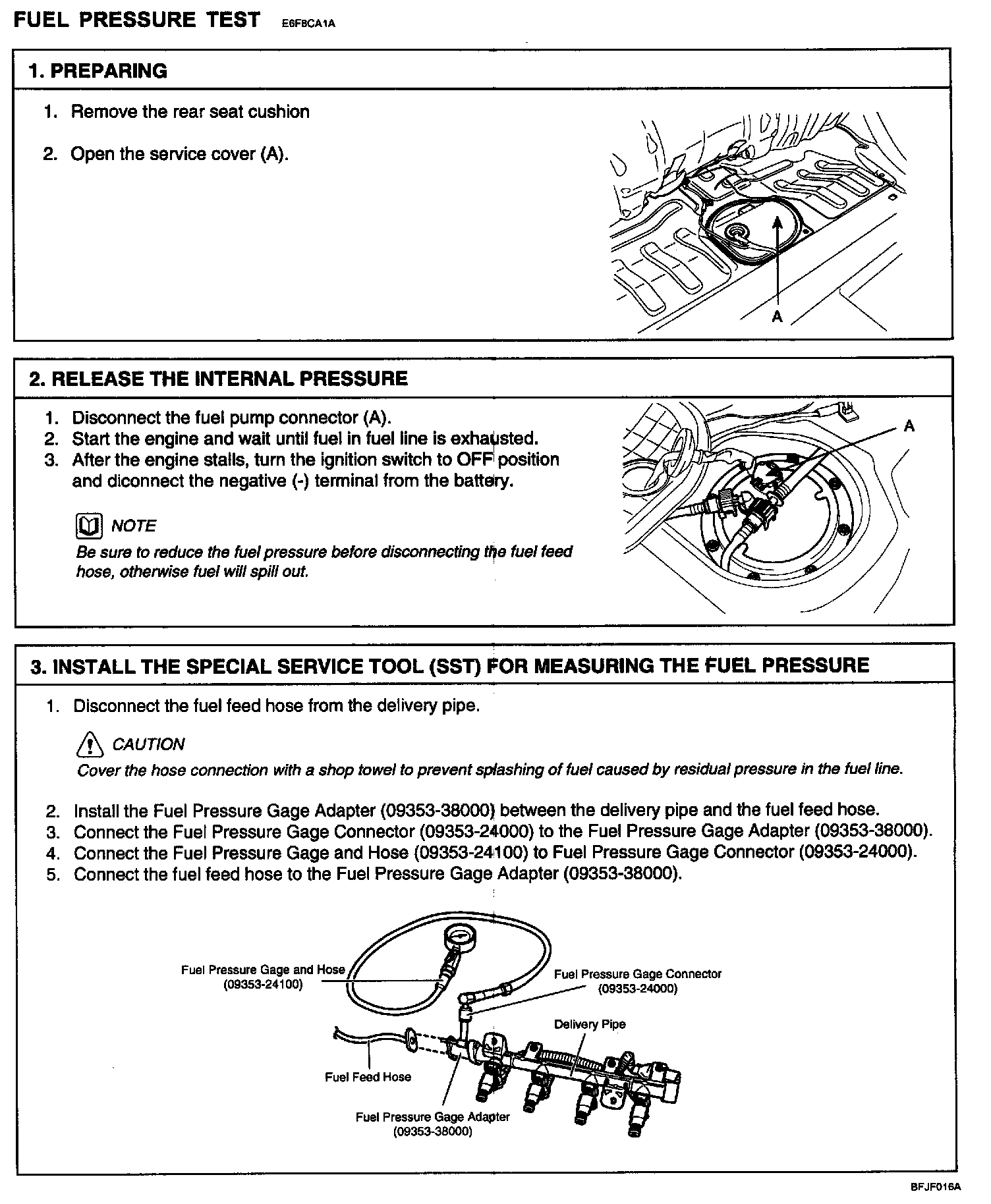

Fuel Pressure Test Part 1:

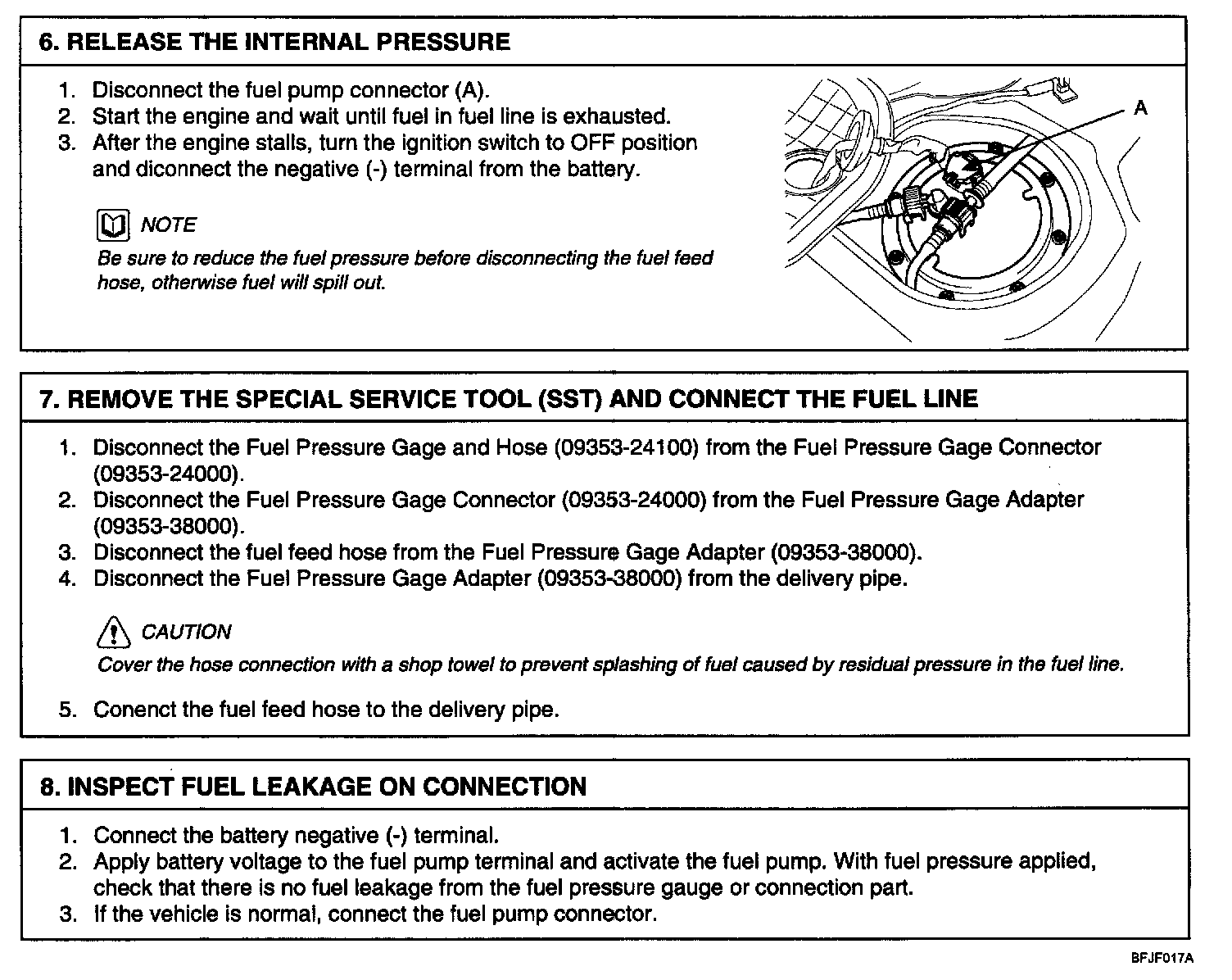

Fuel Pressure Test Part 2:



Fuel Pressure Test Part 3:
