Horn: Service and Repair
HORN
REPLACEMENT
1.
Remove the radiator grill.
2.

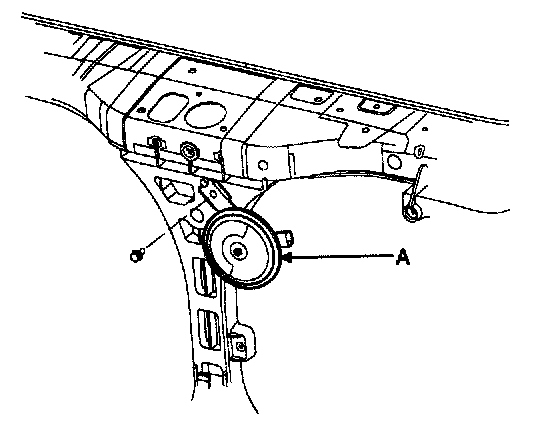

Remove the bolt and disconnect the
horn
connector, then remove the high pitch horn (A).
3.
Installation is the reverse of removal.
