Head Lamp and Fog Lamp Aiming Point

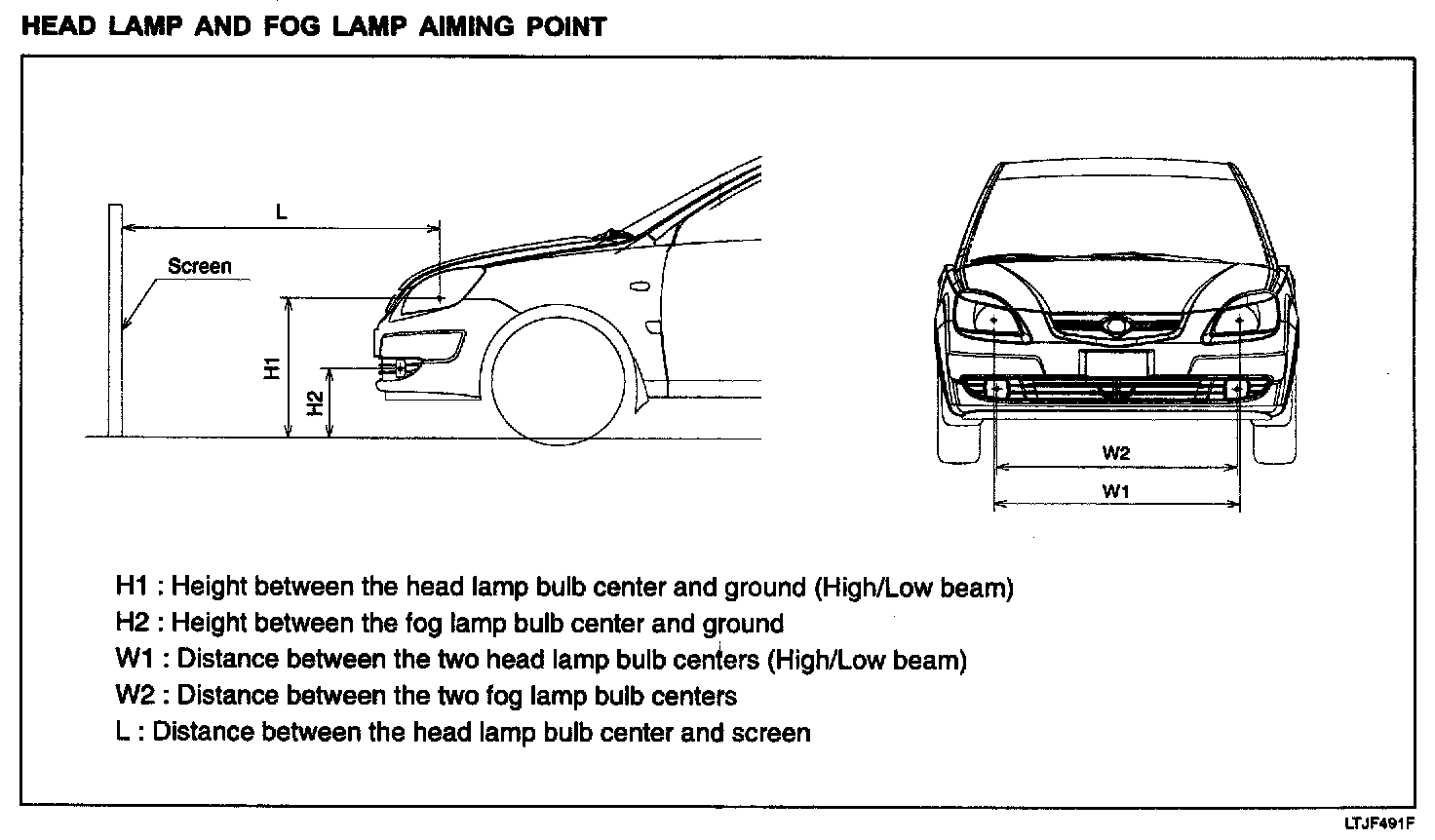

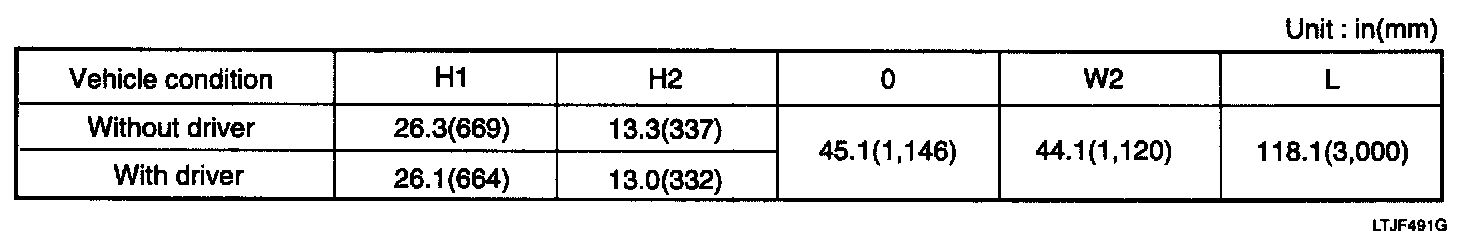

HEAD LAMP AND FOG LAMP AIMING POINT

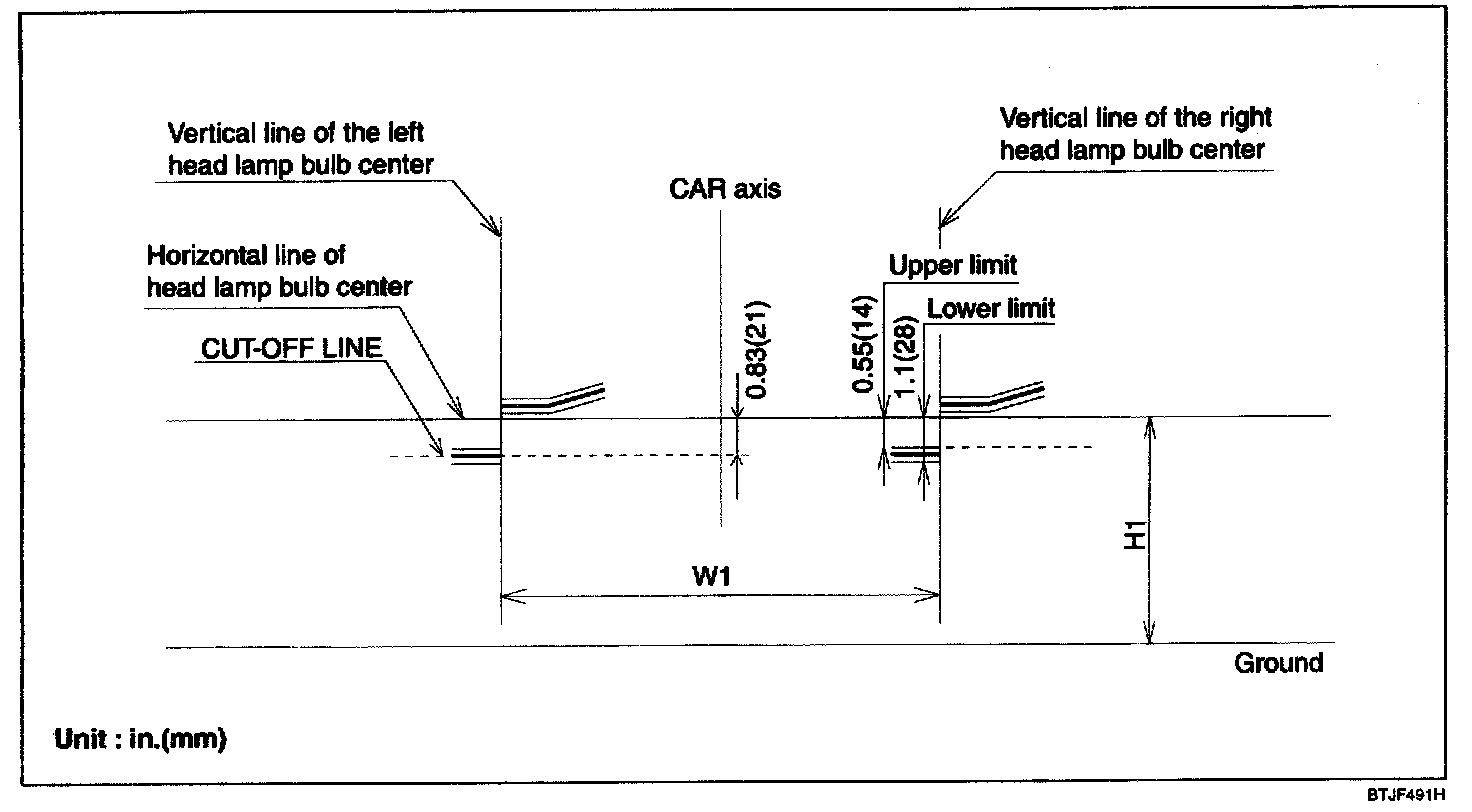

1. Turn the low beam on without driver aboard. The cut-off line should be projected in the allowable range (shaded region).

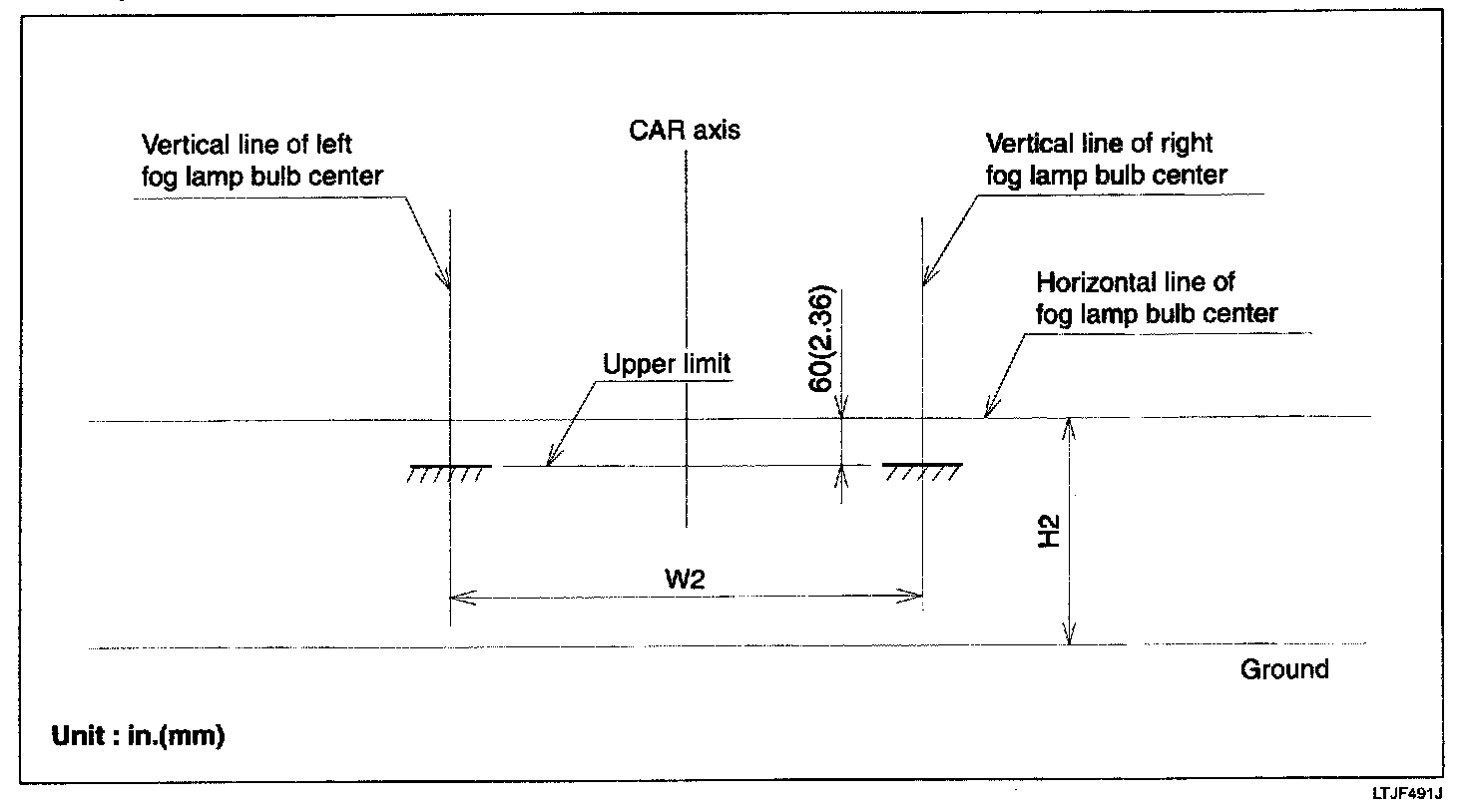

2. Turn the front fog lamp on without the driver aboard. The cut-off line should be projected in the allowable range (shaded region).
