Courtesy Lamp: Testing and Inspection
OVERHEAD CONSOLE LAMPINSPECTION

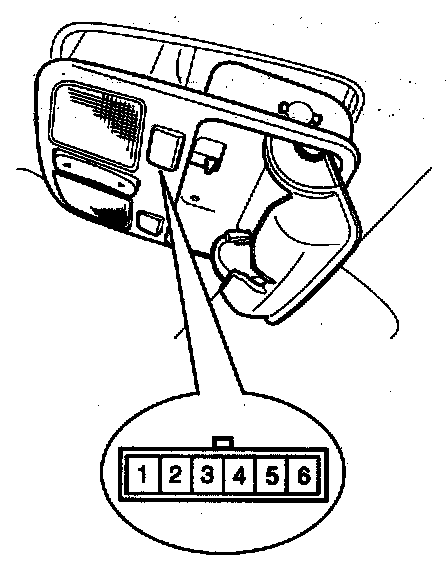

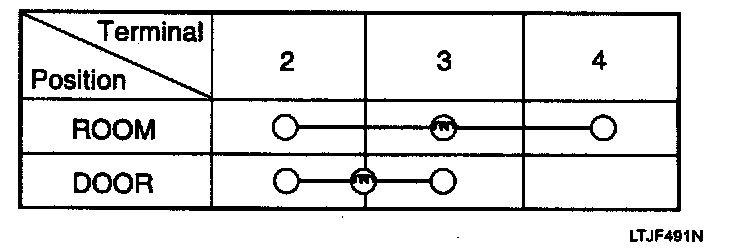

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
INSPECTION
Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
