Courtesy Lamp: Service and Repair
OVERHEAD CONSOLE LAMPREPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Detach the lamp lens from the overhead console lamp with a flat-tip screw driver, then replace the bulb.

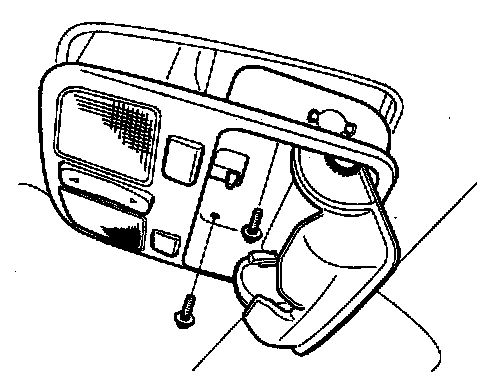

3. Open the sunglass case cover then remove the 2 screws holding the overhead console.
4. Disconnect the connector (4P) of sunroof switch and the connector (6P) of map lamp then remove the overhead console lamp assembly from the headliner.
5. Installation is the reverse of removal.
