Symptom Related Diagnostic Procedures

TROUBLESHOOTING

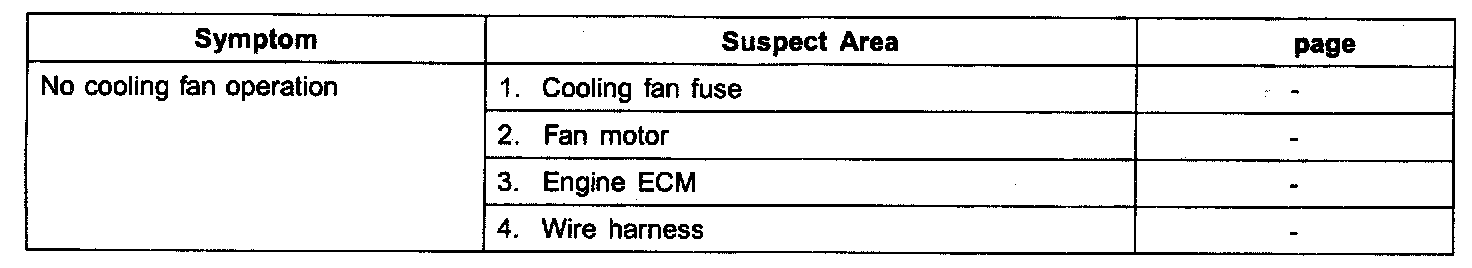

PROBLEM SYMPTOMS TABLE
Before replacing or repairing air conditioning components, first determine if the malfunction is due to the refrigerant charge, air flow or compressor.

Standard Part 1:

Standard Part 2:

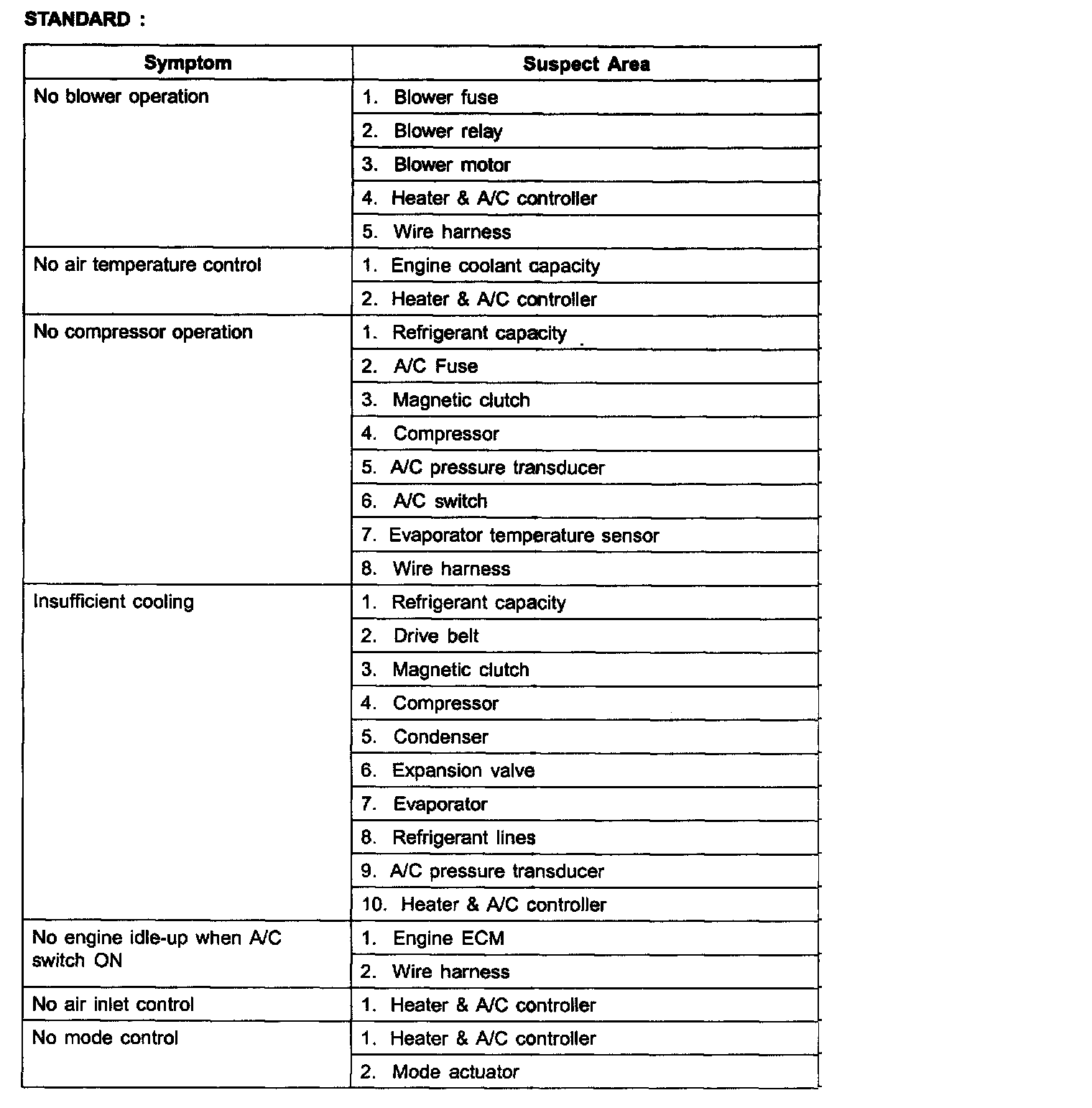

STANDARD :
Use the table given to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

After correcting the malfunction, check the complete system to ensure that is satisfactory.
