Exhaust Pipe: Service and Repair

EXHAUST PIPE

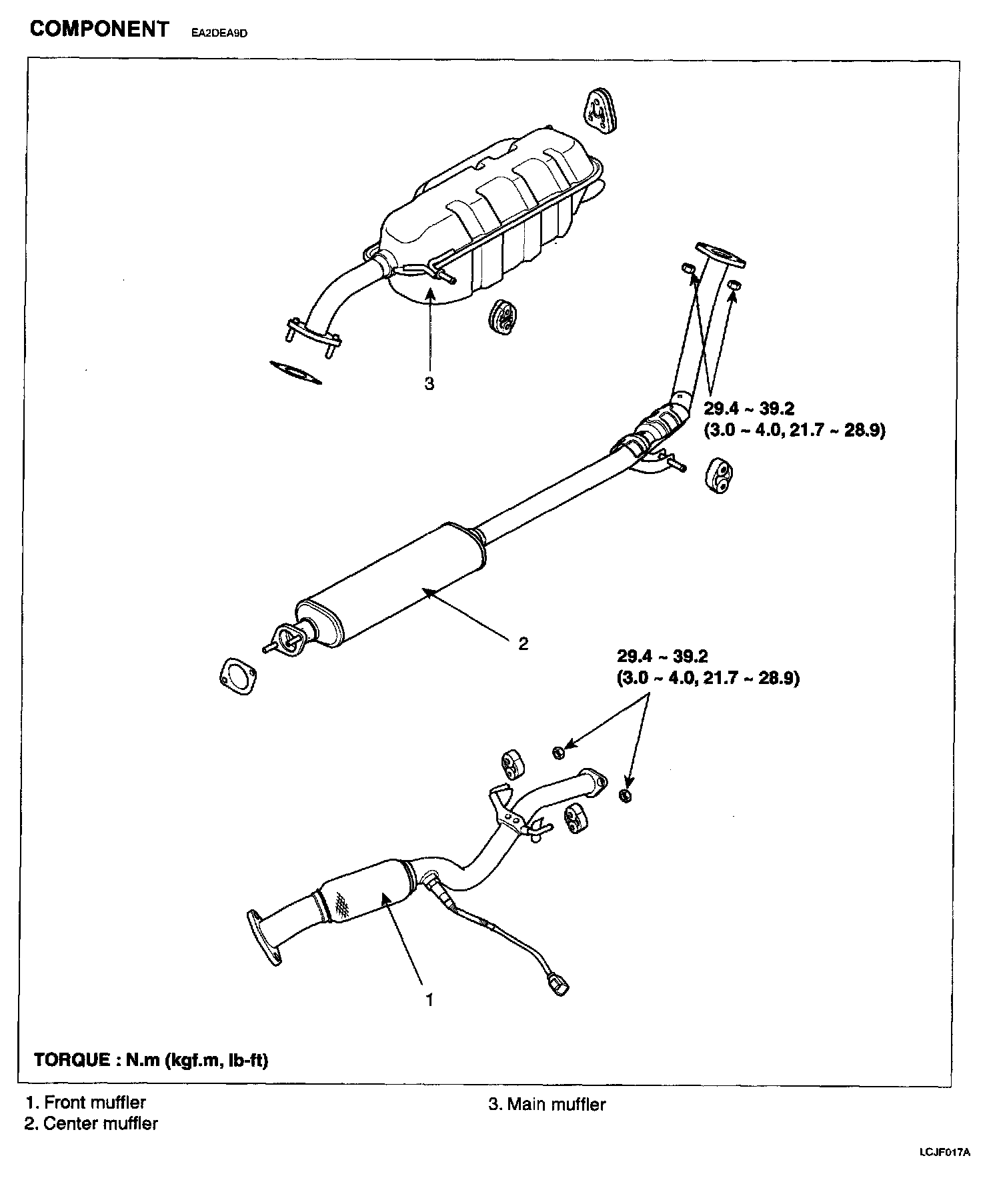

COMPONENT:

REMOVAL

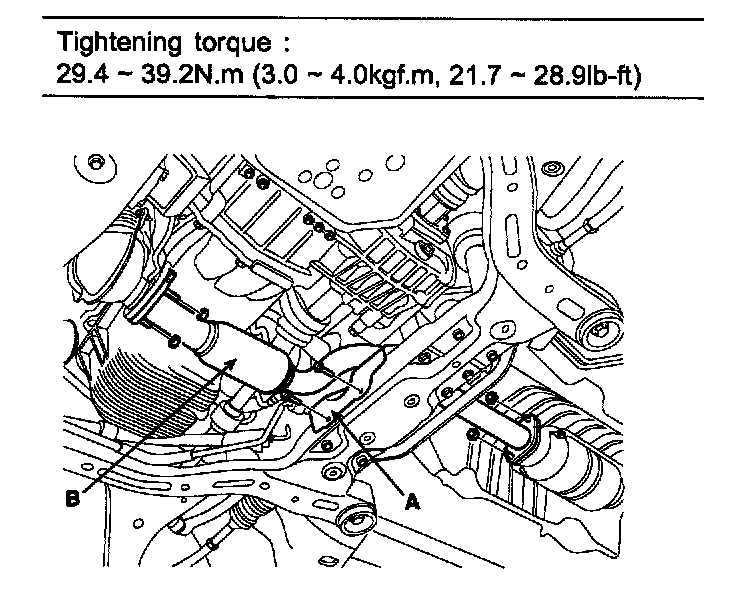

1. Remove the front muffler heat protector (A).
Tightening torque: 7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 ft. lbs.)
2. Remove the front muffler (B).

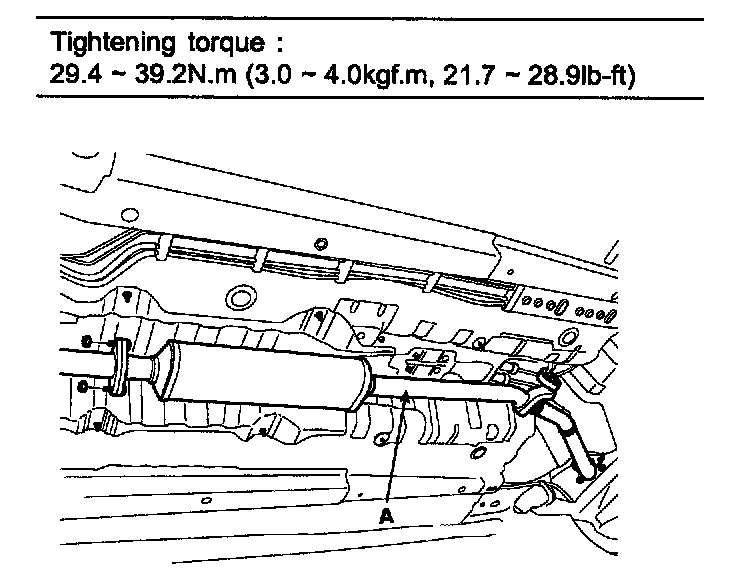

3. Remove the center muffler (A).

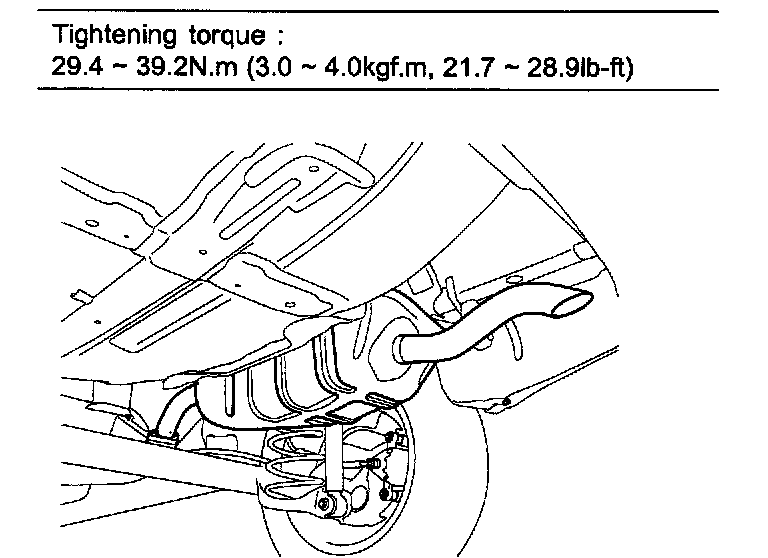

4. Remove the main muffler (A).
