Radiator: Service and Repair

COOLING SYSTEM

COMPONENT:

REMOVAL
1. Drain the engine coolant. Remove the radiator cap to speed draining.

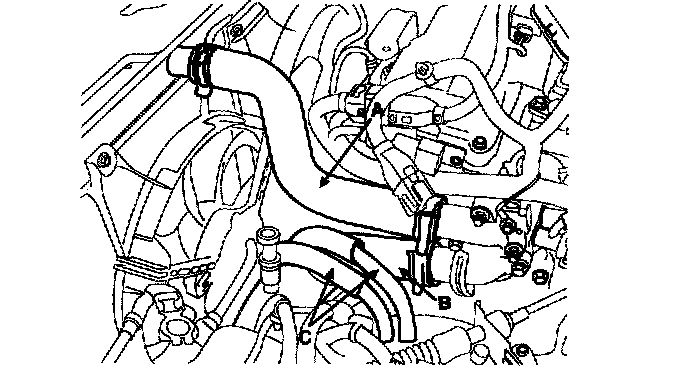

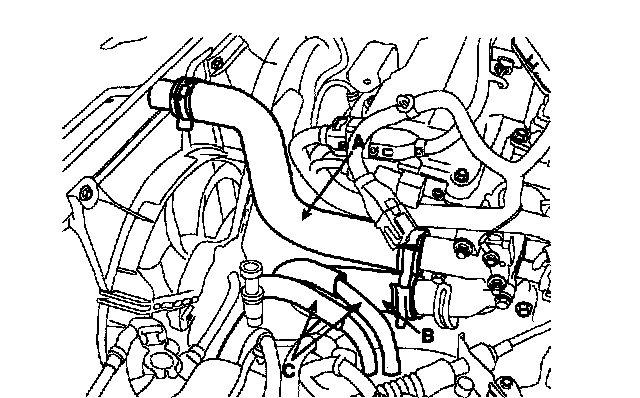

2. Remove the upper radiator hose (A) and lower radiator hose (B).
3. Remove the ATF (Automatic Transaxle Fluid) oil cooler hoses (C). (A/T)

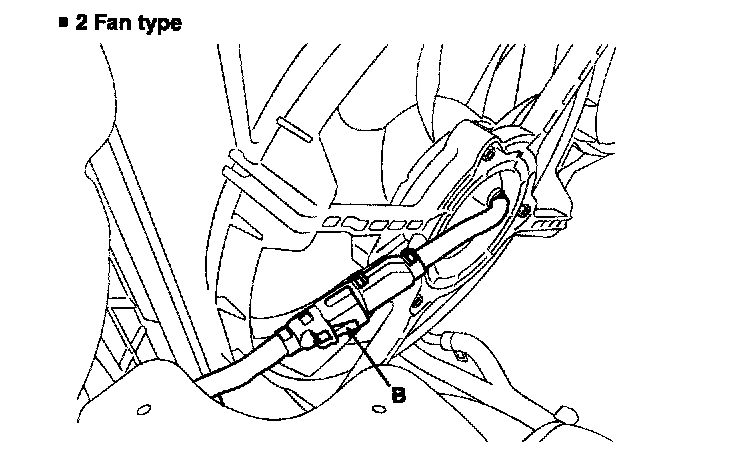

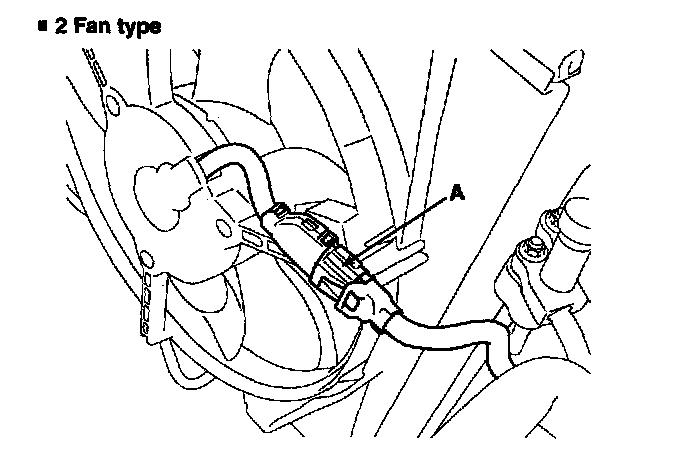

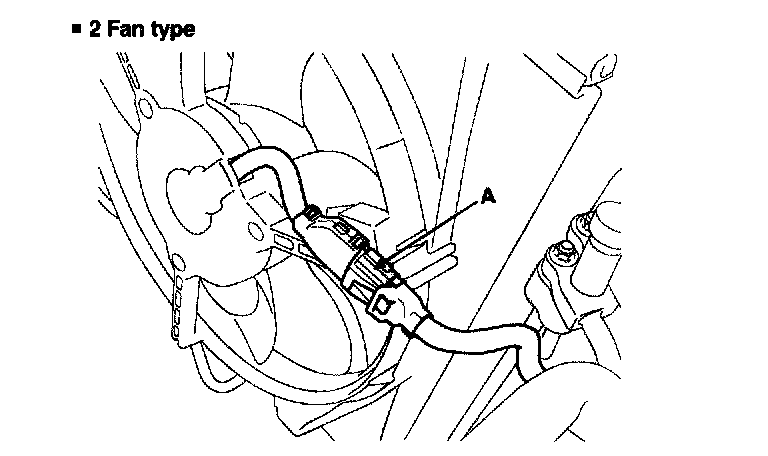

4. Disconnect the fan motor connector (A, B).

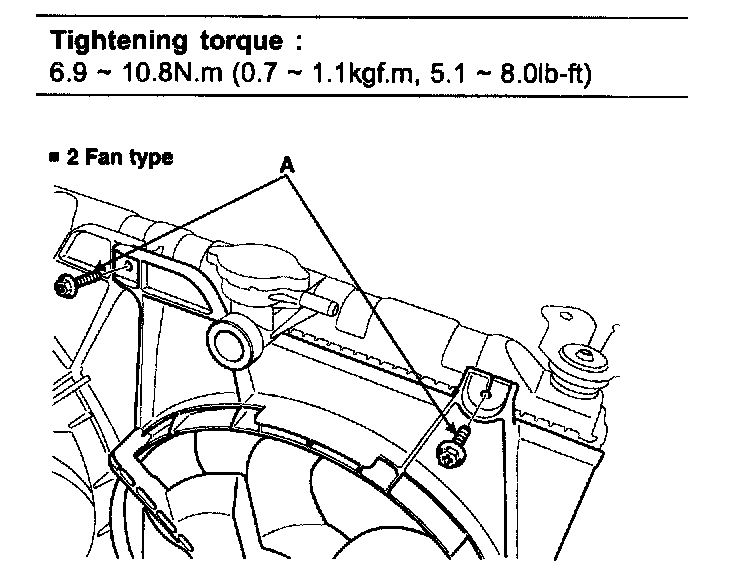

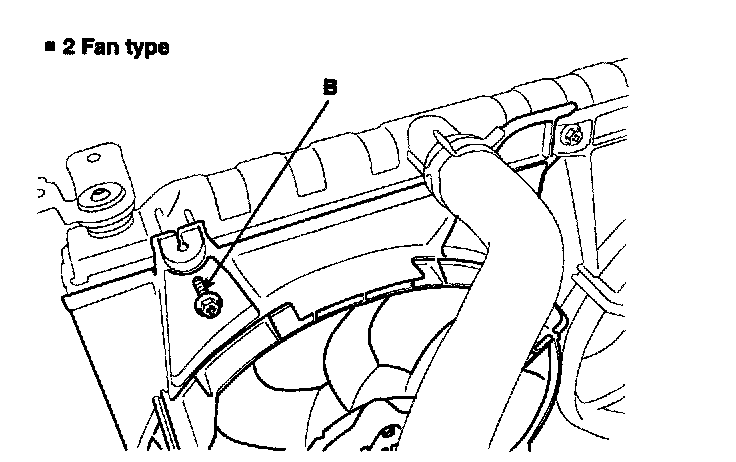

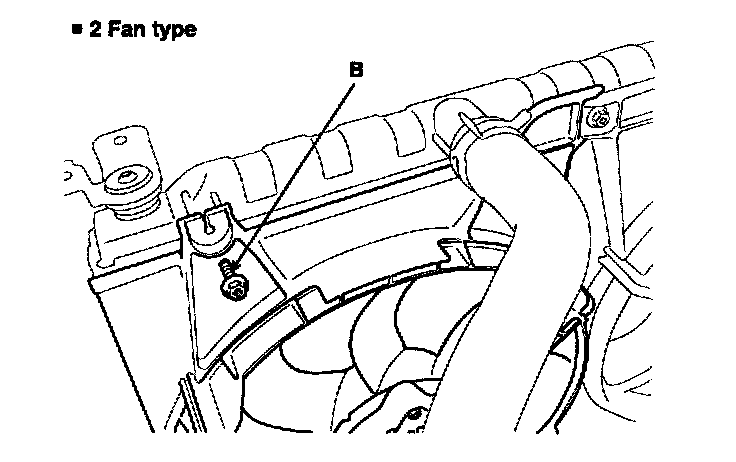

5. Remove the cooling fan mounting bolt (A, B) and remove cooling fan.

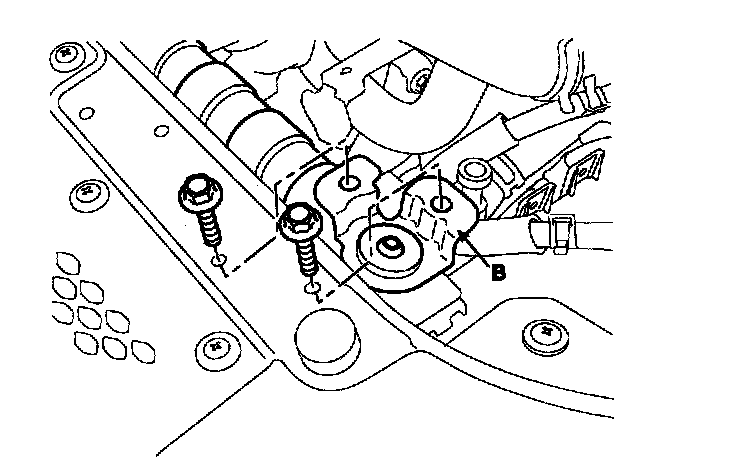

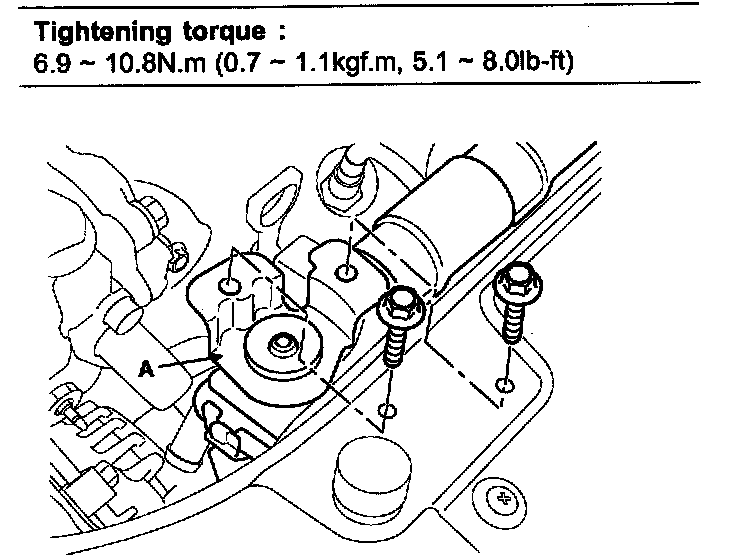

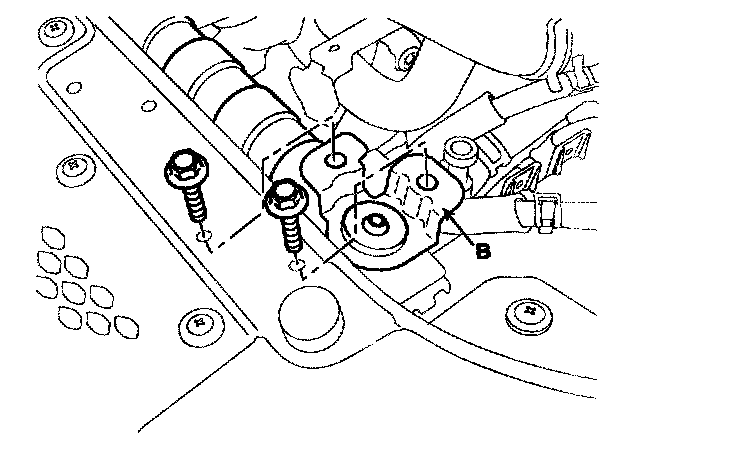

6. Remove the radiator upper bracket (A, B), then pull up the radiator.








INSTALLATION
1. Install the radiator.

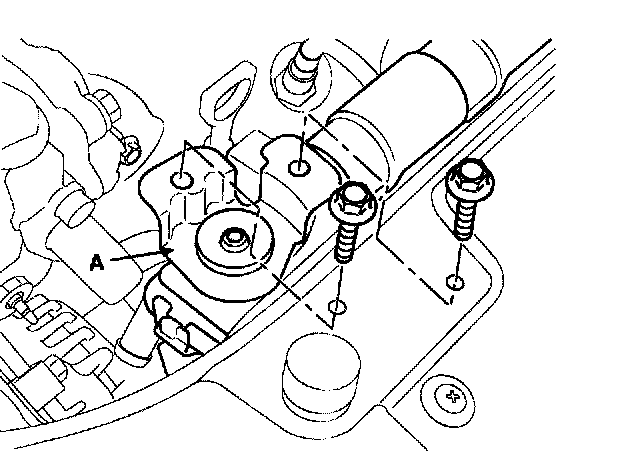

2. Install the radiator upper bracket (A, B).

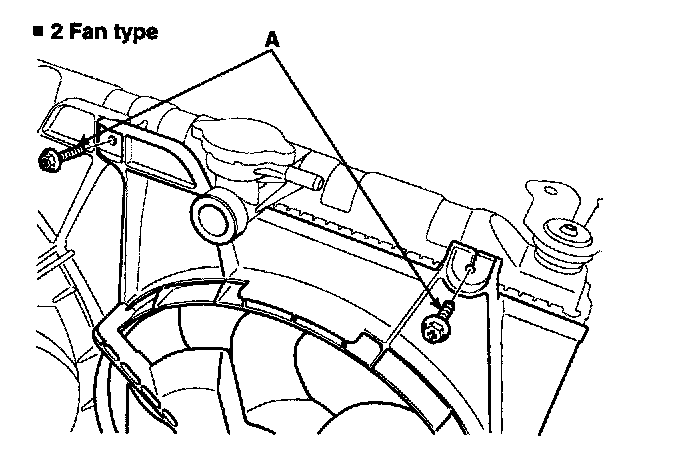

3. Install the cooling fan mounting bolts (A, B).

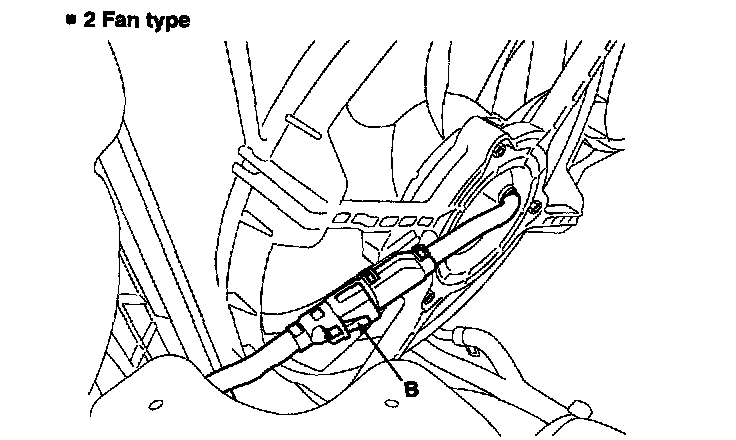

4. Connect the fan motor connector (A, B).








5. Install the upper radiator hose (A) and lower radiator hose (B).
6. Install the ATF (Automatic Transaxle Fluid) oil cooler hoses (C).





7. Fill with engine coolant.
8. Start engine and check for leaks.
