Circuit Diagrams

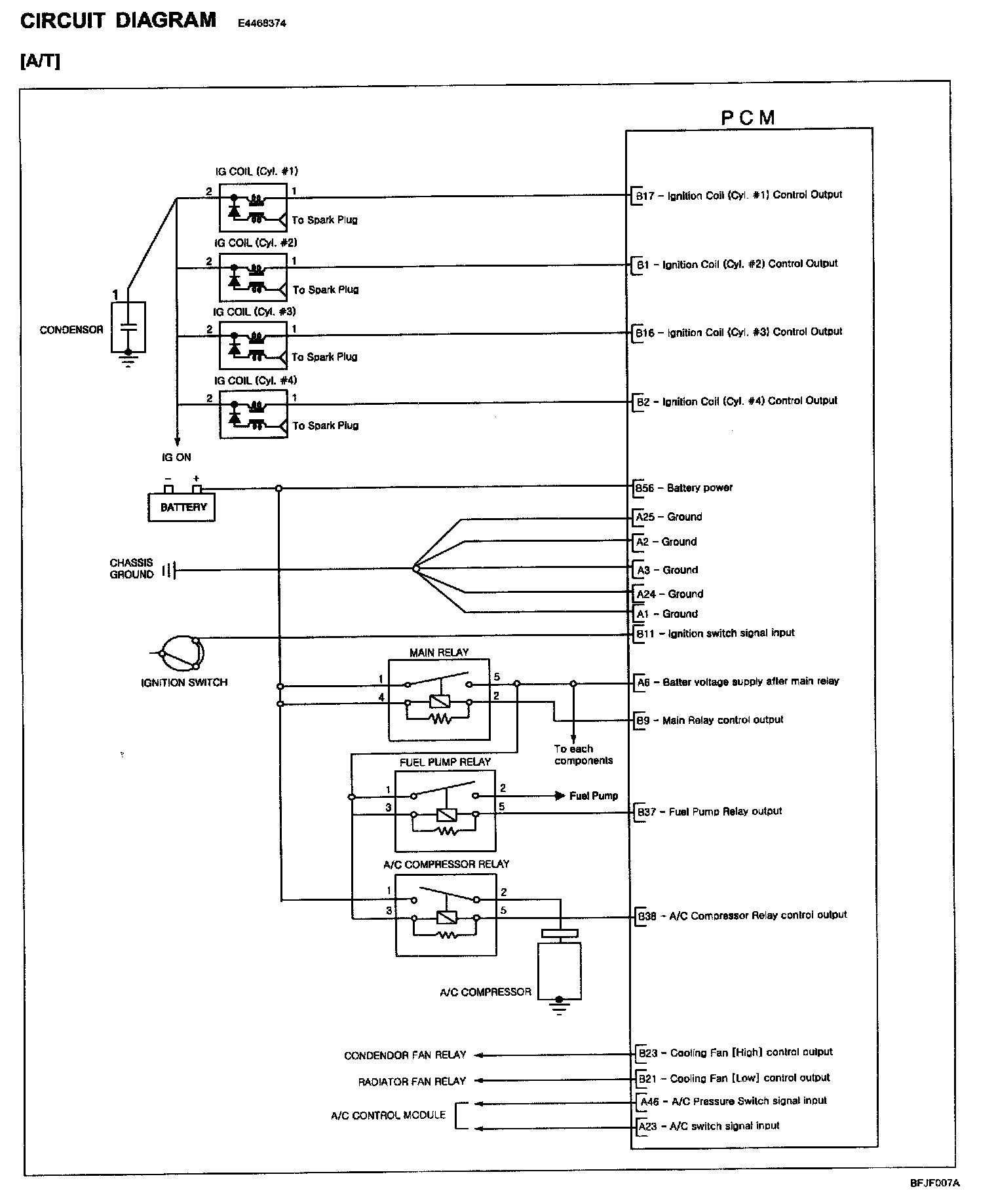

Circuit Diagram (A/T) Part 1:

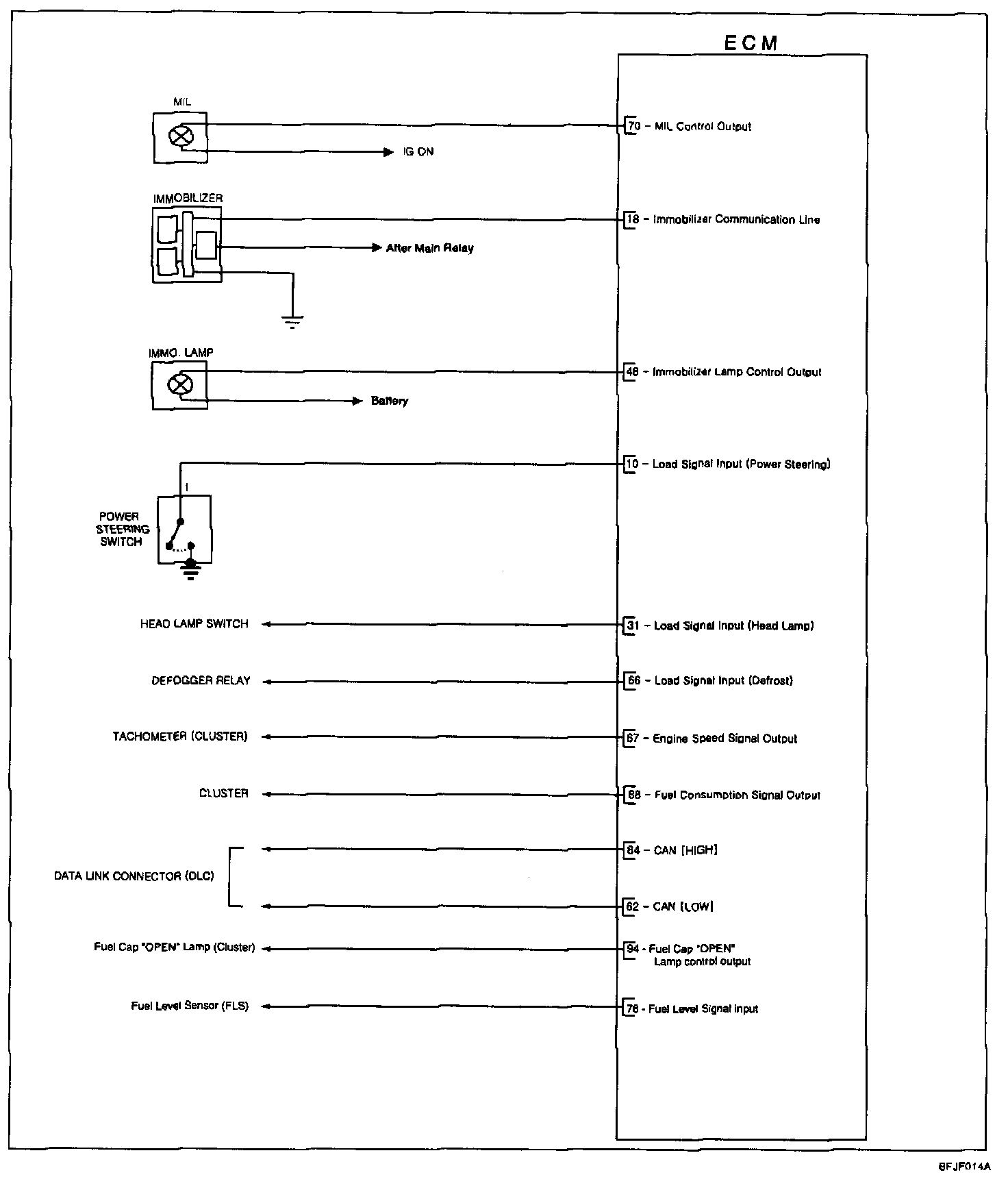

Circuit Diagram (A/T) Part 2:

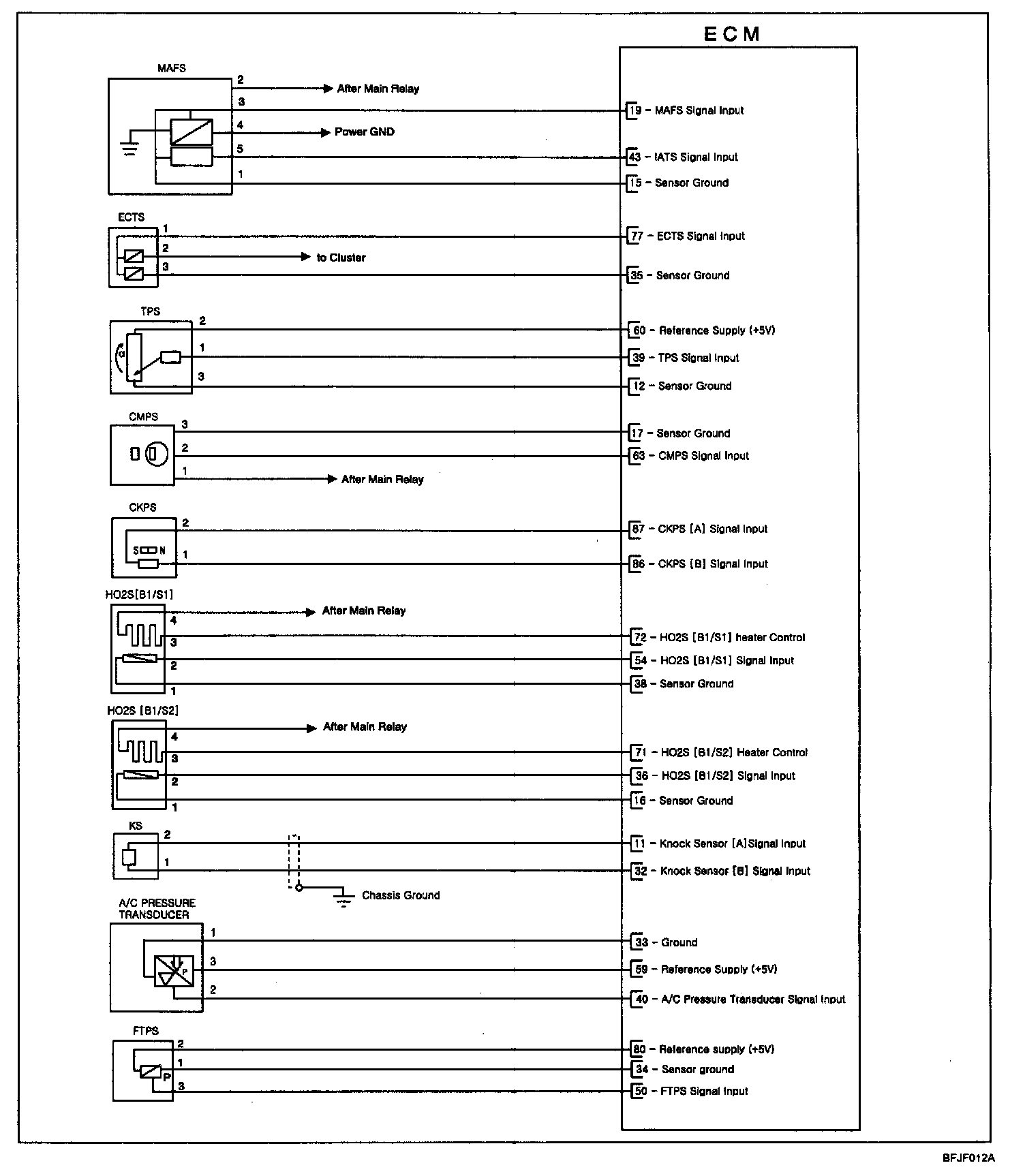

Circuit Diagram (A/T) Part 3:

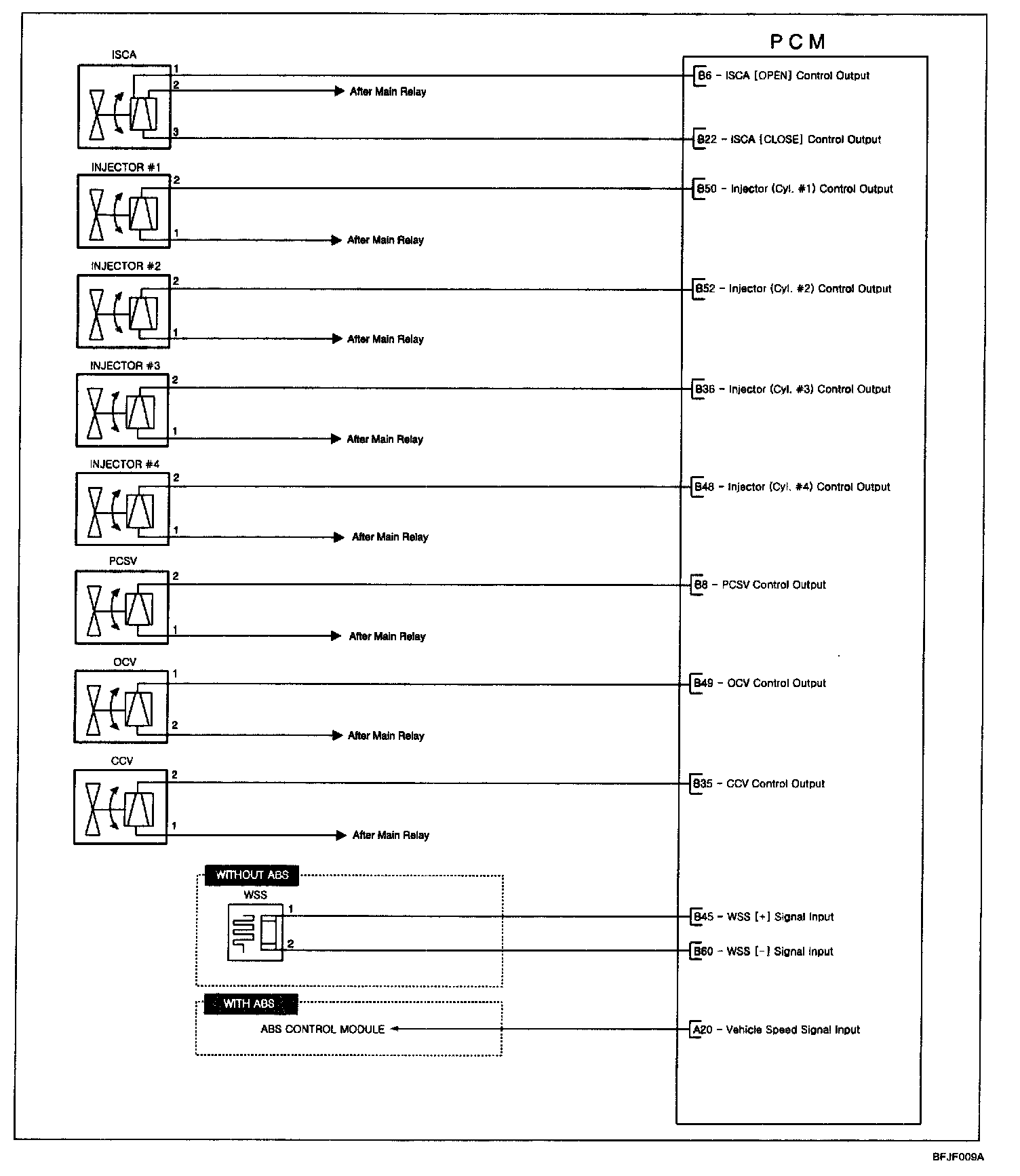

Circuit Diagram (A/T) Part 4:

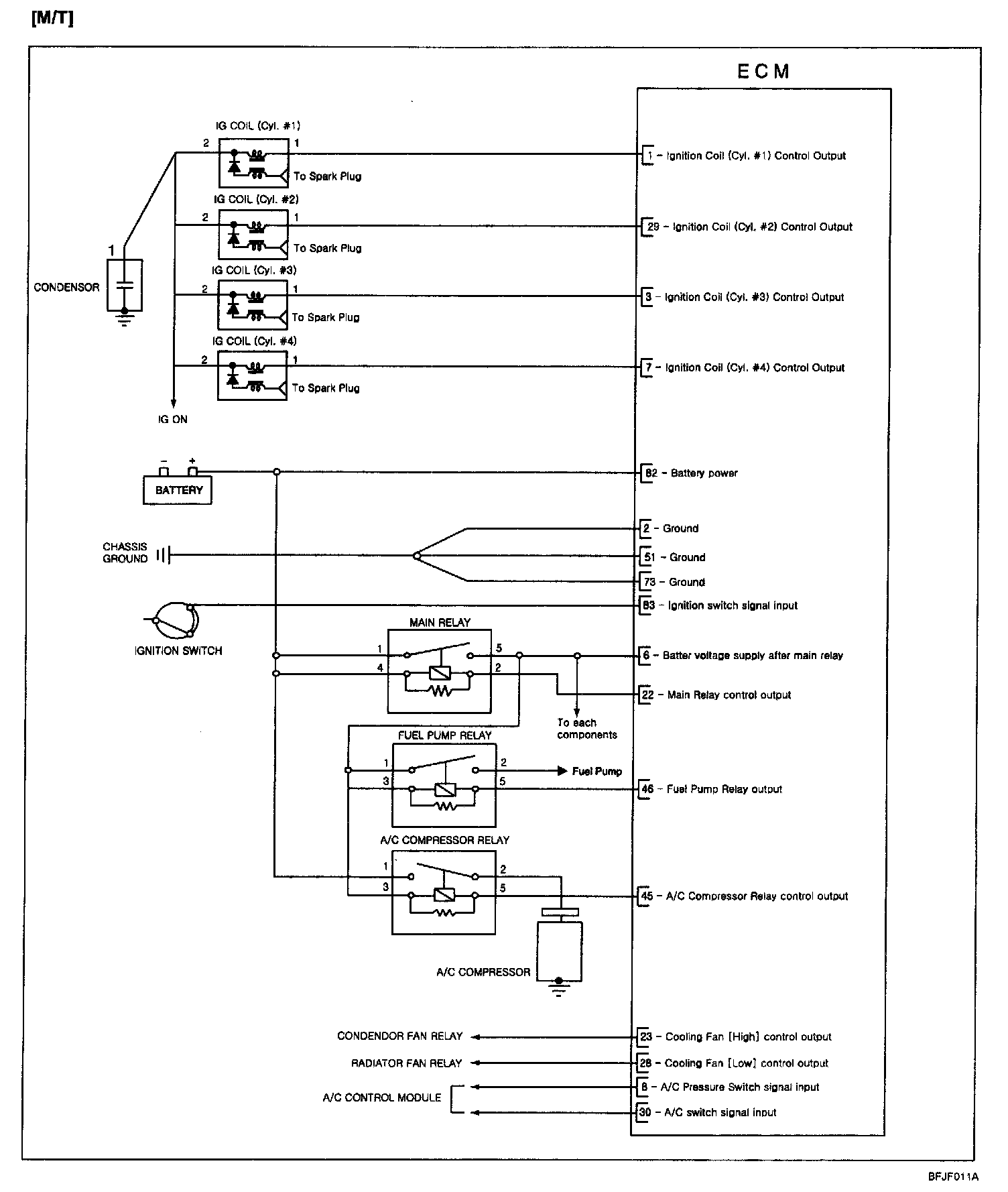

Circuit Diagram (M/T) Part 1:

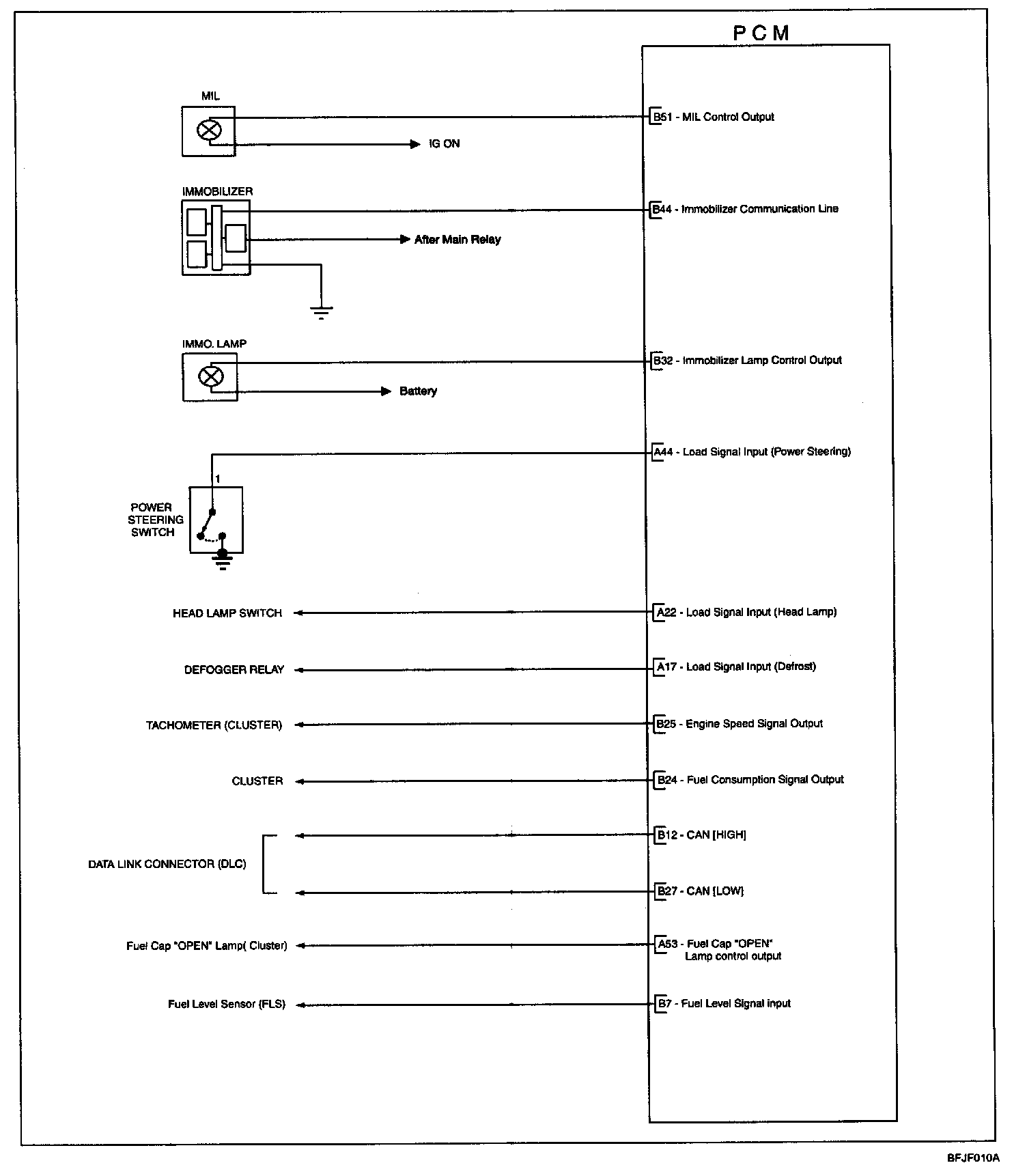

Circuit Diagram (M/T) Part 2:

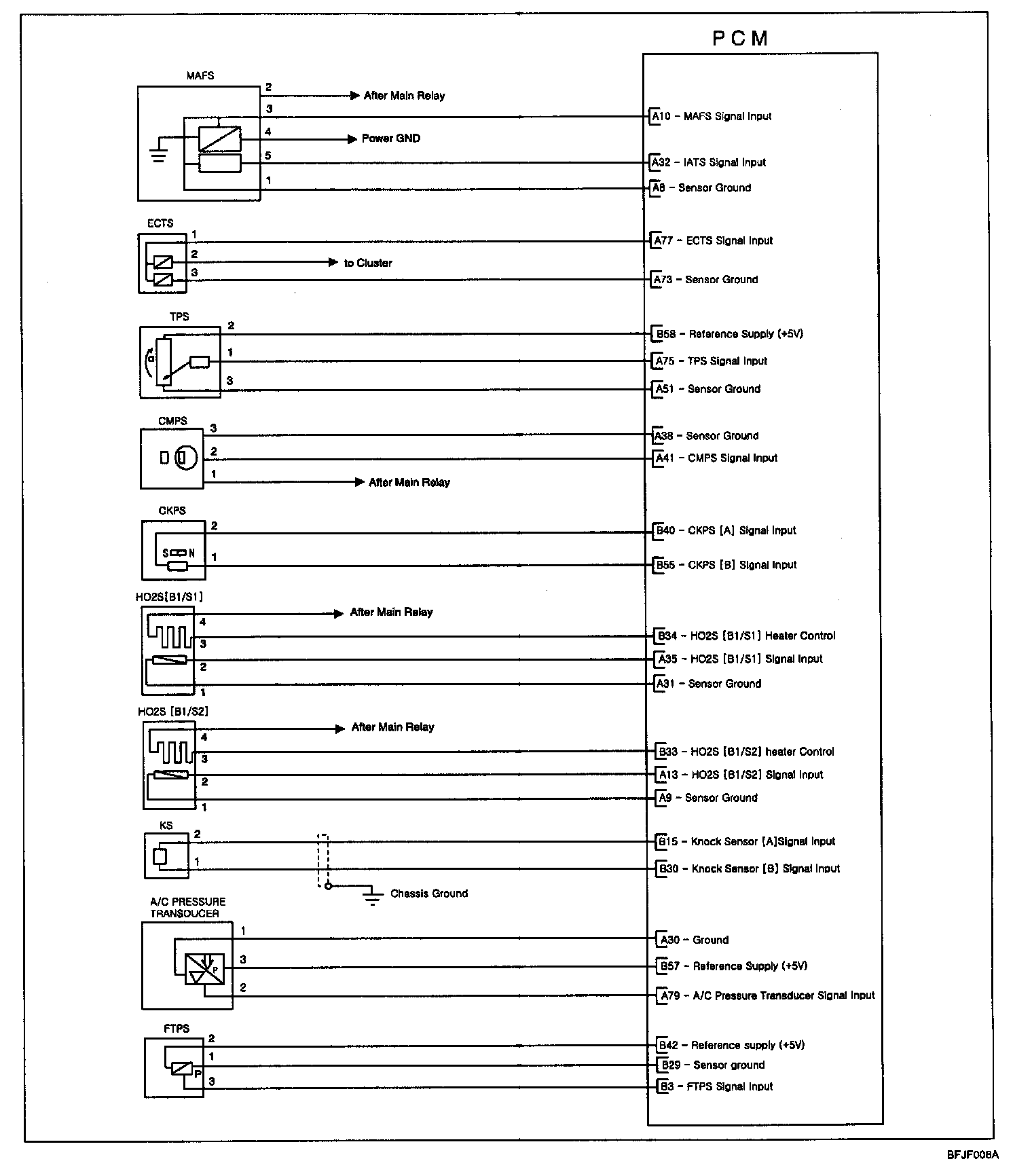

Circuit Diagram (M/T) Part 3:

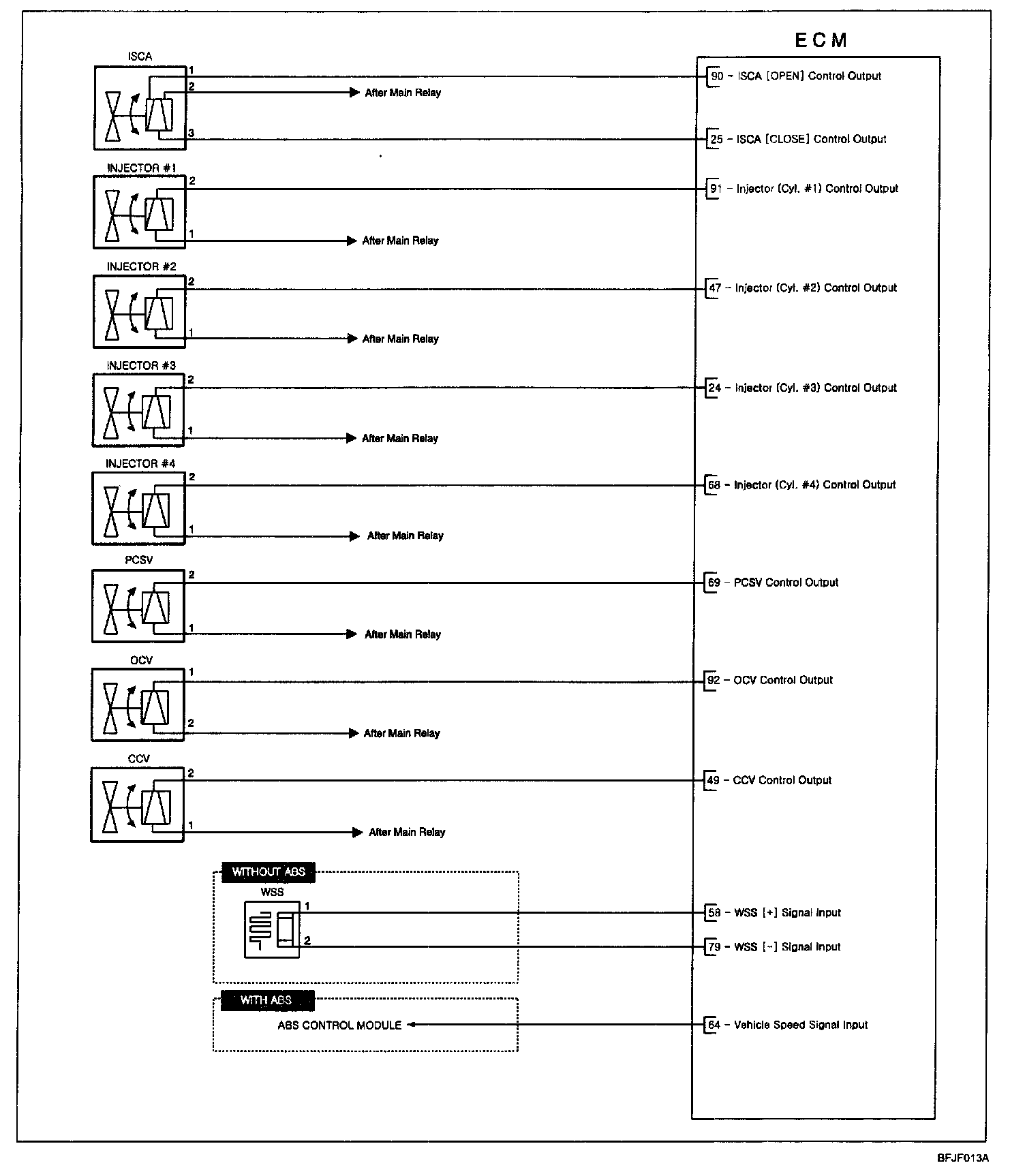

Circuit Diagram (M/T) Part 4:
