Home >> Kia >> 2006 >> Rio L4-1.6L >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

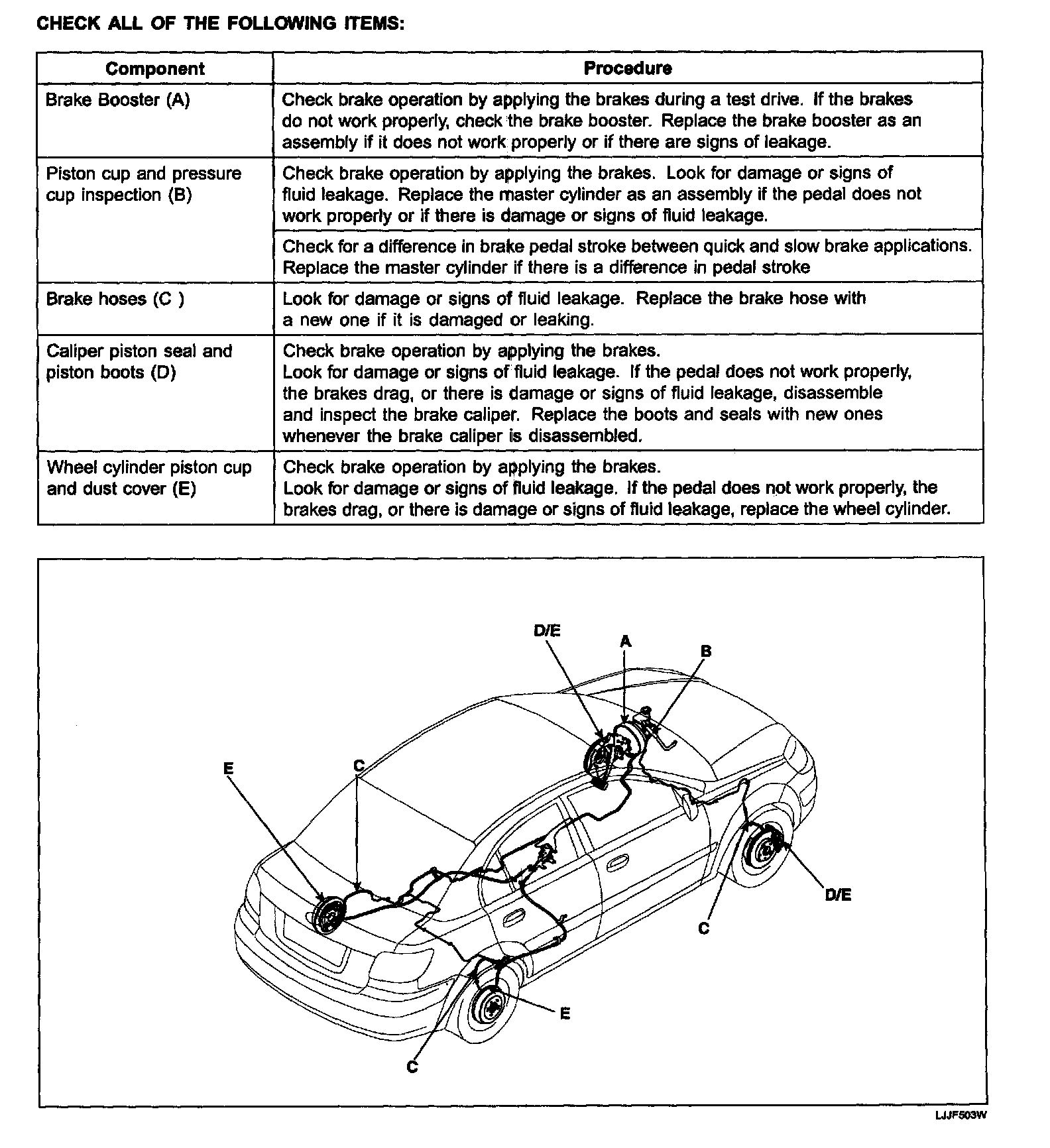

OPERATION AND LEAKAGE CHECK

CHECK ALL OF THE FOLLOWING ITEMS:
