Parking Brake Testing

INSPECTION

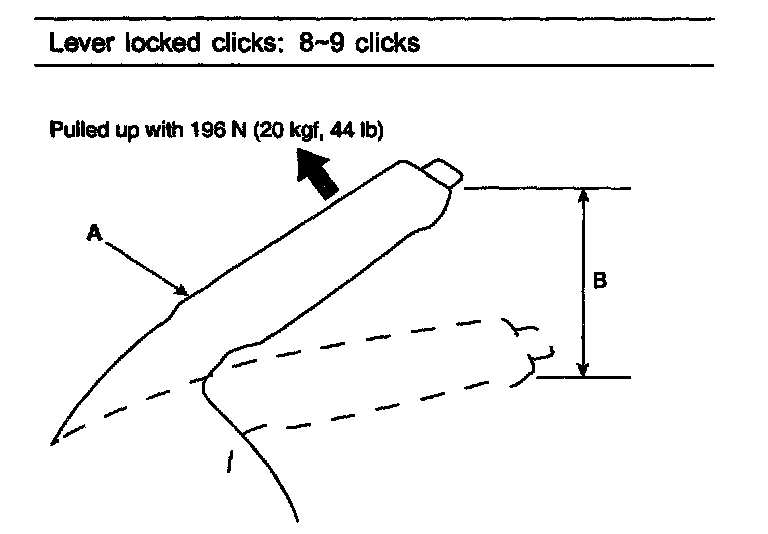

1. Pull the parking brake lever (A) with 196 N (20 kg, 44 lbs.) force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks (B).
Lever locked clicks: 8-9 clicks





2. Adjust the parking brake if the lever clicks are out of specification.
