Rear Seat Assembly

SEAT ASSEMBLY REPLACEMENT

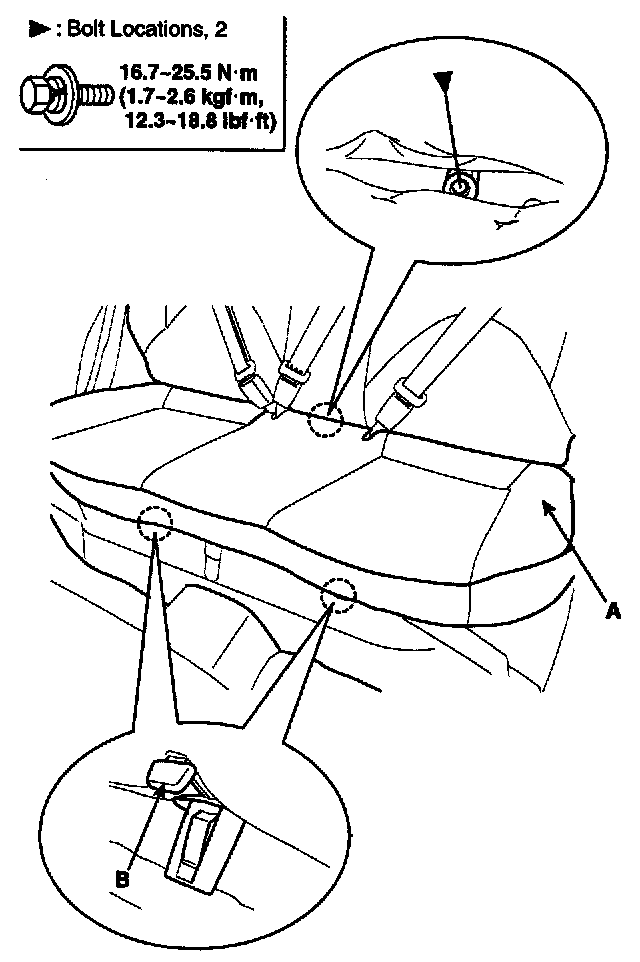

1. Loosen the rear seat cushion mounting bolts, then remove the rear seat cushion (A) after pull the stopper (B).

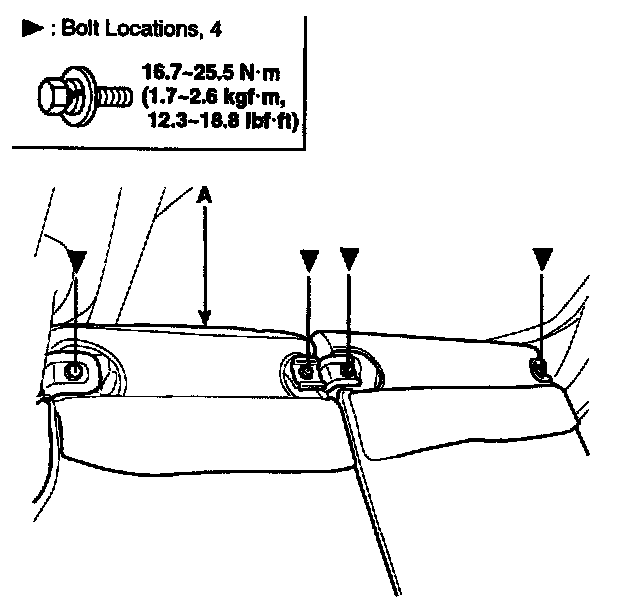

2. Loosening the seat belt mounting bolt, remove the seat back (A).
3. Installation is the reverse of removal.
