Seat Back: Service and Repair
FRONT SEAT BACK COVER REPLACEMENT1. Remove the recliner cover, knob and height knob.

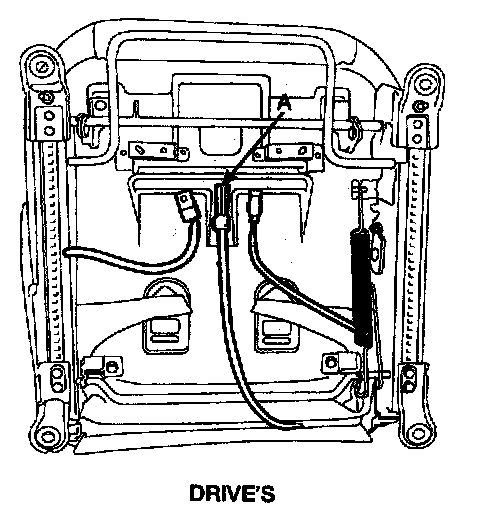

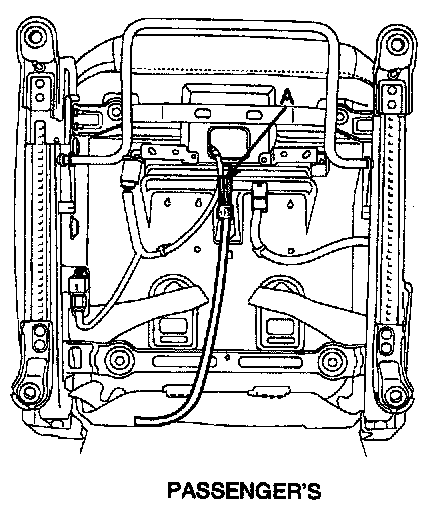

2. Disconnect the airbag connector (A).

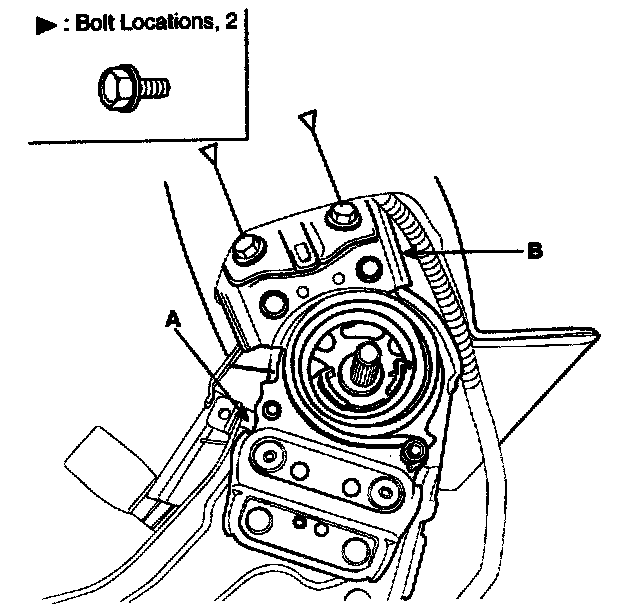

3. Disconnect the seat back frame (B) from seat track assembly (A).

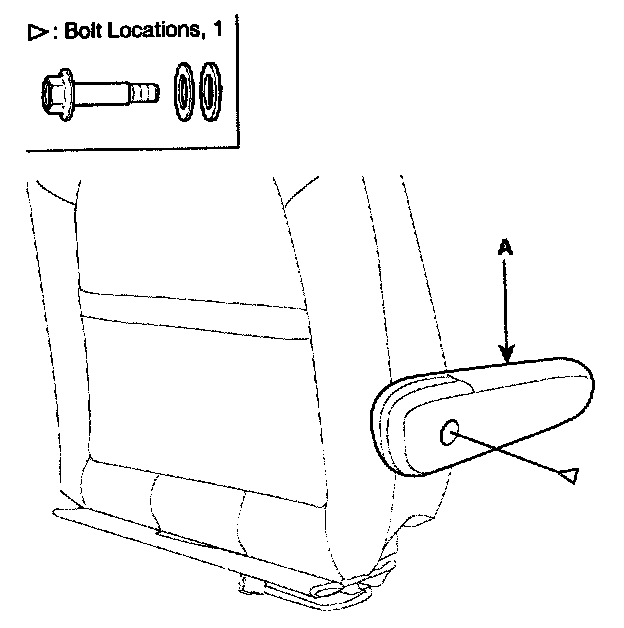

4. After loosening the mounting screw, remove the front seat armrest (A).

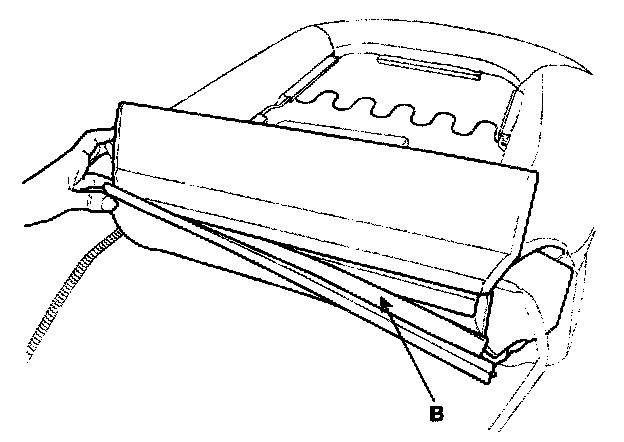

5. Using a screw driver, remove the seat back panel (B).

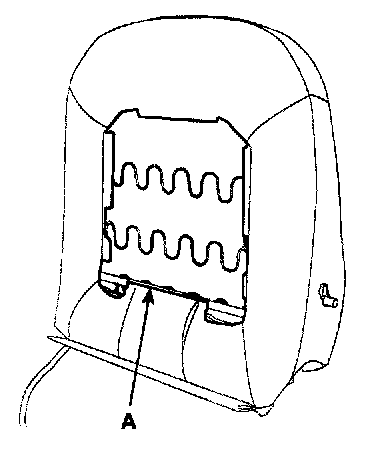

6. Disconnect the protector (A) from seat back frame.

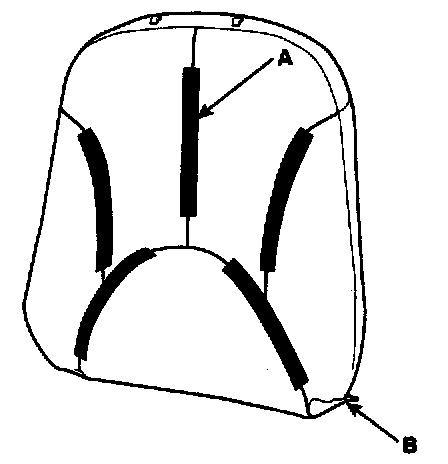

7. Disconnect the band (B).

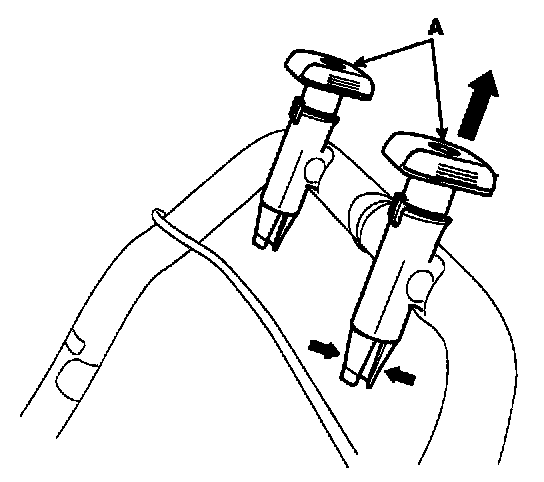

8. Remove the headrest and headrest guide (A).

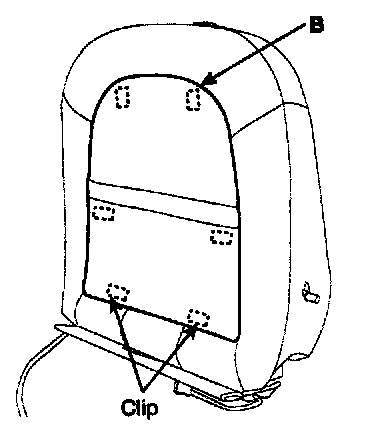

9. After removing the apilx (A) on the front of seat cover and remove the seat cover (B).
10. Installation is the reverse of removal.
NOTE
- To prevent wrinkles, make sure the material is stretched evenly over the over (A) before securing the hogring clips (B).
- Replace the hogring clips with new ones using special tool (C).
