Inside Rear View Mirror

INSIDE REAR VIEW MIRROR REPLACEMENT

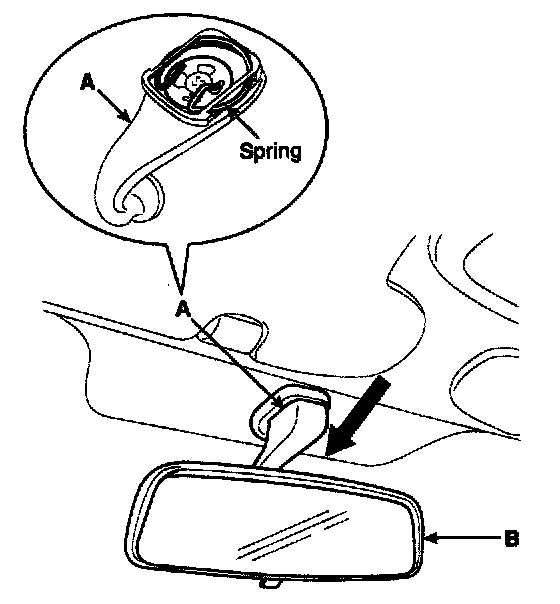

1. Push the inside rear view mirror base (A) down to remove to inside rear view mirror assembly (B).
2. Installation is the reverse of removal.
