Rear Continuity Test

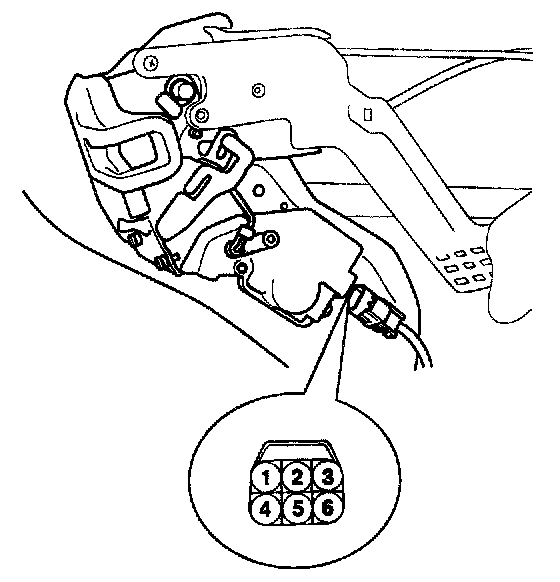

REAR DOOR LOCK ACTUATOR
1. Remove the rear door trim panel.




2. Disconnect the 6P connector from the actuator.

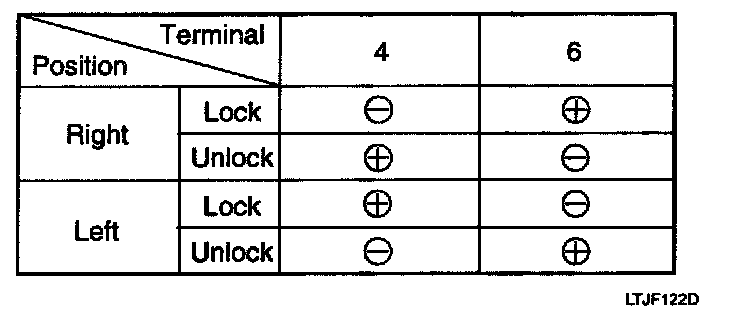

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
