Front Power Test

INSPECTION

FRONT DOOR LOCK ACTUATOR
1. Remove the front door trim panel.

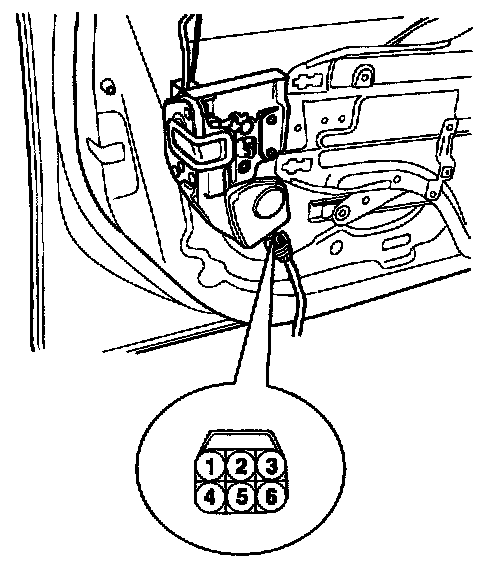

2. Disconnect the 6P connector from the actuator.

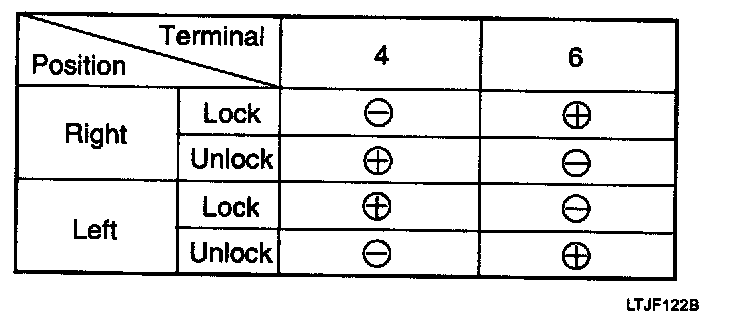

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
