Interior Moulding / Trim: Service and Repair

INTERIOR TRIM

REPLACEMENT

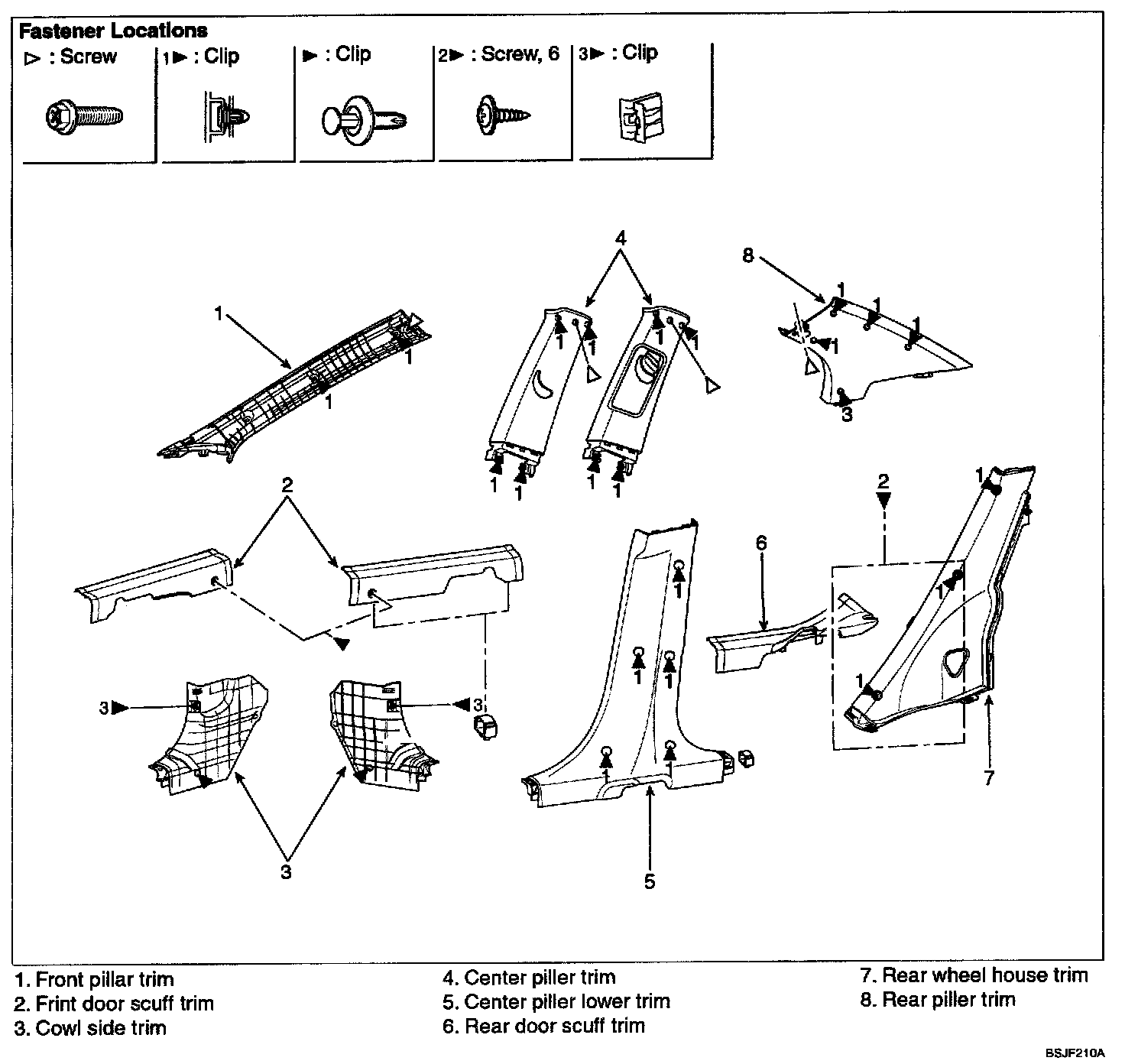

FLOOR AND SIDE TRIM
1. Remove the trim.

NOTE
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

2. Installation is the reverse of removal.

NOTE: Replace any damage clips.

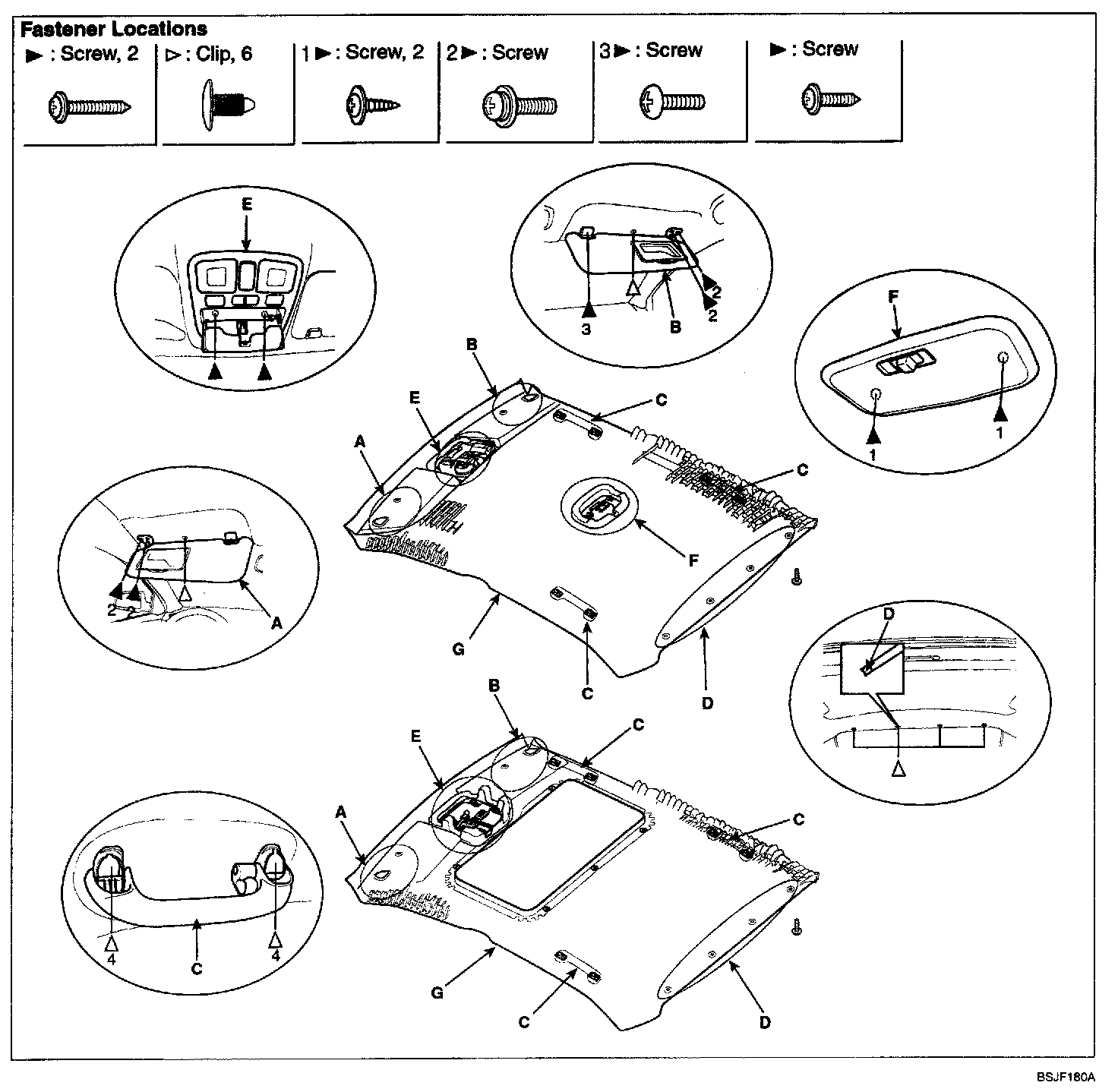

ROOF TRIM




1. Remove the following items.
- Sunvisor (A), (B).
- Over head console (E).
- Room lamp (F).
- Assist handle (C).

2. Remove the roof trim.

NOTE
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

3. Installation is the reverse of removal.

NOTE: Replace any damage clips.

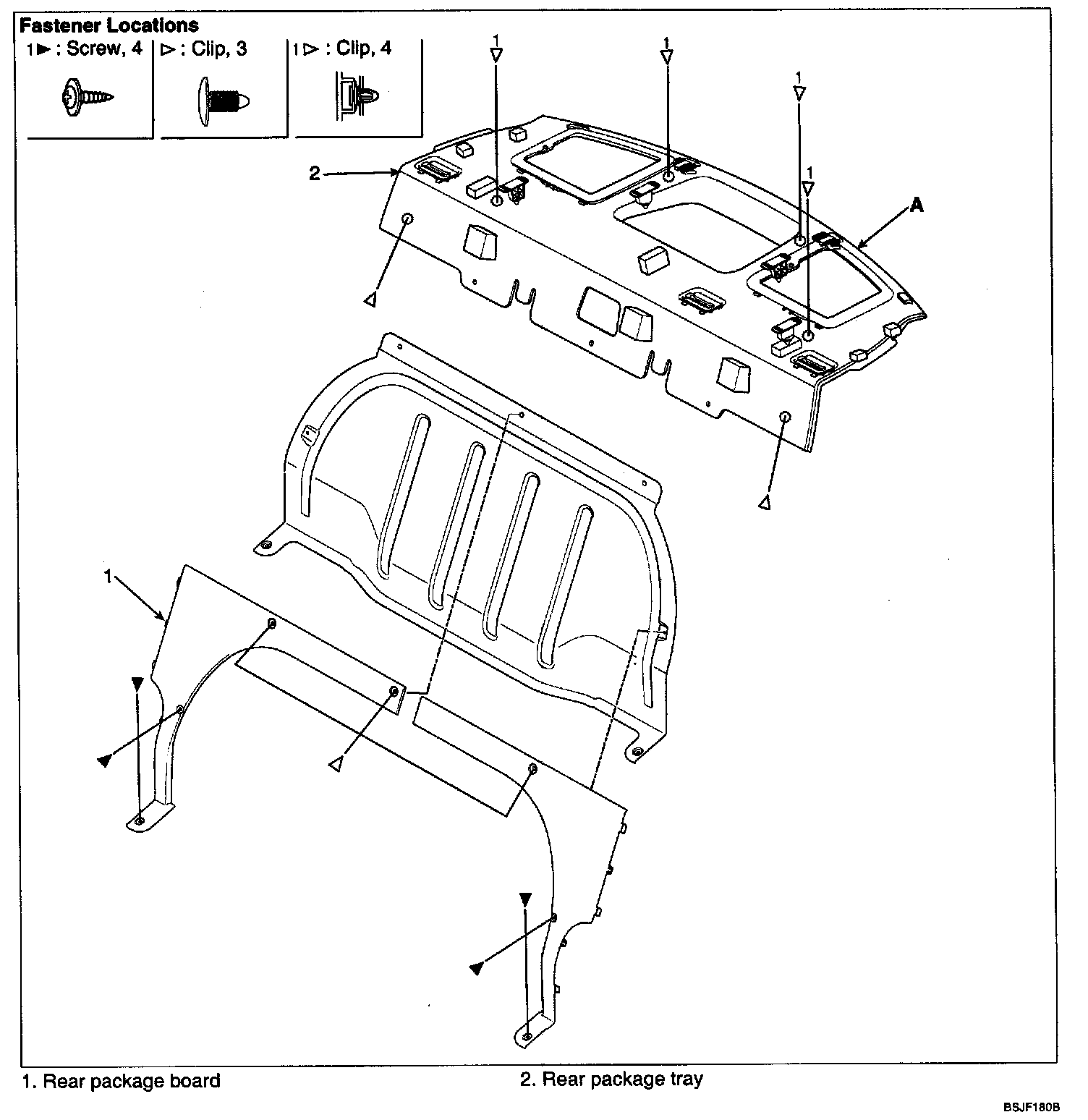

PACKAGE TRAY
1. Remove the package trim.

NOTE
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

2. Installation is the reverse of removal.

NOTE: Replace any damage clips.
