Lower Crash Pad

LOWER CRASH PAD PANEL REPLACEMENT

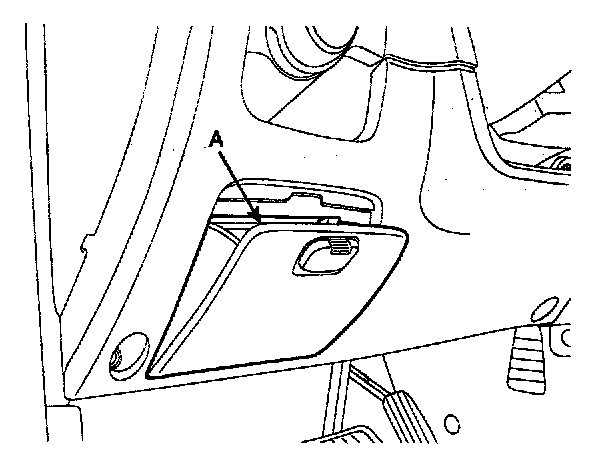

1. Remove the fuse box cover (A).

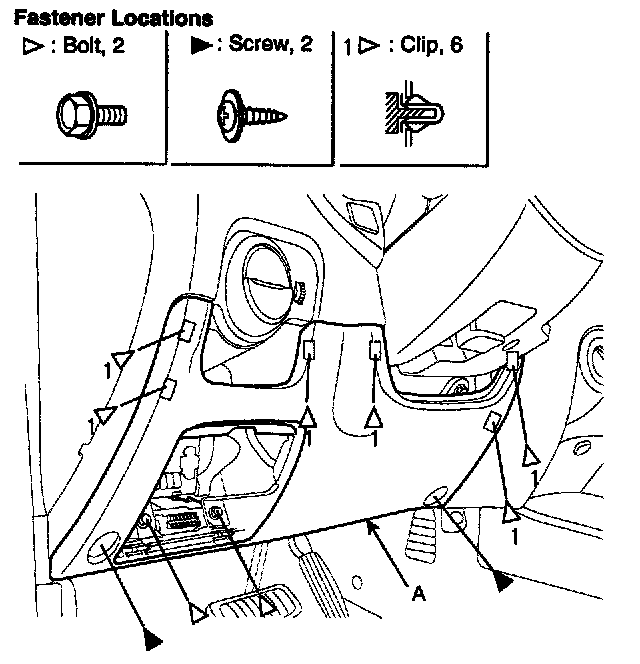

2. Loosening the crash pad lower panel mounting screw. Remove the lower crash pad panel (A).
3. Installation is the reverse of removal.
