Trunk / Liftgate Handle: Service and Repair

TRUNK LID RELEASE HANDLE REPLACEMENT

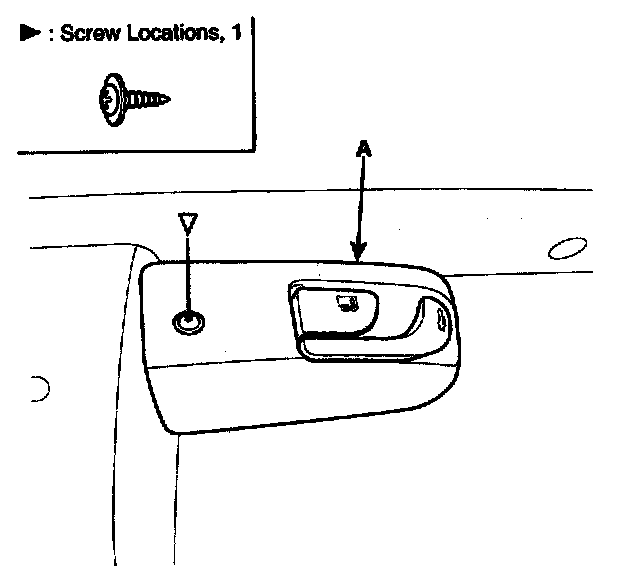

1. Remove the handle cover (A).

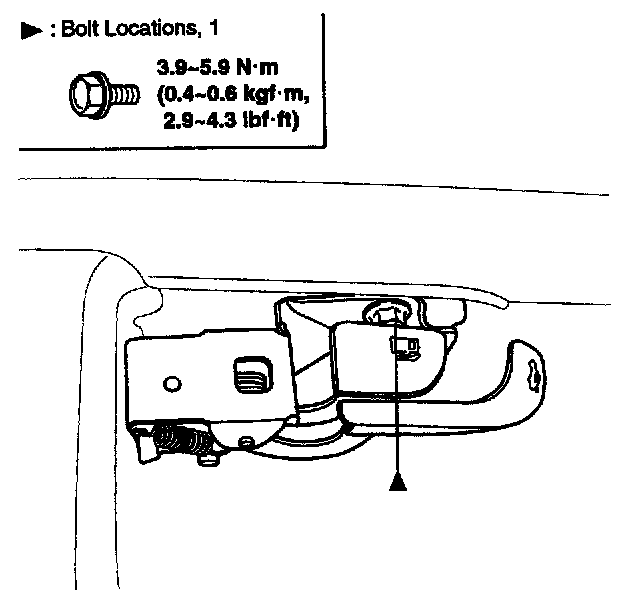

2. After loosening the mounting bolts.

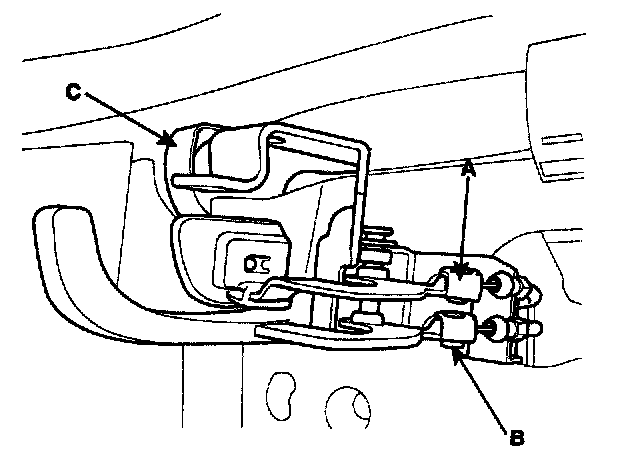

3. Disconnect the release handle cable (A) and fuel fill door release handle cable (B) then remove the release handle (C).
4. Installation is the reverse of removal.

NOTE
- Make sure the trunk lid latch cable is connected properly.
- Make sure the trunk lid opens properly and locks securely.
