Transmission Installation

INSTALLATION

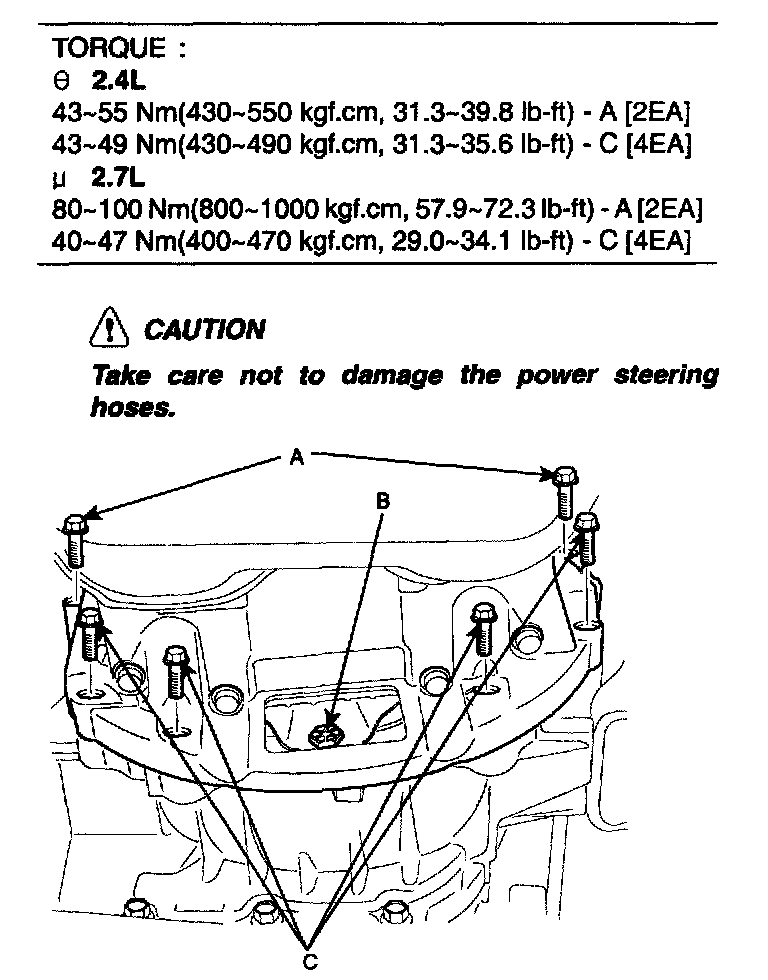

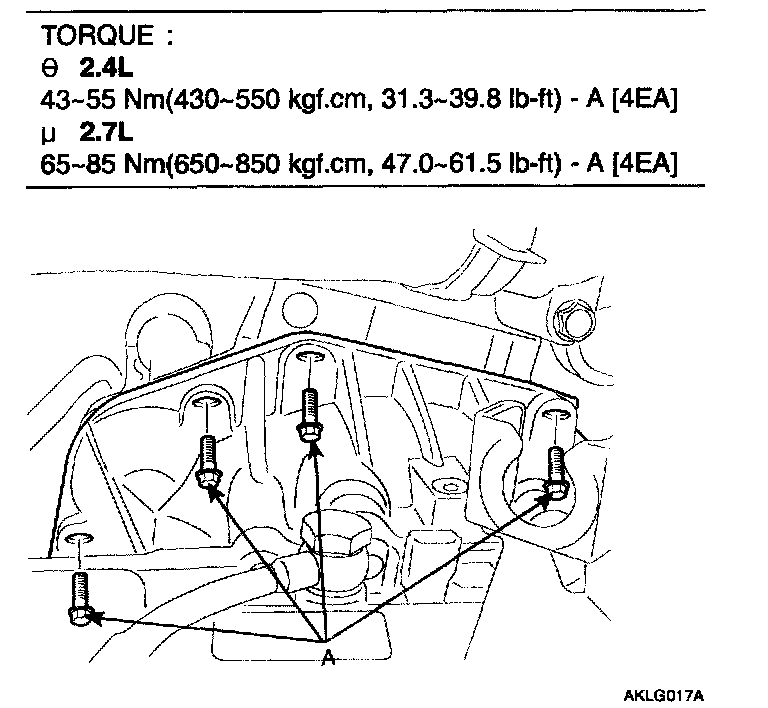

1. Lifting up the transaxle slowly with a jack, tighten the under mounting bolts (A)
2. Insert the drive shafts into the transaxle.
3. Install the inner shaft mounting bolts (2EA).
TORQUE: 50 - 65 Nm (500 - 650 kgf.cm, 36.2 - 47.0 ft. lbs.)
4. Apply grease on the threaded part of the bolts (B-4EA) which connect the drive plate with the torque converter and tighten them.
TORQUE: 46 - 53 Nm (460 - 530 kgf.cm, 33.3 - 38.3 ft. lbs.) - B
5. Install the starter.





6. Tighten the transaxle insulator mounting bolt (A).





7. Tighten the transaxle upper mounting bolts (A).
8. Lifting up the sub frame with a jack, tighten the steering column bolt.
9. Tighten the sub frame mounting bolts.
10. Install the lower arm assembly and the steering bar tie rod mounting bolts.
11. Install the front exhaust pipe.





12. Clamp the power steering hose (A).

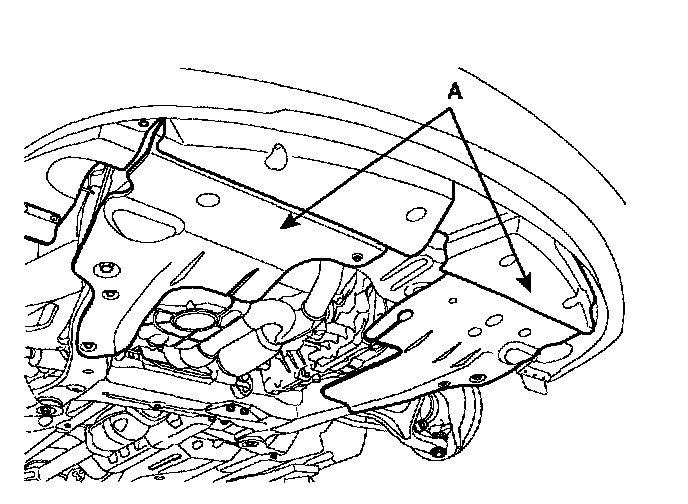

13. Install the under cover (A).
14. Connect the transaxle wire harness connectors.

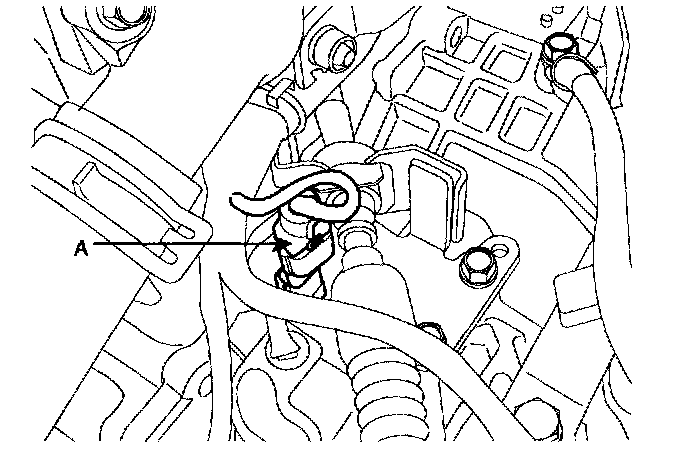

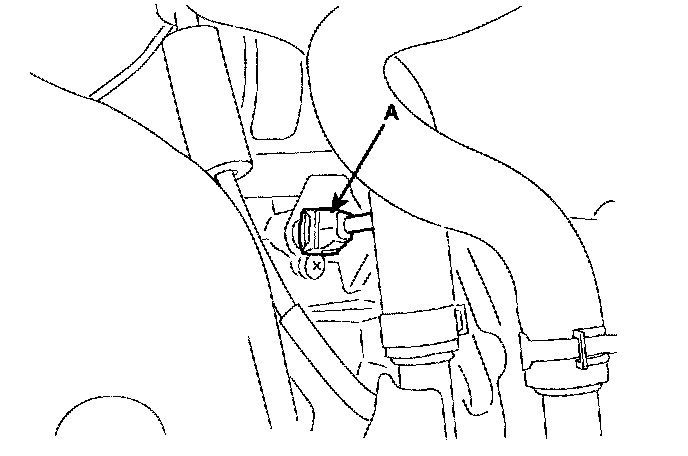

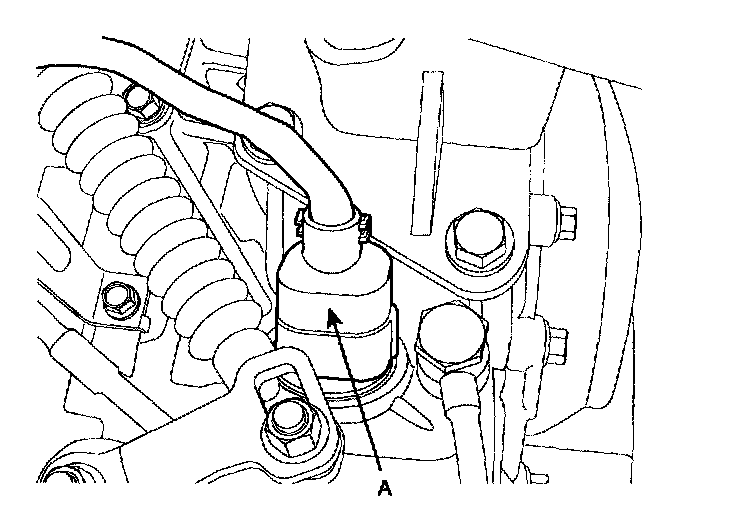

1) Connect the solenoid valve connector (A).

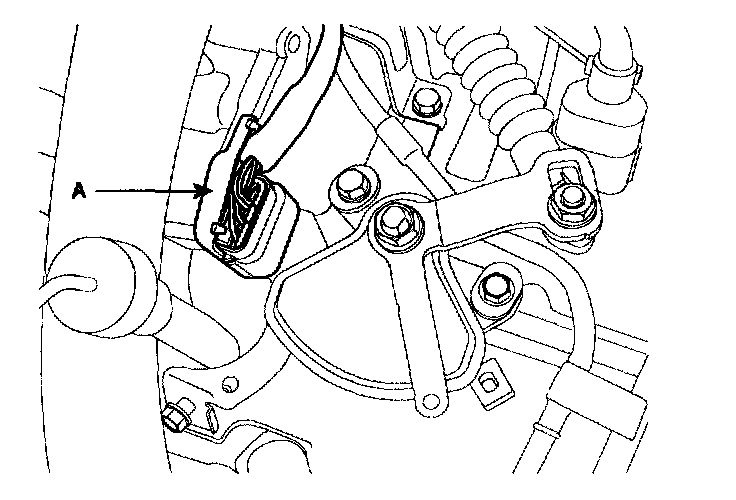

2) Connect the inhibitor switch connector (A).

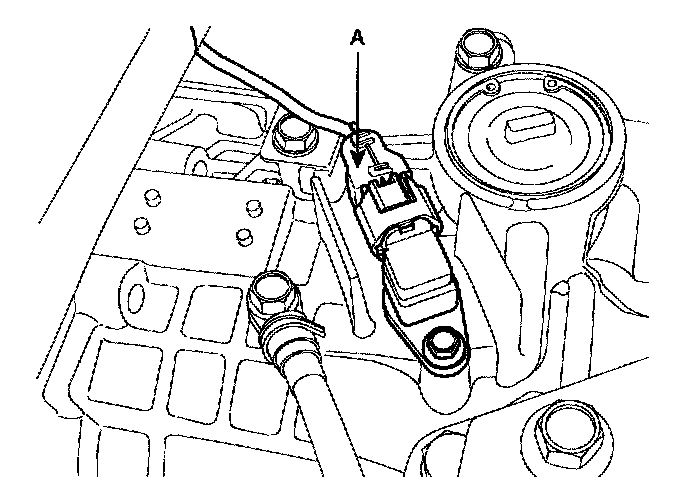

3) Connect the input speed sensor connector (A).





4) Connect the output speed sensor connector (A).





5) Connect the vehicle speed sensor connector (A).

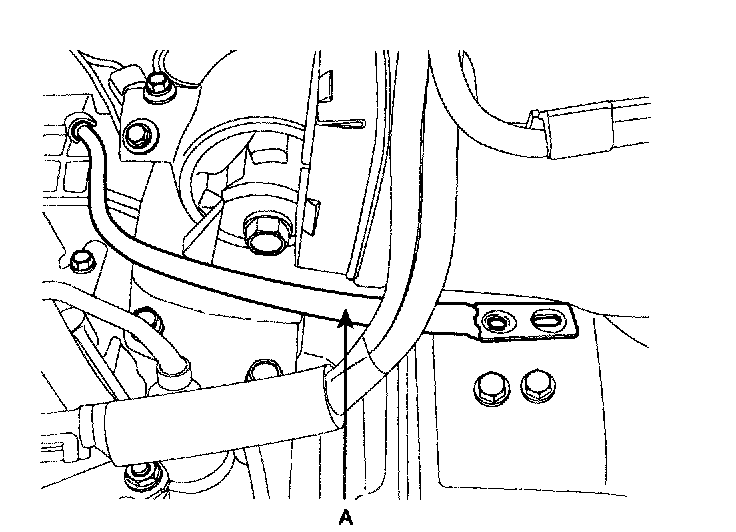

15. Connect the ground wire (A).

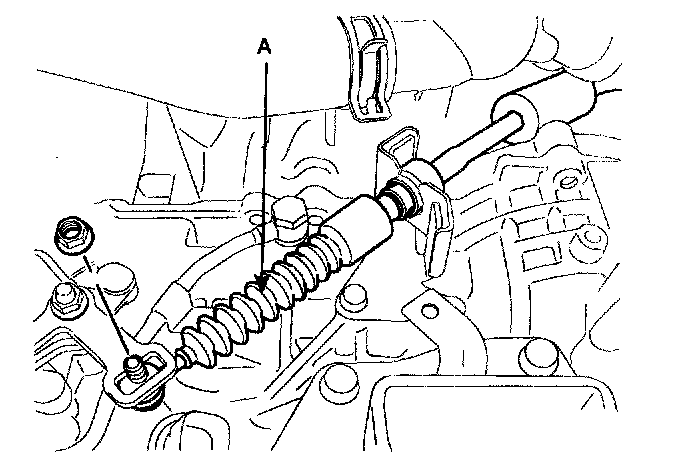

16. Connect the control cable (A) by installing the nut.

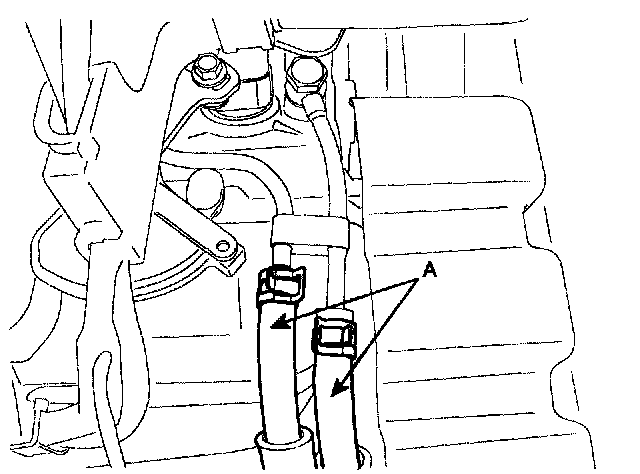

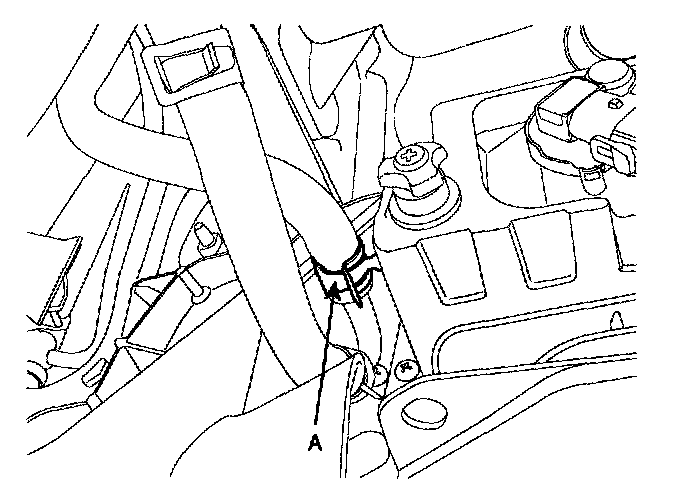

17. Clamp the transaxle oil cooler hoses (A).

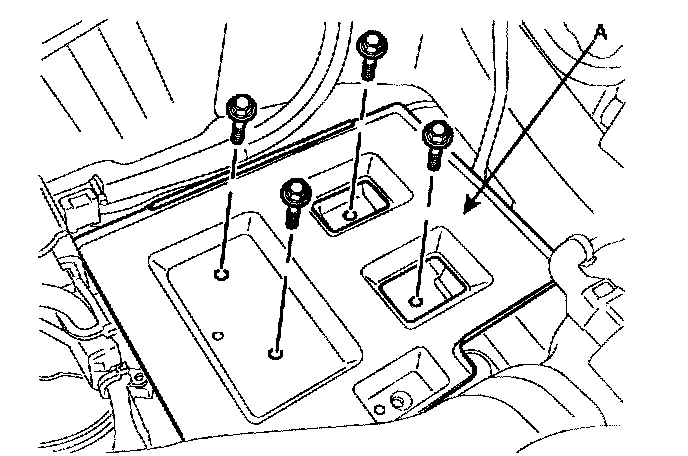

18. Install the battery tray (A).

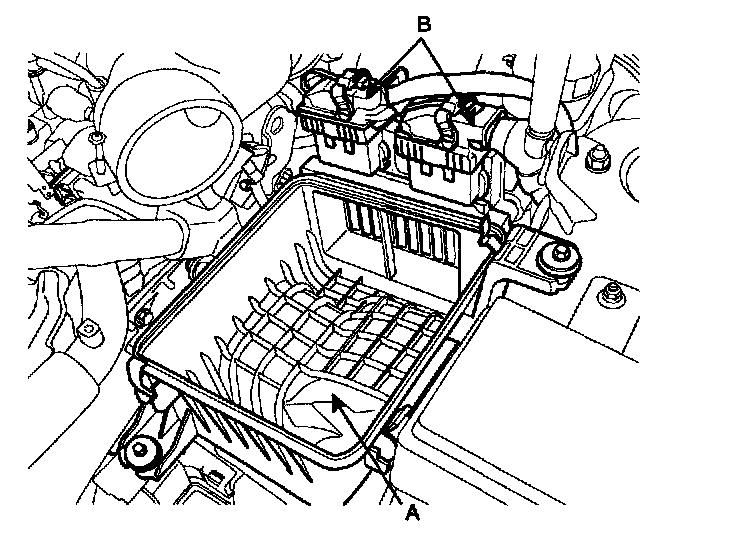

19. Install the air cleaner under body (A) and connect the PCM connectors (B).

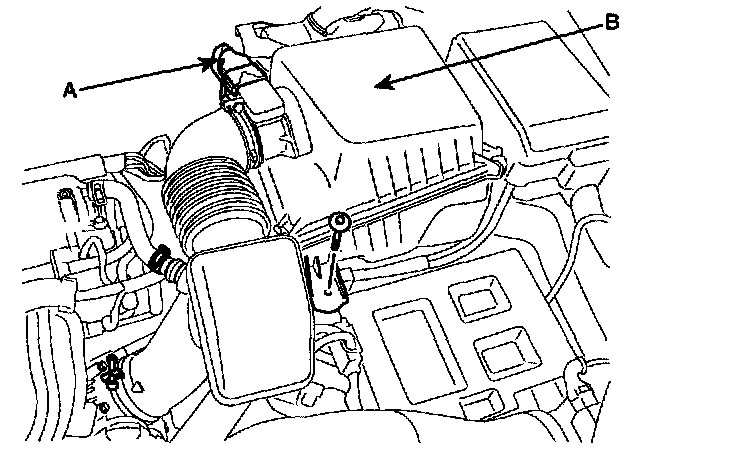

20. Reassemble the air cleaner filter, install the air cleaner upper body (B) and connect the air flow sensor connector (A).

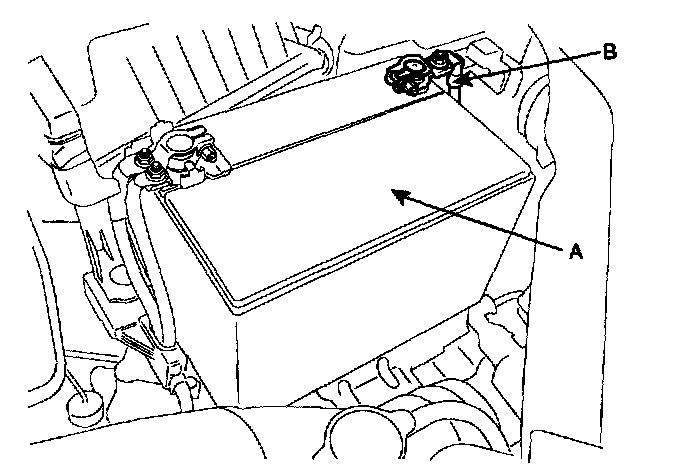

21. After installing the battery (A), connect the positive terminal (B) to the battery.

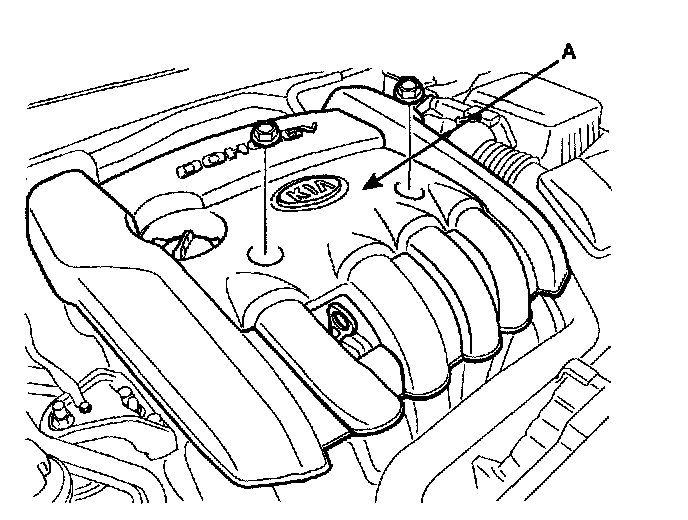

22. Install the engine cover (A).

NOTE:
^ Refill power steering fluid and bleed the power steering system.
^ Refill automatic transaxle fluid.

NOTE: When replacing the automatic transaxle, reset the automatic transaxle's values by using the High-Scan Pro.





a. Connect the Hi-Scan Pro connector to the data link connector under the crash pad and power cable to the cigar jack under the center facia.
b. Turn the ignition switch on and power on the Hi-Scan Pro.
c. Select the vehicle's name.

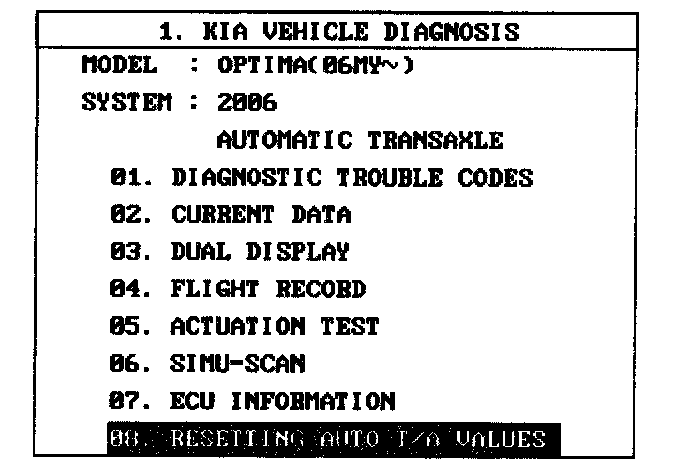

d. Select 'AUTOMATIC TRANSAXLE'.

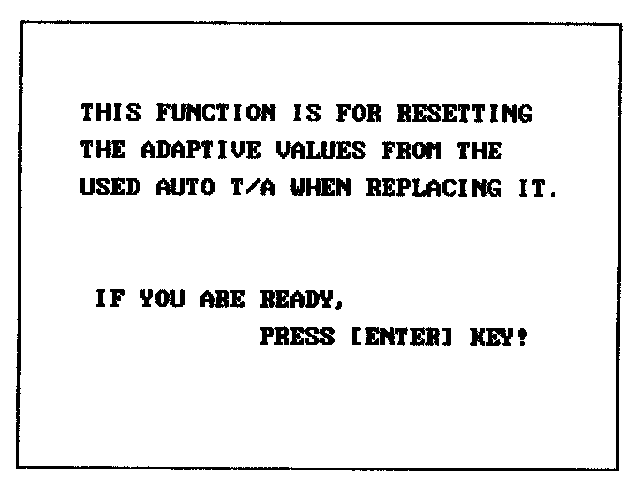

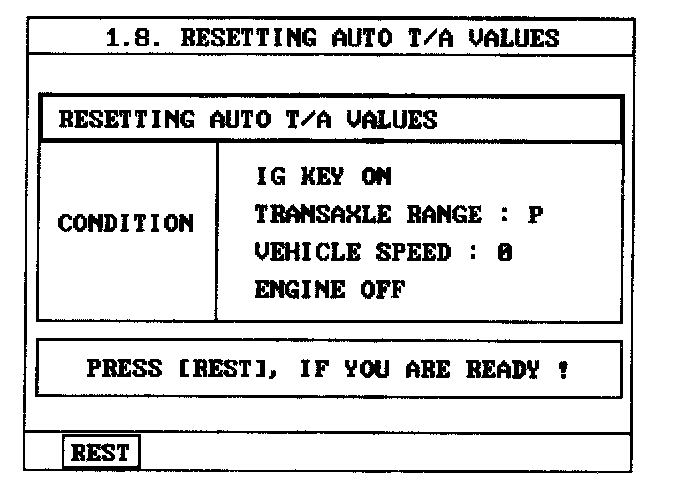

e. Select 'RESETTING AUTO T/A VALUES' and perform the procedure.





f. Perform the procedure by pressing F1 (REST).
