Home >> Kia >> 2006 >> Optima V6-2.7L VIN 4 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Heating and Air Conditioning >> System Specifications

System Specifications

Specifications:

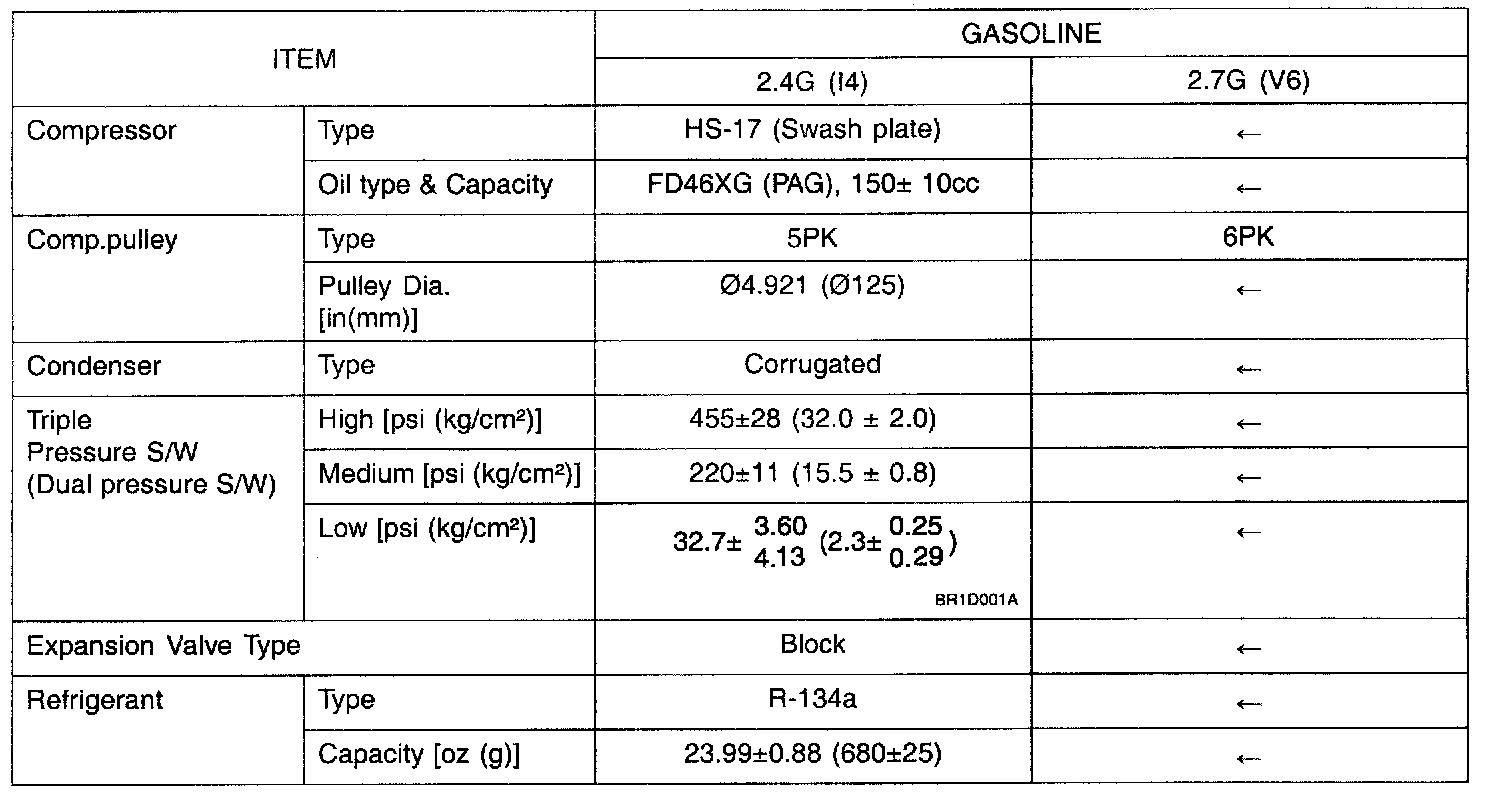

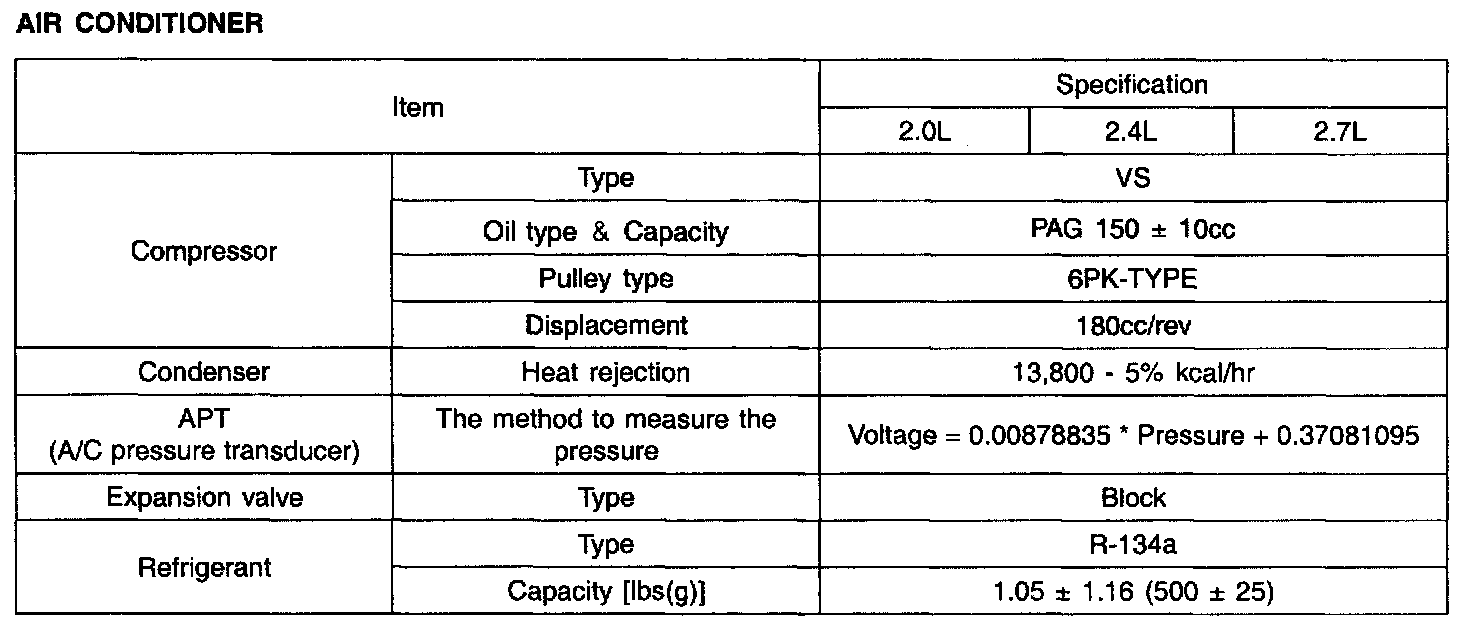

Air Conditioner - Specification:

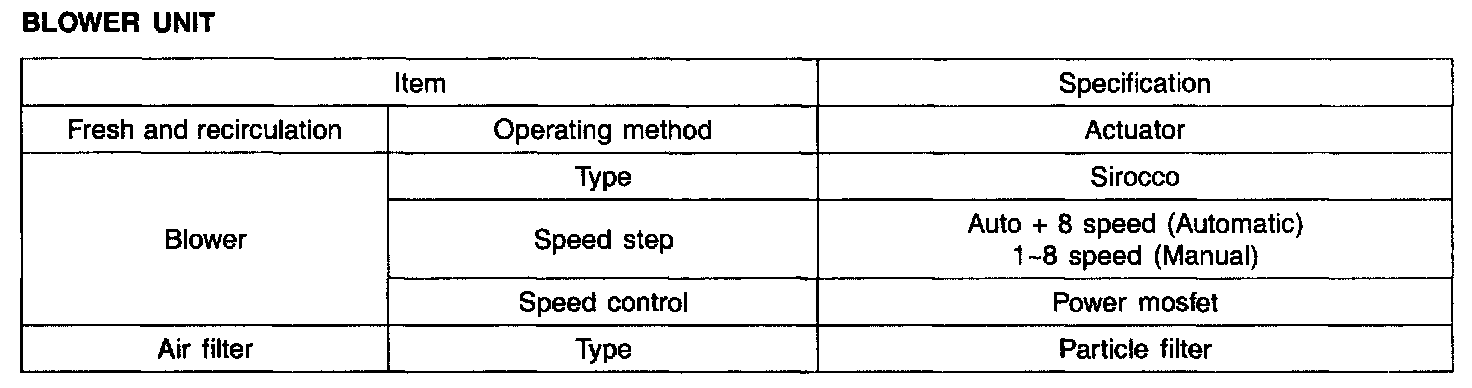

Blower Unit - Specification:

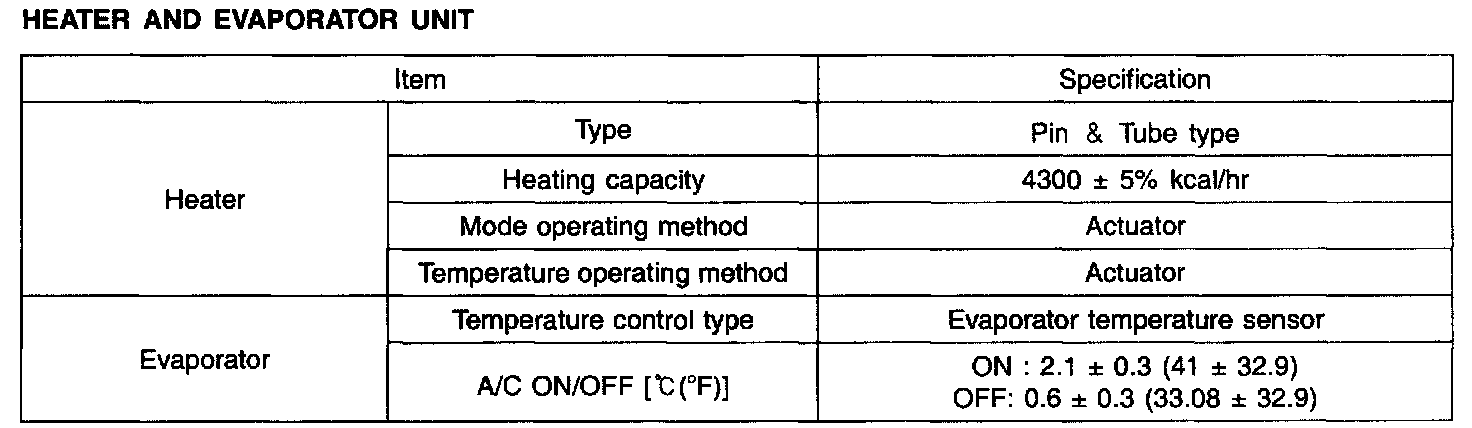

Heater And Evaporator Unit - Specification:
