Dimensions Projected

DIMENSIONS PROJECTED

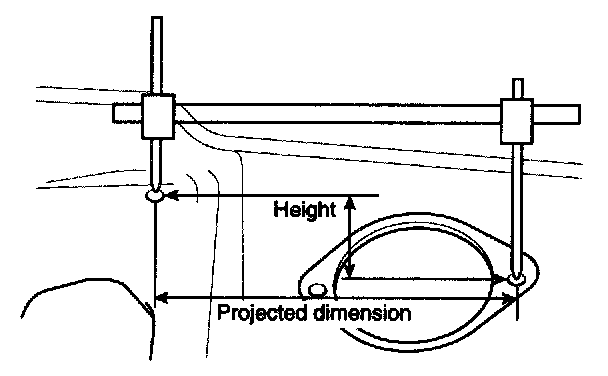

1. These are the dimensions measured when the mea- surement points are projected from the vehicle's surface, and are the reference dimensions used for used for body alterations.




2. If the length of the tracking gauge probes is adjustable, measure it by lengthening one of two probes as long as the different value in height of the two surface.
