Wiper Blade Heater Switch: Testing and Inspection
WINDSHIELD DEICER SWITCHINSPECTION
1. Disconnect the negative (-) battery terminal.

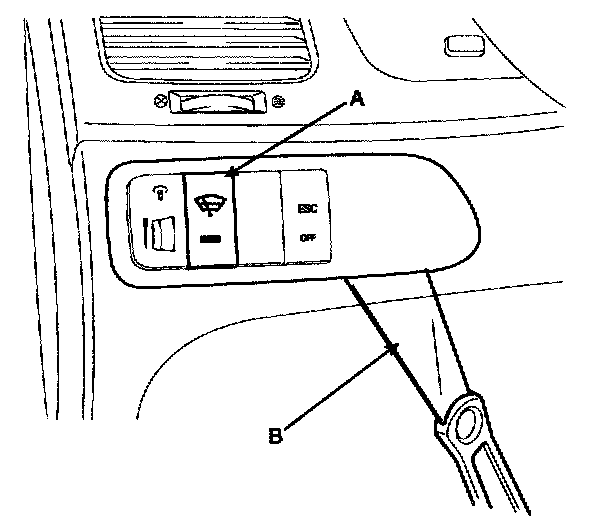

2. Remove the power crash pad switch (A) from the side crash pad cover by using the scraper (B) and then disconnect the connectors.

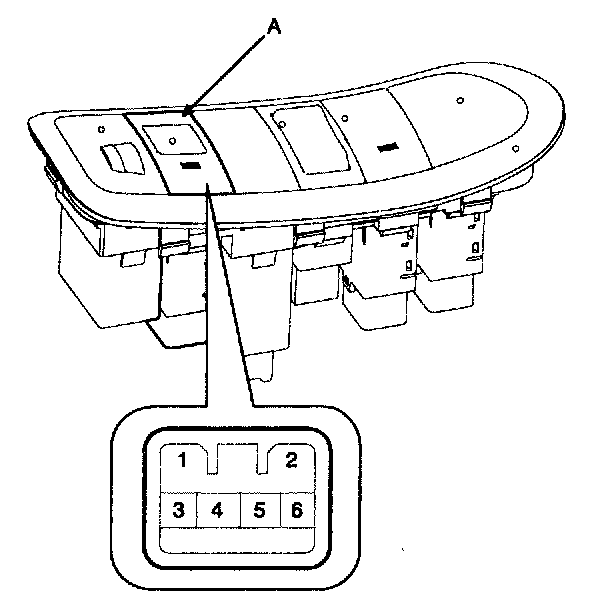

3. Remove the windshield deicer switch (A) from lower crash pad switch.

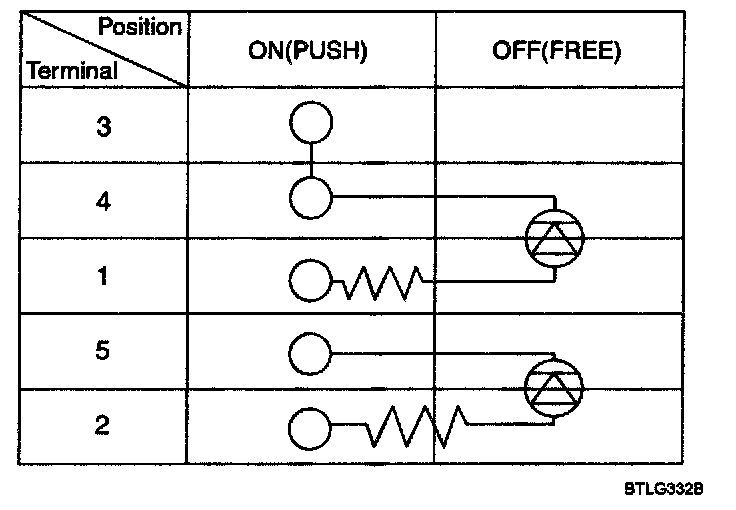

4. Using an ohm meter, inspection the continuity between the terminals after removing to the switch connector.
