Clutch Pedal Position Sensor / Switch: Adjustments
IGNITION LOCK SWITCH1. Disconnect 2P-connector from a ignition lock switch.
2. Disconnect the ignition lock switch. (if you can install a tester with the switch fixed, this step can be omissible)

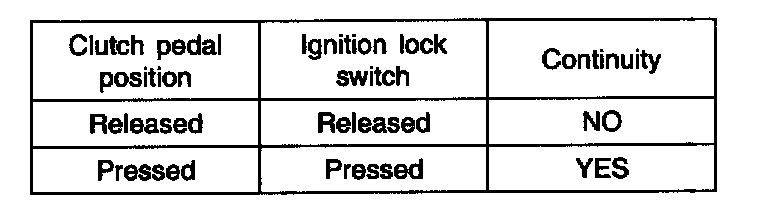

3. Check for continuity between terminals.
If there is difference between what tested and the table above, replace the ignition lock switch with a new one.
If not, install the ignition lock switch and adjust the clutch pedal.
TORQUE: 7.8 - 9.8 Nm (80 - 100 kgf.cm, 5.8 - 7.2 ft. lbs.)
