Combination Switch: Service and Repair

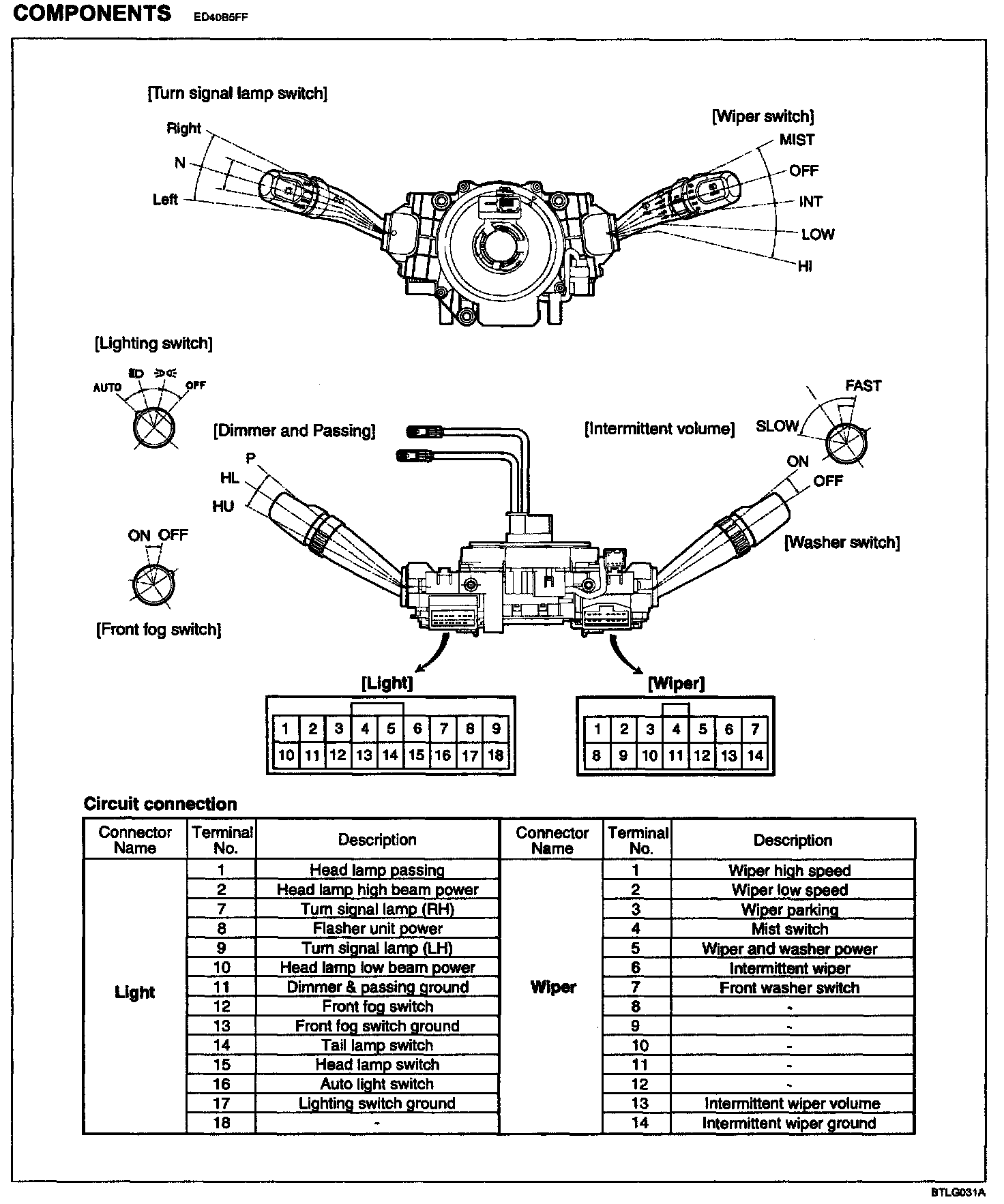

Multi Function Switch - Components:

MULTI FUNCTION SWITCH

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

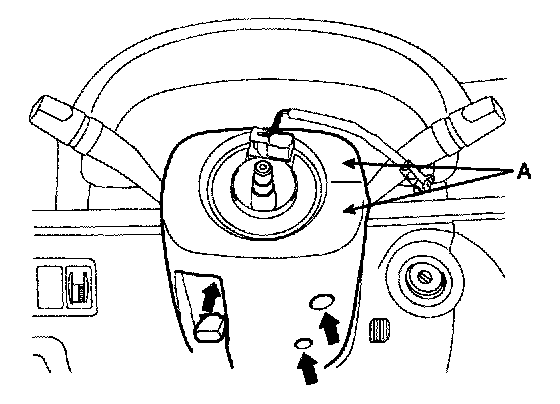

2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

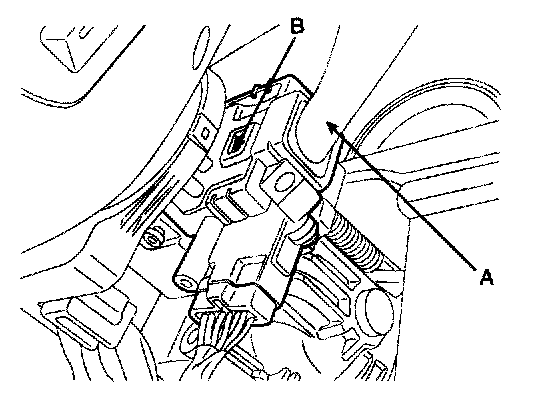

3. Remove the light switch (A) by pushing the lock pin (B) after disconnecting the connector.

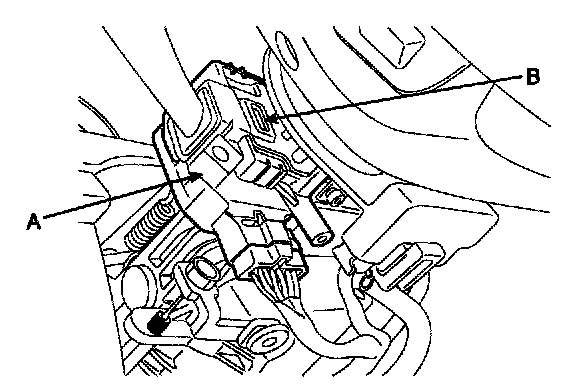

4. Remove the wiper switch (A) by pushing the lock pin (B) after disconnecting the connector.
5. Installation is the reverse of removal.

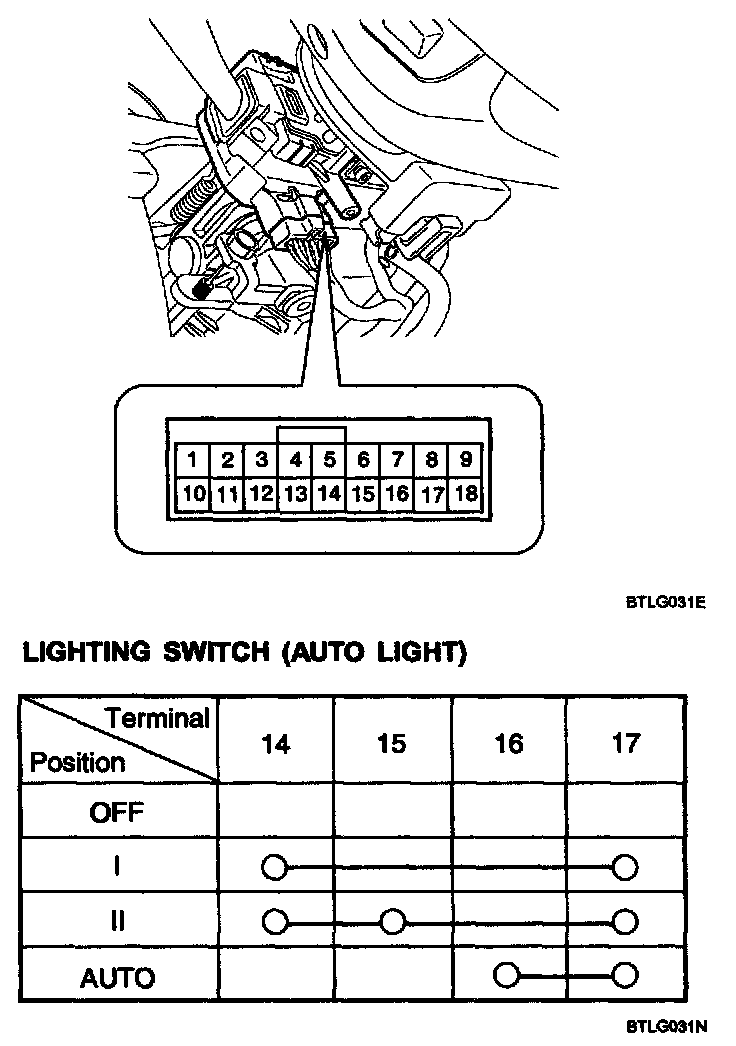

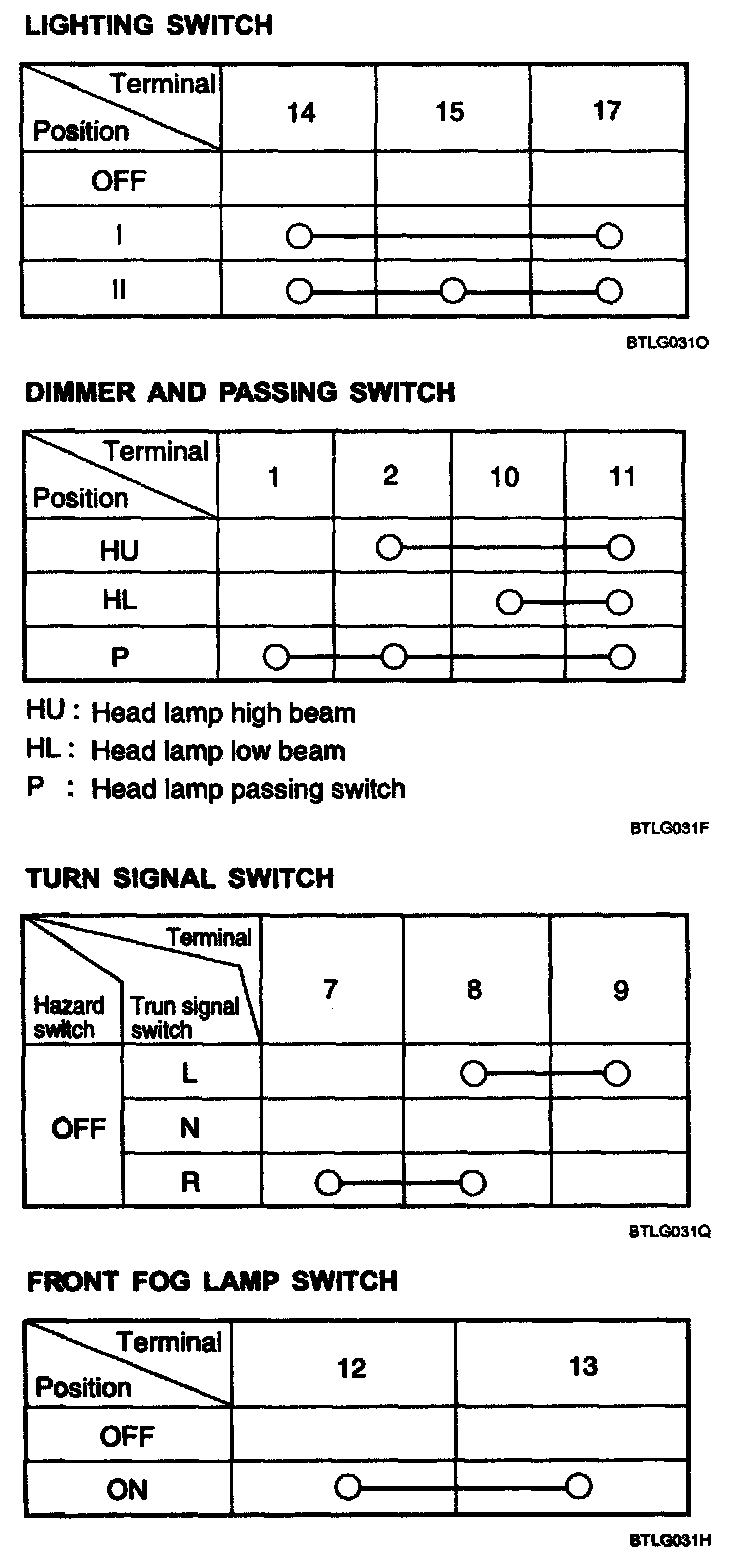

LIGHTING SWITCH INSPECTION
With the multi function switch in each position, make sure that continuity exists between the terminals shown. If continuity is not as specified, replace the multi-function switch.

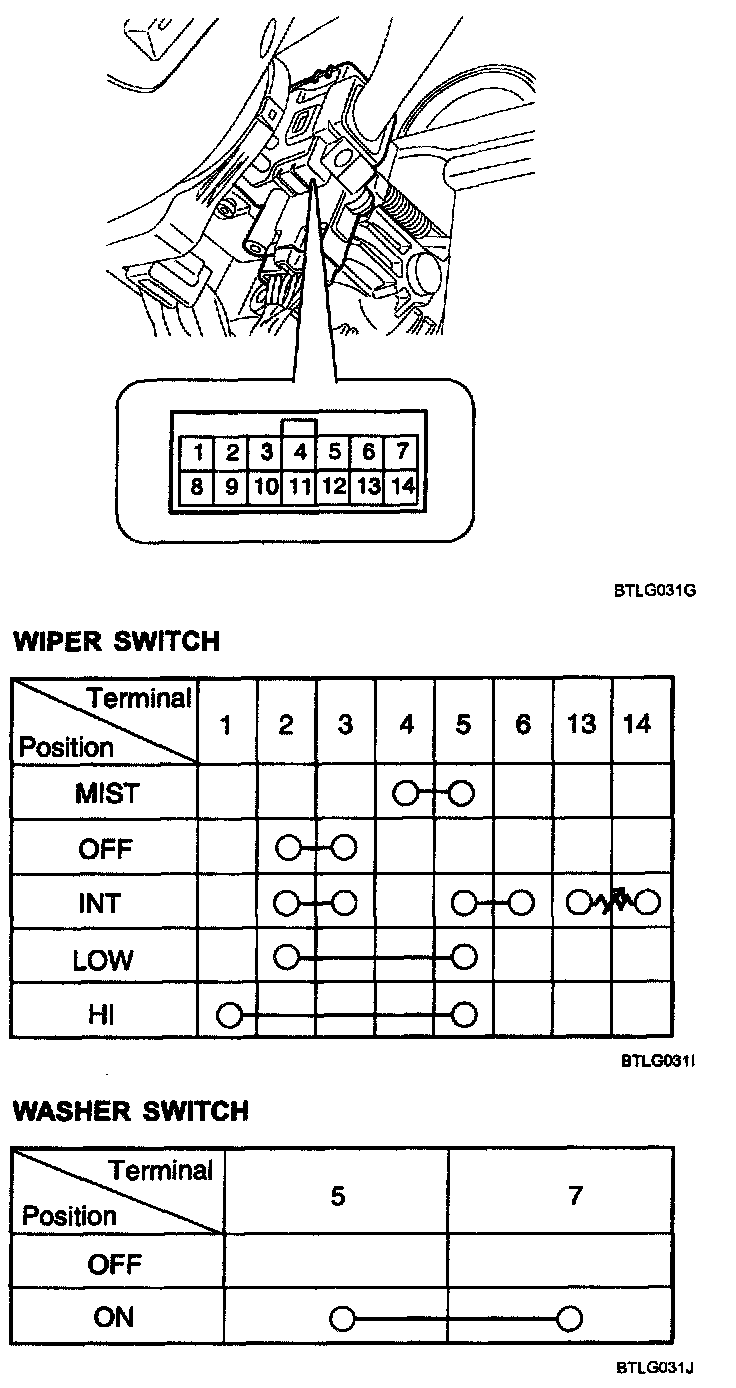

WIPER AND WASHER SWITCH INSPECTION
With the multi function switch in each position, make sure that continuity exists between the terminals shown. If continuity is not as specified, replace the multi-function switch.
