Brake Light Switch: Adjustments
STOP LAMP SWITCH1. Disconnect the 2P connector from the stop lamp switch.
2. Remove the stop lamp switch.

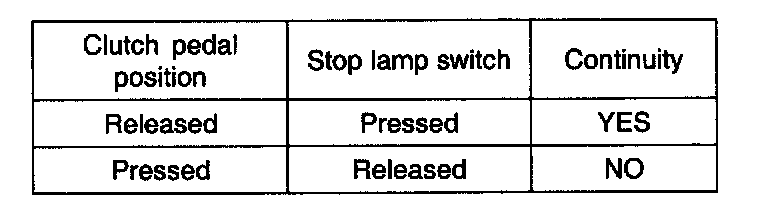

3. Check for continuity between the terminals according to the table.
If the continuity is not as specified, replace the stop lamp switch.
If OK, install the stop lamp switch and adjust the pedal height.
TORQUE: 7.8 - 9.8 Nm (80 - 100 kgf.cm, 5.8 - 7.2 ft. lbs.)
