Rear

REAR WHEEL SPEED SENSOR

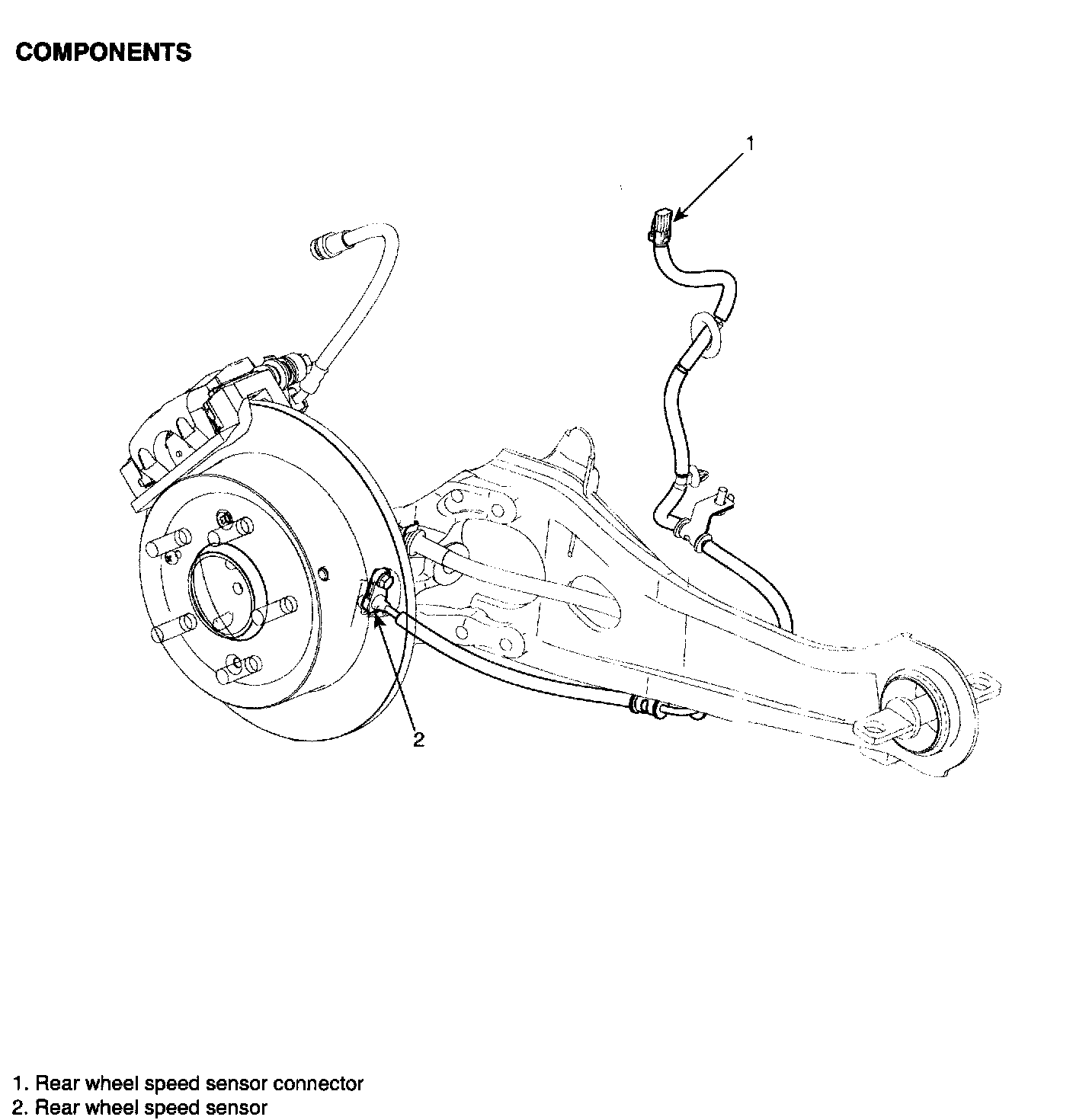

COMPONENTS:

REMOVAL





1. Remove the rear wheel speed sensor mounting bolt (A).

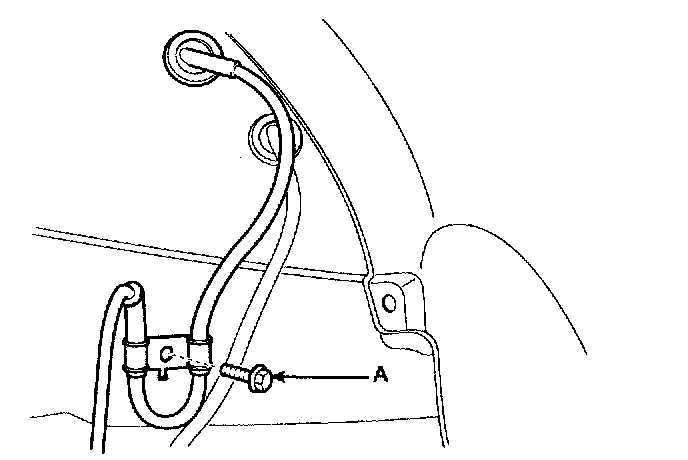

2. Remove the sensor cable bracket mounting bolt (A).
3. Disconnect the rear wheel speed sensor connector.
