Horn: Service and Repair
HORNS
REPLACEMENT
1.
Remove the front bumper.
2.

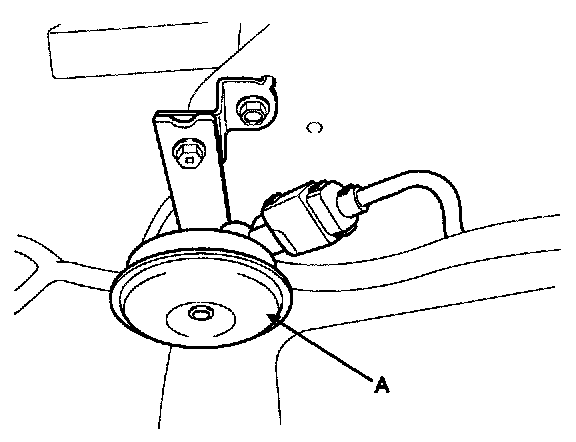

Remove the bolt and disconnect the
horn
connector, then remove the horn (A).
3.
Installation is the reverse of removal.
