Body Electrical System

OVERHEAD CONSOLE LAMP

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

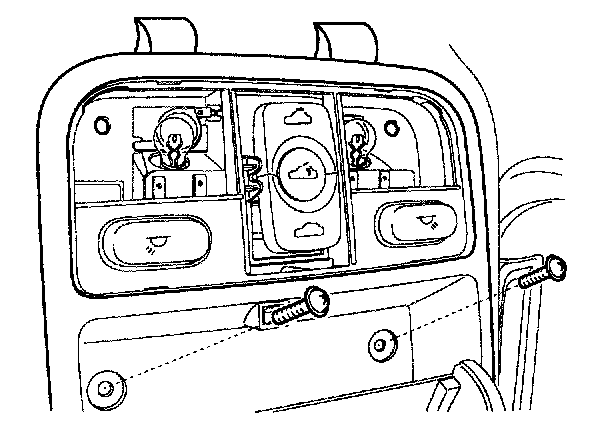

2. Open the sunglass case cover then remove the 2 screws holding the overhead console.
3. Disconnect the connector (8P) of sunroof switch lamp then remove the overhead console assembly from the headliner.
4. Installation is the reverse of removal.
