Body (Interior and Exterior)

OVERHEAD CONSOLE LAMP REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.

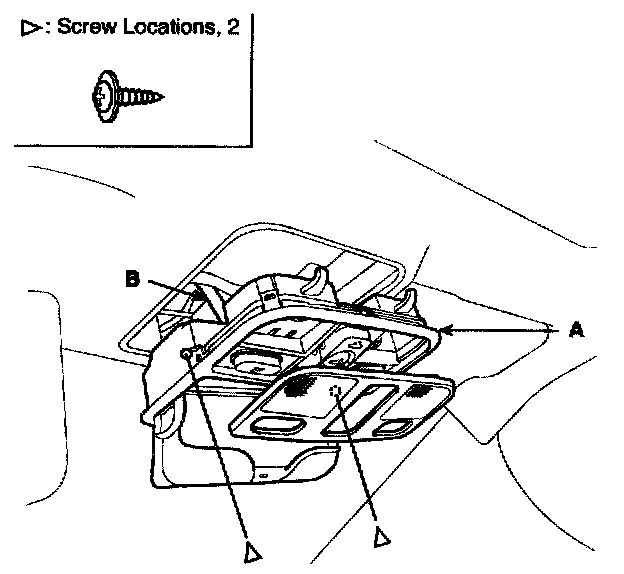

1. Remove the overhead console.
- Remove the screw.
- Pull out the roof console (A).
- Disconnect the connector (B).

2. Installation is the reverse of removal.
