Instrument Cluster

INSTRUMENT CLUSTER

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

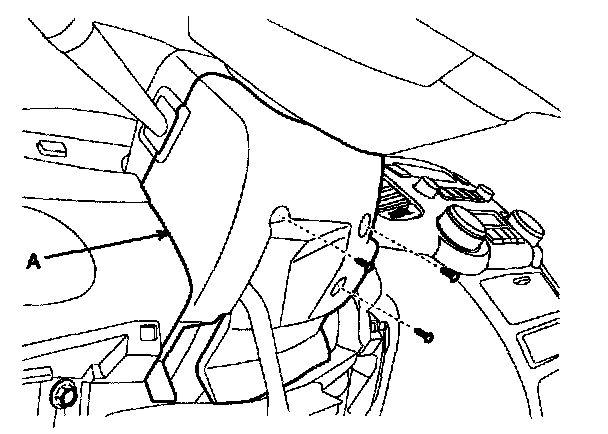

2. Remove the shroud (A).

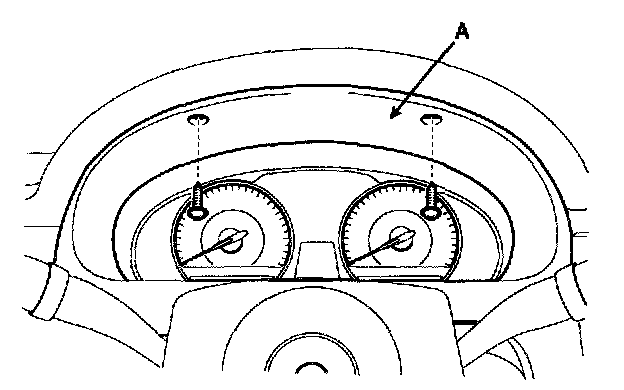

3. Remove the cluster housing (A) after removing 2 screws.

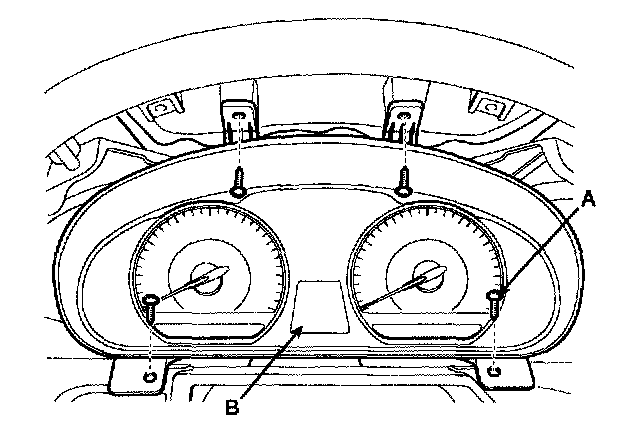

4. Remove the cluster (B) from the housing after removing 4 screws (A).

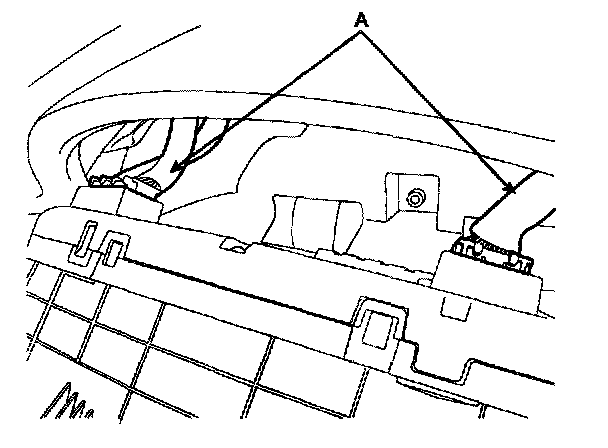

5. Disconnect the cluster connector (A) and then remove the cluster.
6. Installation is the reverse of removal.
