Automatic A/C

CONTROL PANEL

REPLACEMENT
1. Disconnect the negative (-) battery terminal.




2. Remove the ashtray (A).




3. Remove the center facia lower panel (A) by pulling it using a screw driver (-).

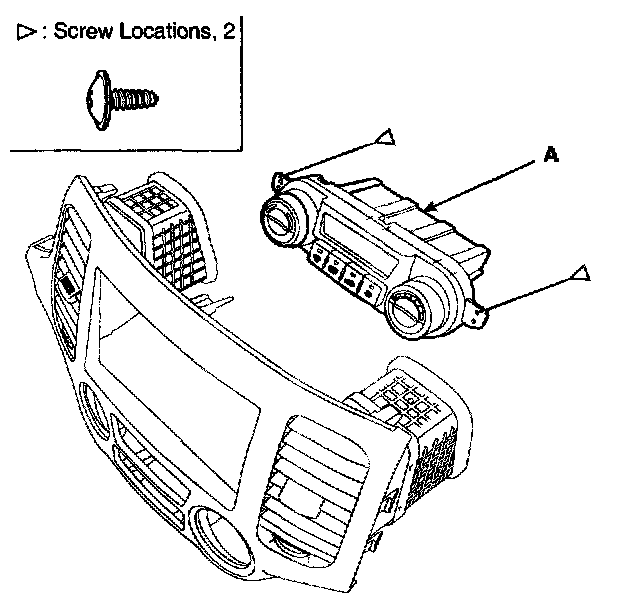

4. Remove the heater & A/C controller (A) after loosening 2 screws.
5. Installation is the reverse order of removal.
