Exhaust Manifold: Service and Repair

INTAKE AND EXHAUST SYSTEM

COMPONENTS:

REMOVAL

EXHAUST MANIFOLD ASSEMBLY
1. Remove the under cover.

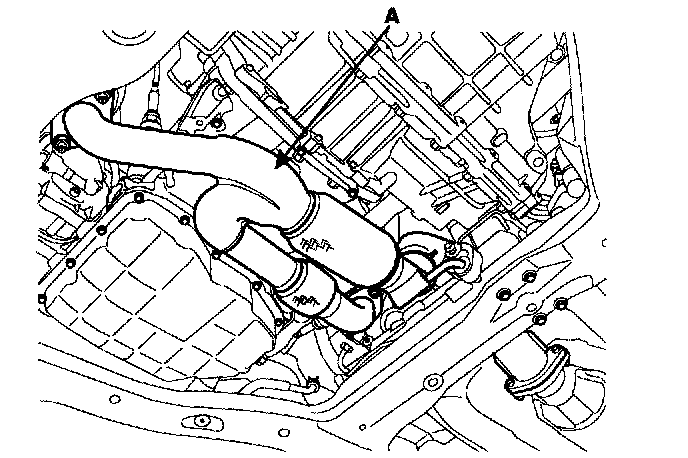

2. Remove the front muffler (A).

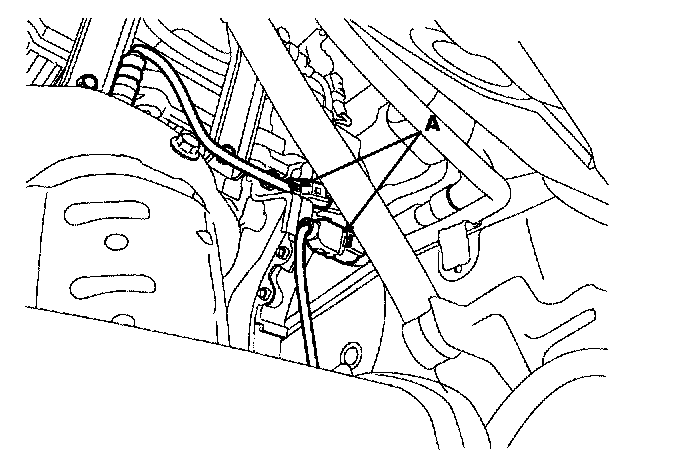

3. Disconnect the oxygen sensor connectors (A).
4. Remove the oil level gauge.
5. Remove the heat protector.
6. Remove the exhaust manifold assembly.

INSTALLATION

EXHAUST MANIFOLD ASSEMBLY
1. Install the exhaust manifold assembly with a new gasket.
Tightening torque 29.4 - 34.3 Nm (3.0 - 3.5 kgf.m, 21.7 - 25.3 ft. lbs.)
2. Install the heat protector.
Tightening torque 16.7 - 21.6 Nm (1.7 - 2.2 kgf.m, 12.3 - 15.9 ft. lbs.)
3. Install the front muffler assembly.
Tightening torque 39.2 - 58.8 Nm (4.0 - 6.0 kgf.m, 28.9 - 43.4 ft. lbs.)
4. Connect the oxygen sensor connector.
5. Install the under cover.
