Home >> Kia >> 2006 >> Optima V6-2.7L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram

System Diagram

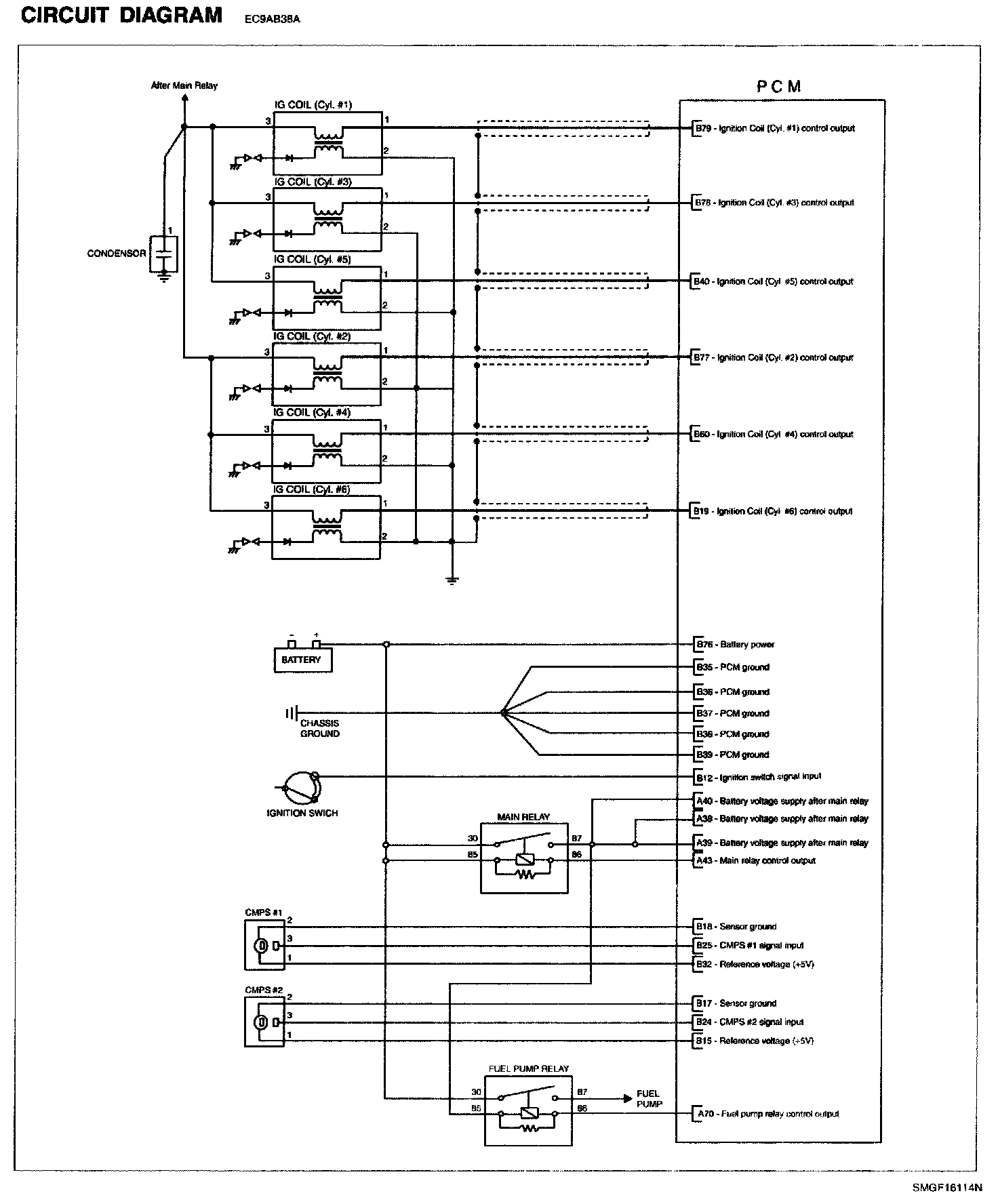

Circuit Diagram Part 1:

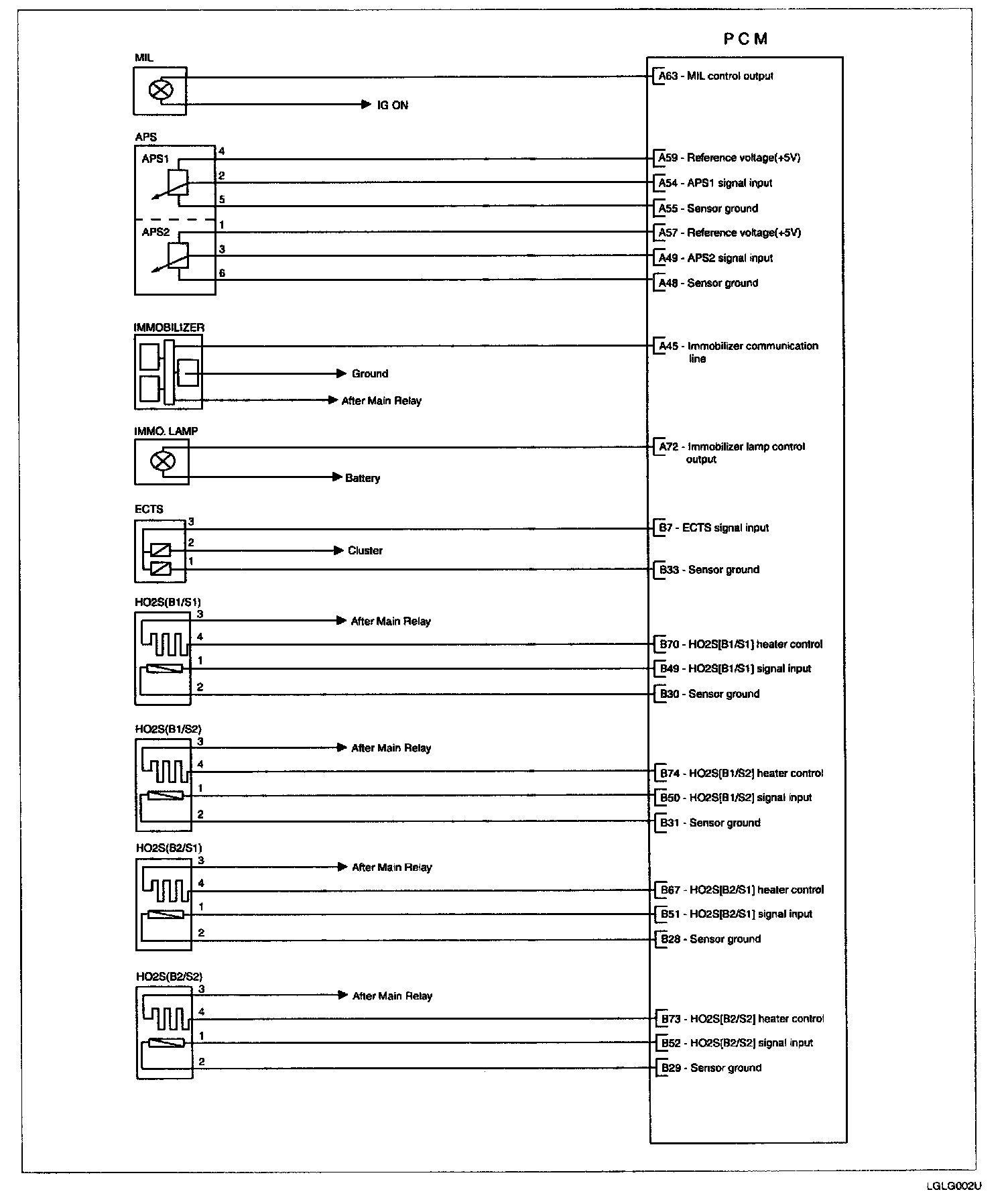

Circuit Diagram Part 2:

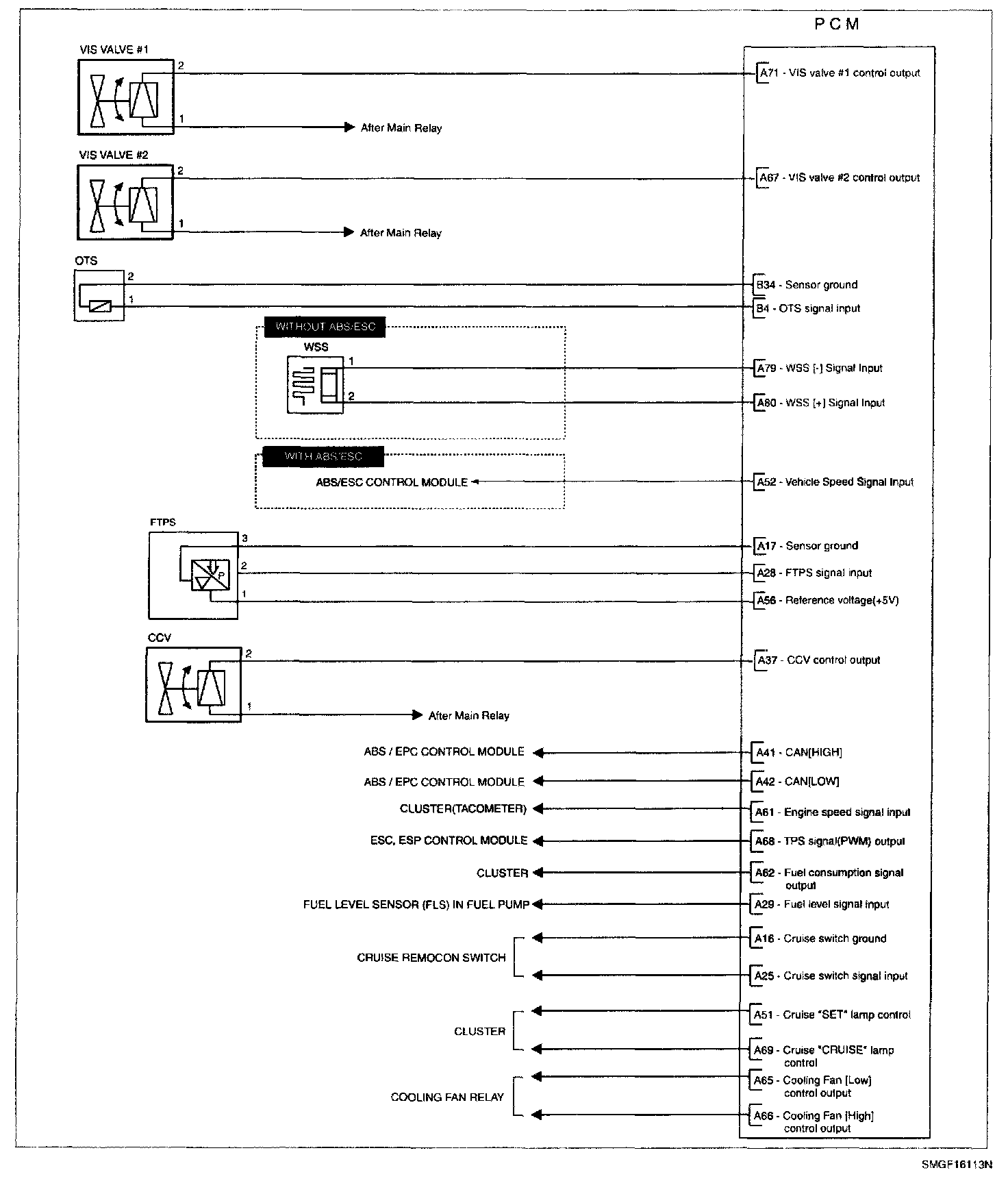

Circuit Diagram Part 3:

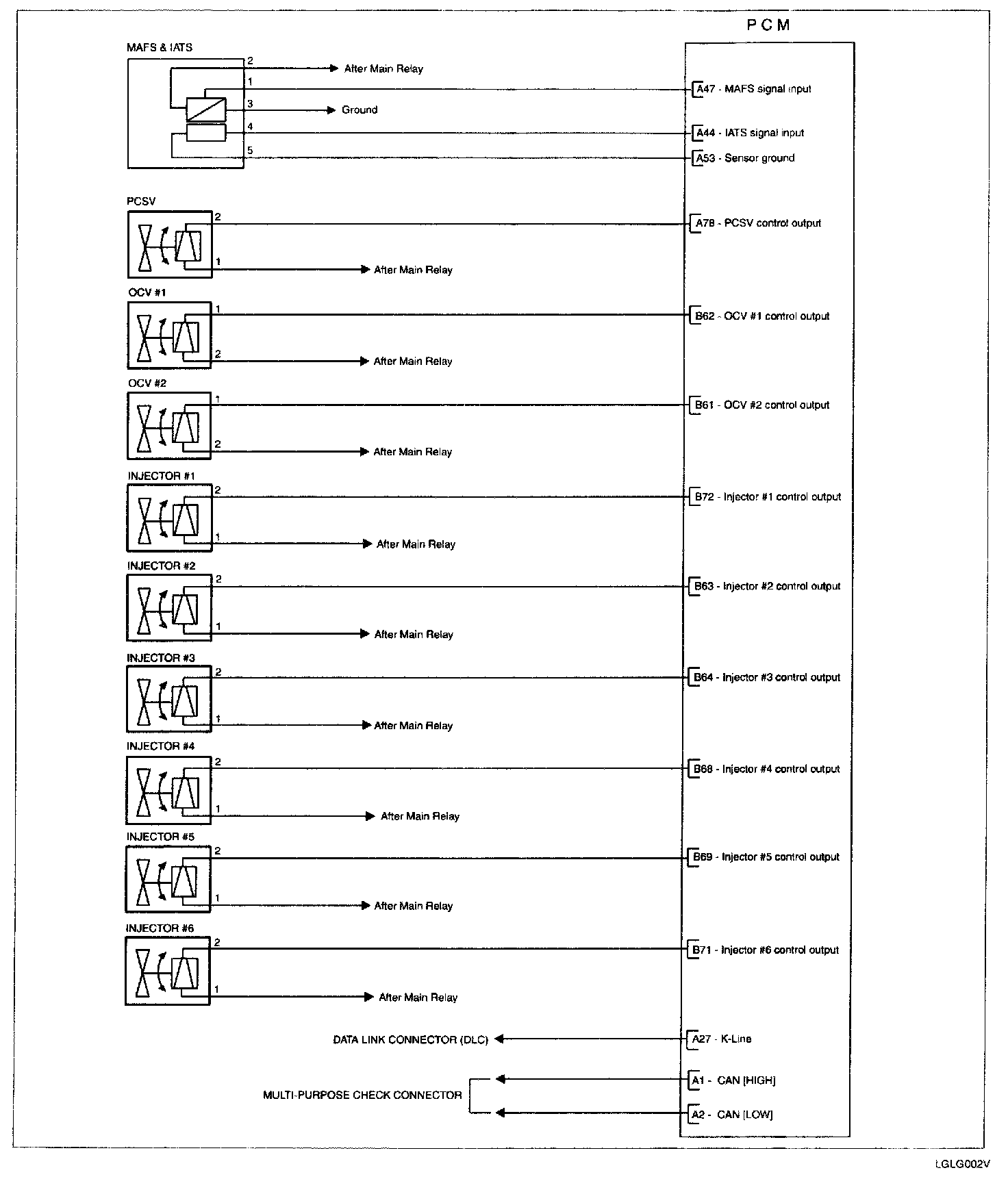

Circuit Diagram Part 4:

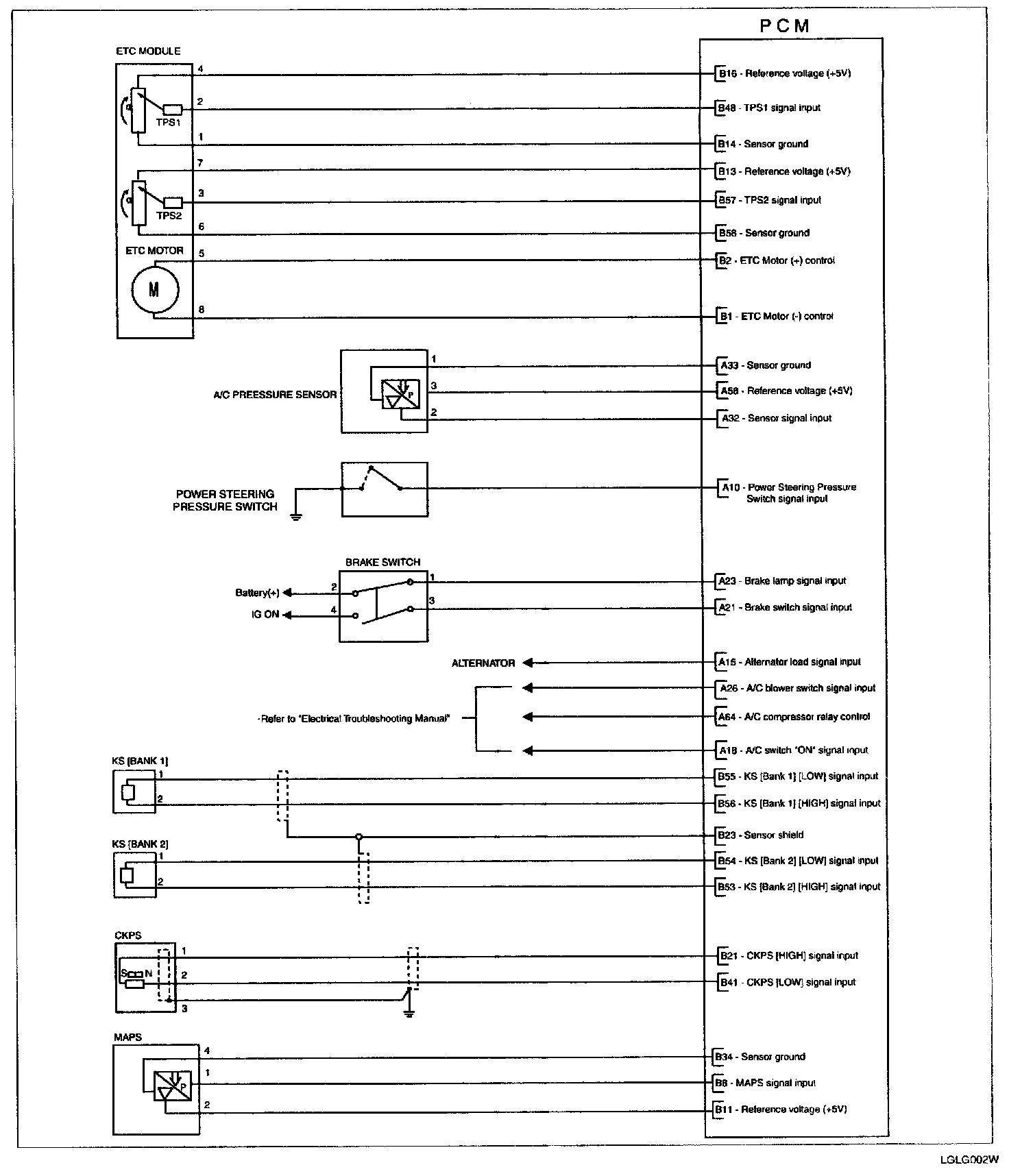

Circuit Diagram Part 5:
