Home >> Kia >> 2006 >> Optima V6-2.7L VIN 4 >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Control Module Pinout Values - ABS

Control Module Pinout Values - ABS

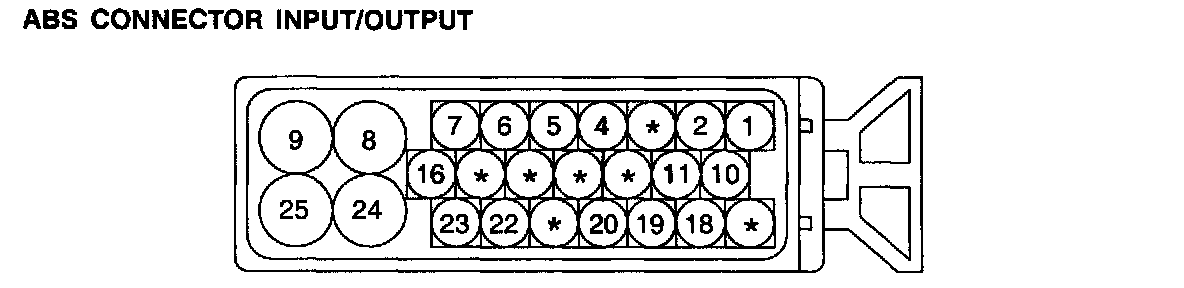

ABS CONNECTOR INPUT/OUTPUT Part 1:

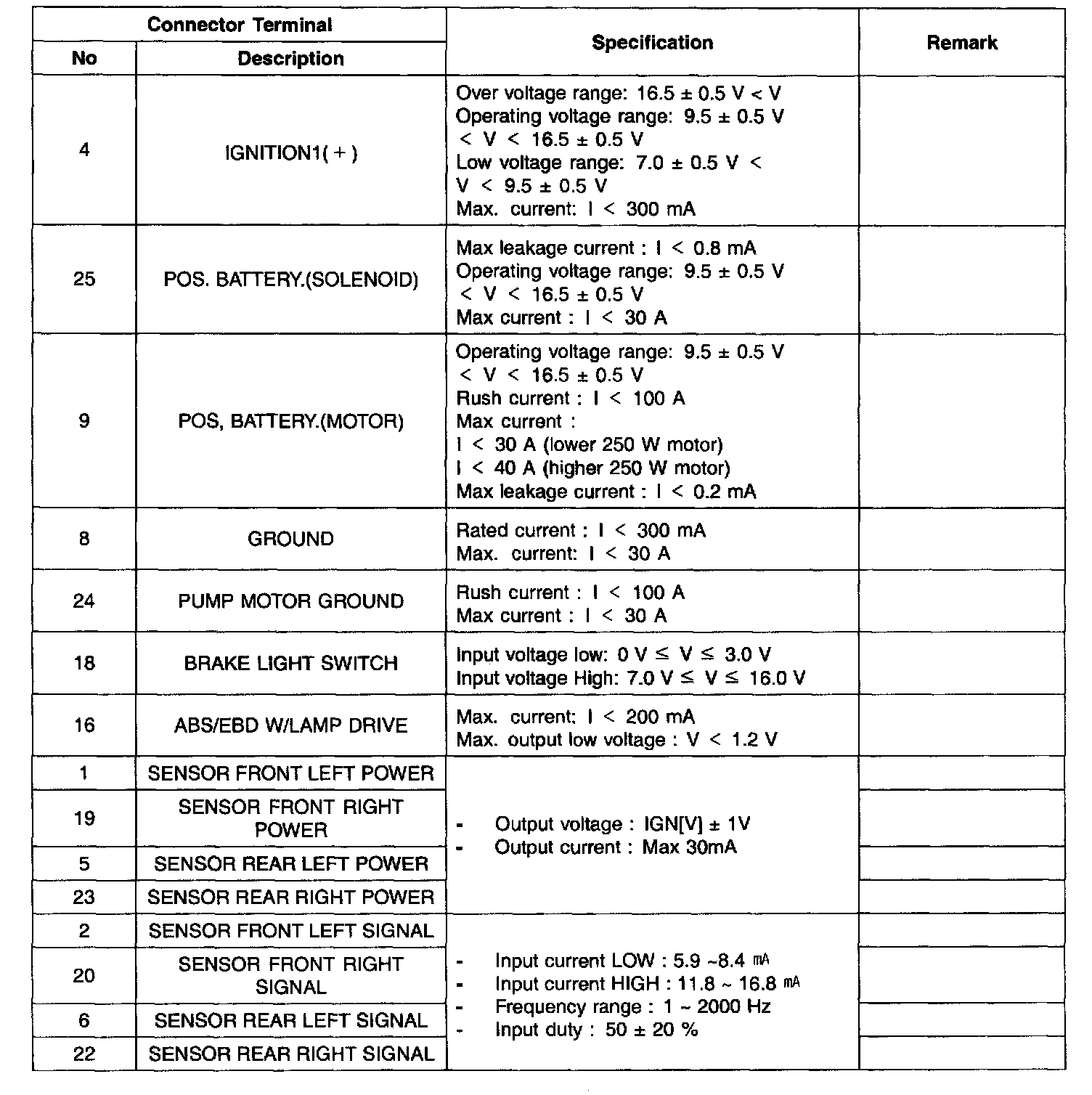

ABS CONNECTOR INPUT/OUTPUT Part 2:

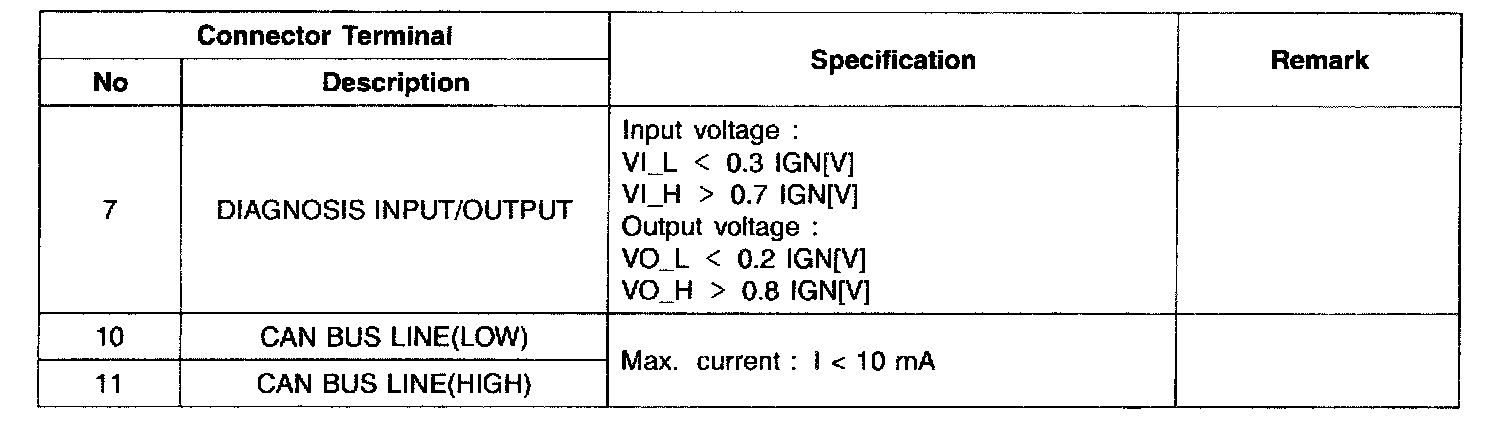

ABS CONNECTOR INPUT/OUTPUT Part 3:
